LEEB leeb530 Digital Ultrasonic Flaw Detector Zero interface incidence 0~1000mm

leeb530

Digital Ultrasonic Flaw Detector

Scanning range 0~1000mm, vertical Linearity < 3%, localizable and qualitative defects, Automatic calibration, Linear dispersion automatic generation, unlimited sampling points, four probe Operating Modes.

Overview

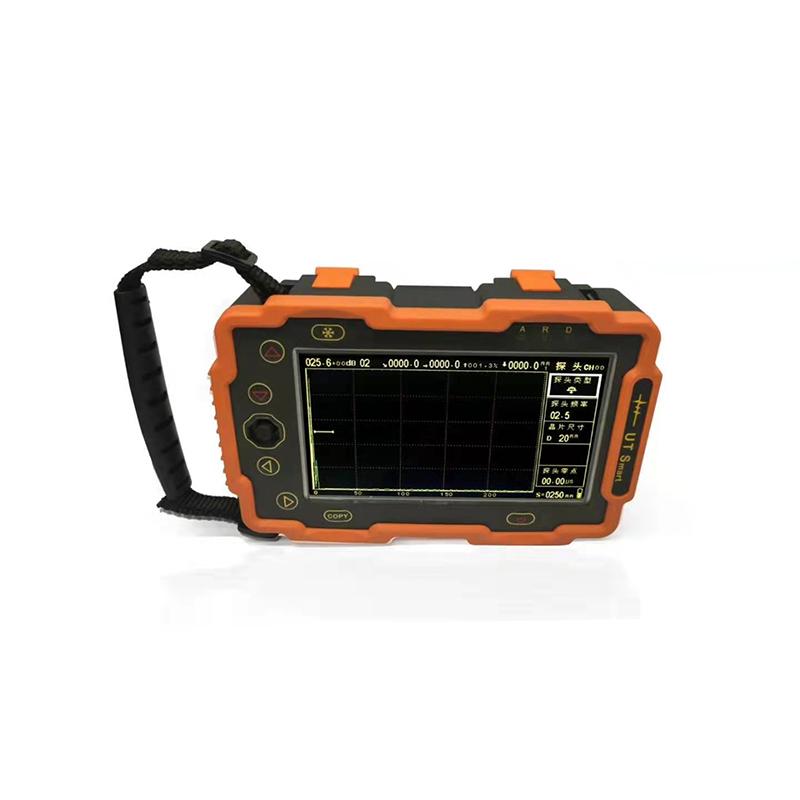

UT Smart leeb530 digital ultrasonic flaw Detector can quickly, conveniently, without damage, and accurately detect, locate, evaluate and diagnose various defects inside the workpiece such as cracks, welds, pores, trachoma, inclusions, folds, etc. It is widely used in electric power, Petrochemical, boiler pressure vessels, steel structures, military, aerospace, railway transportation, automobiles, machinery and other fields.

Product Features

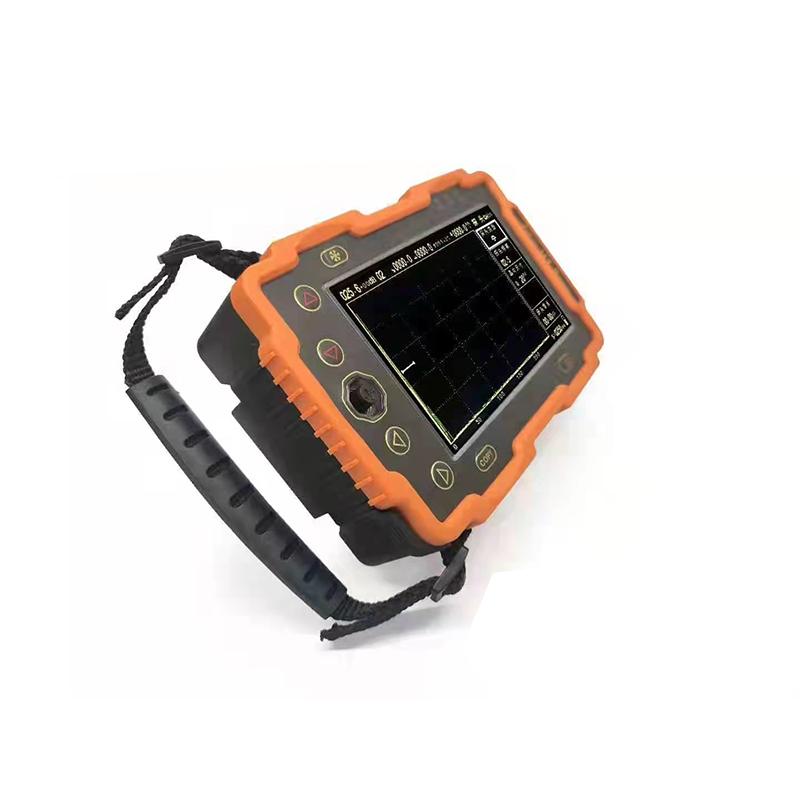

Small, lightweight and portable, suitable for field and aerial work.

Detection range: zero interface incidence 0~1000;

Automated instrument calibration, which can measure material thickness and material sound velocity;

Menu operation mode, direct explicit operation prompt, concise and clear, allowing the operator to quickly master the operation of the instrument;

Gate alarm: gate position, gate width and gate height can be adjusted arbitrarily, the gate can choose to set incoming wave alarm or loss wave alarm, and the gate beeps;

Defect positioning: real-time display of defect level, depth (vertical), and sound path position, which is convenient for direct defect positioning;

Defect characterization: through the echo envelope waveform, it is convenient for manual judgment;

DAC/AVG: The curve is automatically generated, the sampling points are not limited, and can be compensated and corrected. The curve automatically floats with gain. AVG curves of any aperture can be displayed;

Waveform Freeze: Freeze the waveform displayed on the screen for defect analysis;

Plate thickness input: input the thickness of the workpiece, the defect instrument of the second wave and the third wave displays the actual depth of the defect, and prompts the waveform in real time for several waves;

Weld diagram: display the shape of the weld groove and the direction of the sound speed, and visually display the defect location;

Built-in standards: can freely set the flaw detection process standards of various industries to meet the flaw detection needs of various industries;

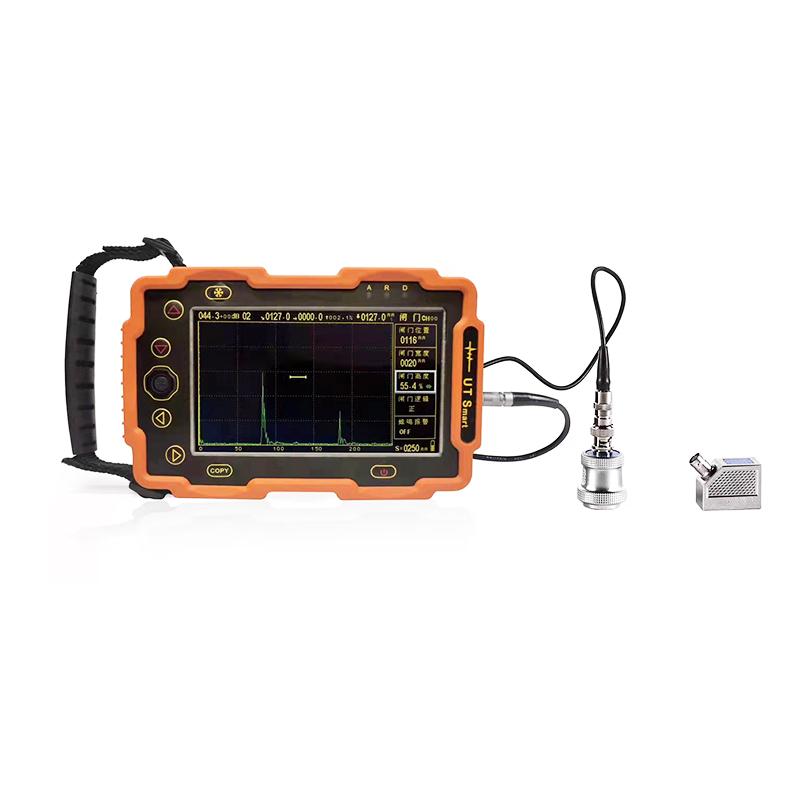

Probe Operating Mode: straight probe, oblique probe, dual crystal probe, penetration test;

Data storage: 16 sets of flaw detection parameter channels (by copying and storing files through playback, the parameter channels can be expanded to 300), the combined parameters of various probes and instruments can be adjusted in advance, and the flaw detection standards of various industries can be freely set; 300 flaw detection can be stored. Echo signals and parameters can be stored, read out and transmitted through the USB interface. Using computer client side software, flaw detection reports can be quickly and automatically generated;

Communication interface: USB2.0 high-speed communication transmission interface, safe, stable, reliable and fast.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
