LEEB leeb610A Portable Yoke Flaw Detector Magnetization Pole Distance 0~220mm

Magnetized pole distance 0~220mm, DC, AC two power supply mode optional, in line with JB/T7411 standard, load ratio of 50%, suitable for boiler, Pressure Vessel, pressure pipeline.

$566.00/set

PromotionLoading...

Coupon

Model：

leeb610A

Certificate

Leeb

Manufacturer authorization

Contact

Details SPEC Con CAT

Leeb leeb610A Magnetic Particle Flaw DetectorSPEC

Leeb leeb610A Magnetic Particle Flaw DetectorDetails

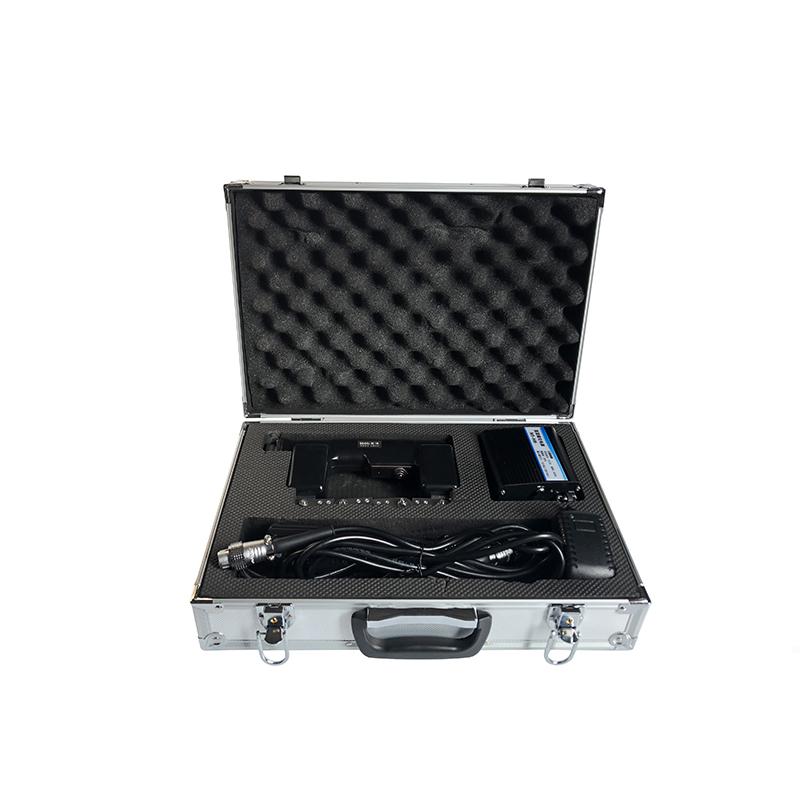

Leeb leeb610A Magnetic Particle Flaw DetectorPacking list

SKU: NB043823

Single-phase AC Power: AC220V 50Hz

Operating temperature: -10～+40℃

Ambient Temperature rise: <18℃

Relative Humidity: < 80% no condensation

Sensitivity: A1 type standard test piece 15/50 grooved clear display

DC magnetizing Power: Yes.

Operating current: AC2.2A

Operating current: DC 1.5A

Battery life: 4h/6h(AC)/8h(DC)

duty cycle: 50%

magnetization pole distance: 0~220mm

Lifting force: A C

DC: ≥22.2kg (216N)

Weight: electromagnetic yoke

magnetizing Power: 0.6kg

Accessories: A1 sensitivity test block, lifting force test block, magnetic suspension, magnetic paste, magnetic particle powder, white light

leeb610A

Magnetic Particle Flaw Detector

Magnetized pole distance 0~220mm, DC, AC two power supply mode optional, in line with JB/T7411 standard, load ratio of 50%, suitable for boiler, Pressure Vessel, pressure pipeline.

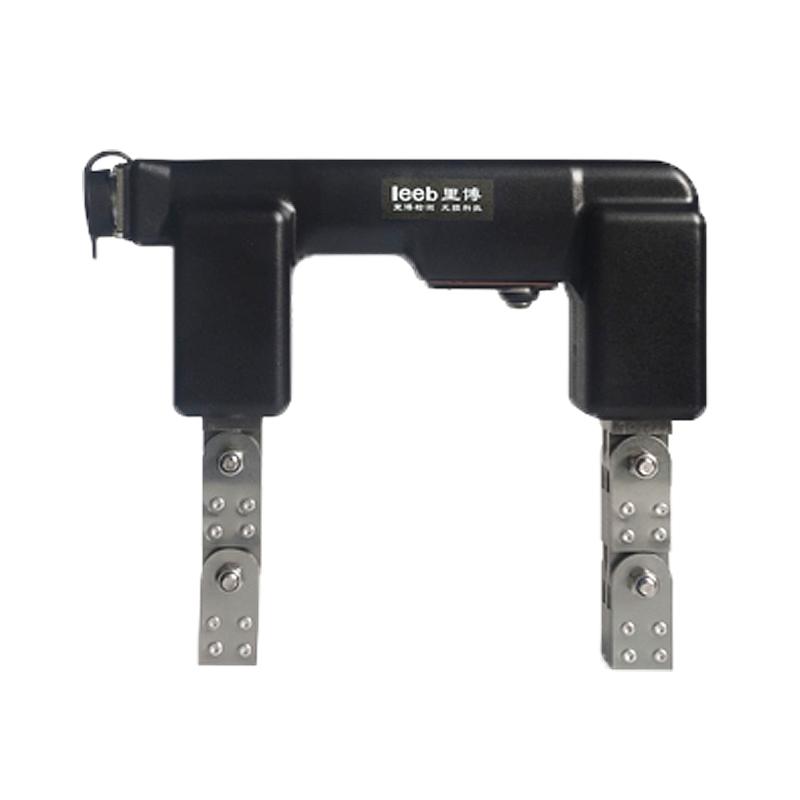

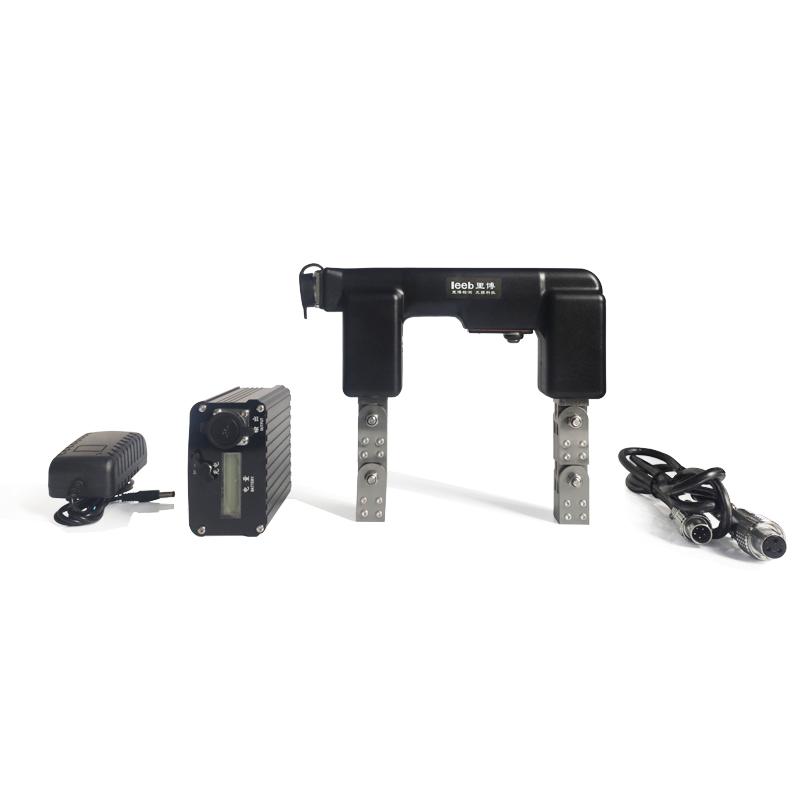

LEEB leeb610A Portable Yoke Flaw Detector Magnetization Pole Distance 0~220mm Picture

Overview

The magnetic yoke flaw Detector has the characteristics of compact structure, reasonable layout, small size, light weight and easy to carry. It is suitable for magnetic particle detection of surface and near-surface defects of ferromagnetic materials of various steel structural parts in electric power, metallurgy, petrochemical, machinery and other industries, boilers, pressure vessels, pressure pipelines and various types of welded structures. The flaw Detector can be directly connected to AC for use, or can be used with optional DC magnetized power supply. It is especially suitable for hull weld inspection, high-altitude steel structure weld inspection and internal operation of pressure vessels.

Meet the standard

The instrument meets the standard requirements of JB/T7411-2012 "Technical Conditions for Electromagnetic Yoke Flaw Detectors".

Standard Practice for Magnetic Particle Testing - ASTM E1444-05

Product Features

Small size and light weight;
One-piece molding, comfortable feel;
Special work fanny pack, which can carry magnetizing power supply, magnetic suspension, contrast agent, etc.；
Two power supply modes can be freely selected: single-phase AC power supply; DC magnetization power supply.
