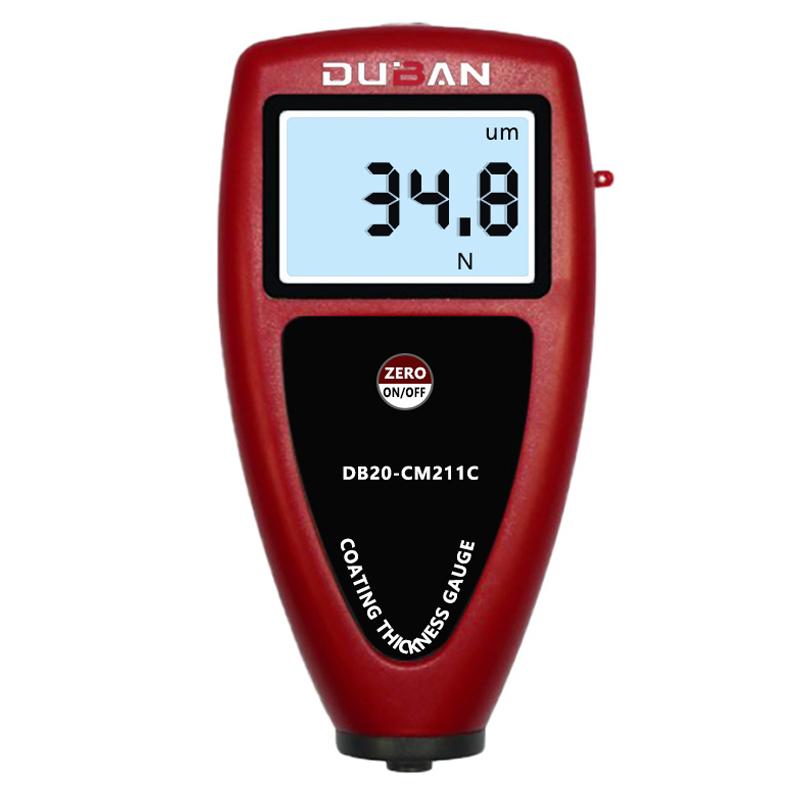

DUBAN DB20-CM211C Coating Thickness Gauge

DB20-CM211C

Coating Thickness Gauge

Resolution 0.1μm (less than 100μm) or 1μm (greater than 100μm), Precision +/- (1~ 3% n) or +/- 2.5μm, test range 0~1250μm (Measurement range can be customized), measurement area 6mm, thinnest substrate 0.3mm, minimum curved surface F-type convex 1.5mm/concave 25mm NF-type convex 3mm/concave 50mm.

Product Applications

The standard coating Thickness Gauge DB20-CM211C is a reliable measuring device with excellent data storage capacity for up to 99 new measurements. It excels in measurement accuracy and range, and can measure almost all types of substrates, whether ferrous or non-ferrous. In addition, it is equipped with RS-232C data connection cable, USB data connection and Bluetooth transmission function, providing users with a variety of data transmission methods.

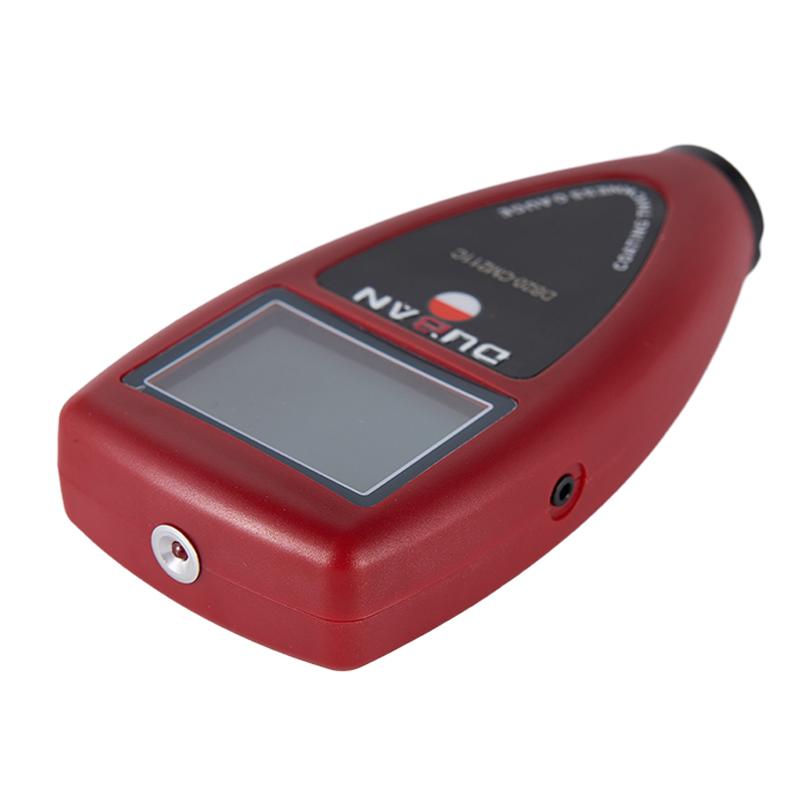

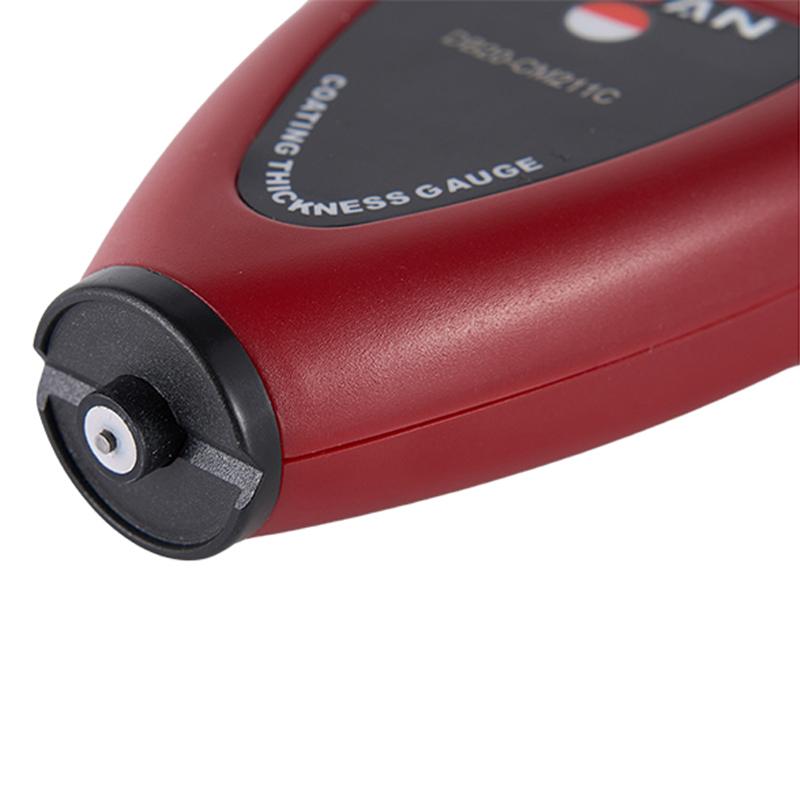

The one-piece design of the instrument facilitates one-handed operation and provides more stable measurement results during the measurement process. Its large probe has a larger contact area, resulting in better stability and consistent and highly repeatable measurement results. The split design offers a variety of different types of probes for increased maneuverability.

Features

Key features of this coating Thickness Gauge include:

• Suitable for ferrous and non-ferrous coatings.

• Available in both single and continuous measurement modes.

• It can switch between metric and imperial units, and has functions such as manual shutdown, automatic shutdown and underVoltage prompting.

• It has the function of automatically memorizing the calibration value and automatically identifying the material of the tested substrate. During operation, the buzzer will sound a chime, but during continuous measurement, the buzzer will remain silent.

• It supports communication with PC through USB data cable output, RS-232C data connection cable and software. In addition, Bluetooth™ Bluetooth data output is available as an option.

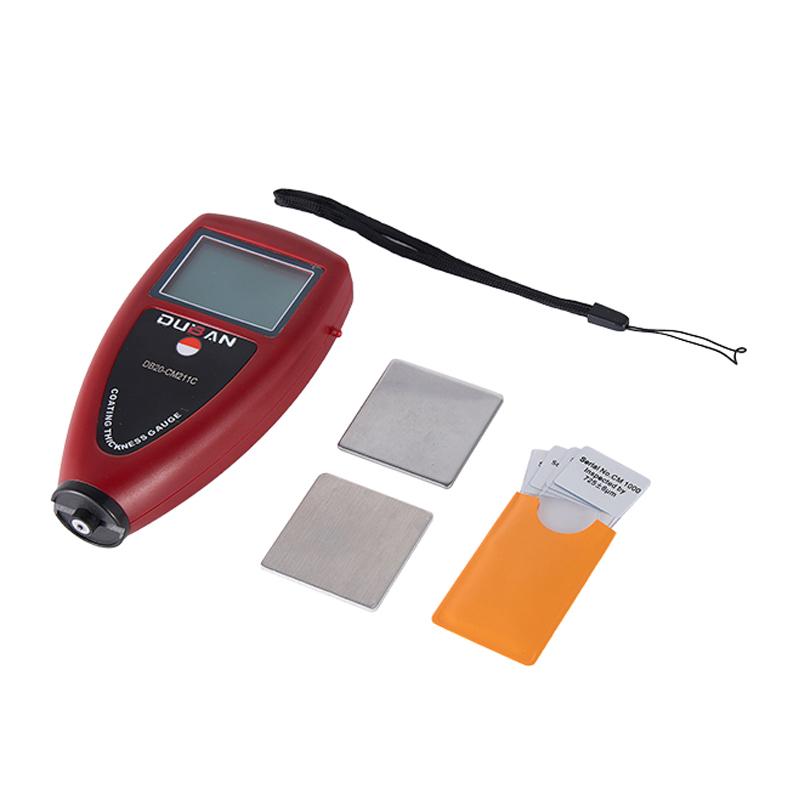

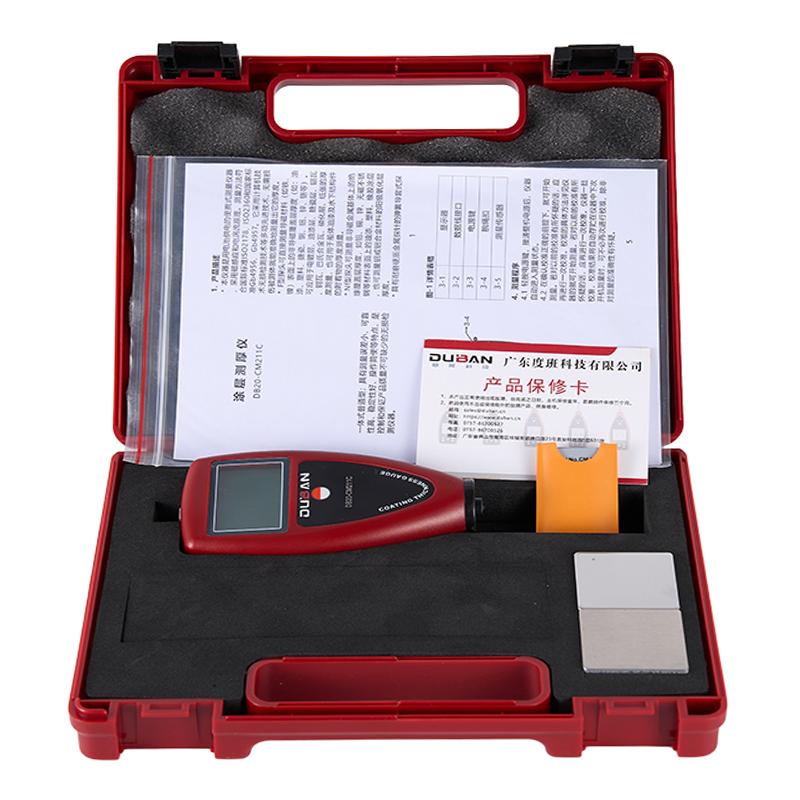

Packing list：Host X1, iron-based X1, aluminum-based X1, calibrated diaphragm X1, measurement Sensors X1, portable case X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
