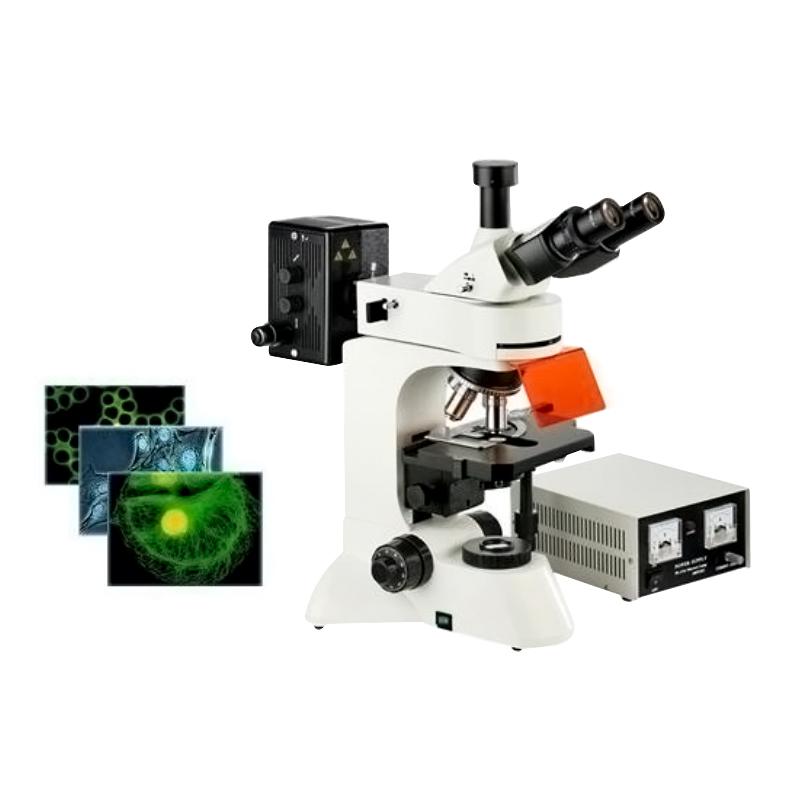

SHANGGUANG XSP-GX19AY Fluorescence Microscope eyepiece 10 times
XSP-GX19AY
ShangGuangLiuChang XSP-GX19AY Fluorescence MicroscopeSPEC
ShangGuangLiuChang XSP-GX19AY Fluorescence MicroscopeDetails
ShangGuangLiuChang XSP-GX19AY Fluorescence MicroscopePacking list
- SKU
- NB044314
- eyepiece
- Large field of view WF10X (field number of viewing)
- Total Magnification
- 40X-1000X
- Infinity flat-field color difference objective
- PL 4X/0.10 working distance: 19.8 mm; PL 10X/0.25 working distance: 5.0 mmPL 40X/0.85 (spring) working distance: 0.42 mm (no magnification color difference); PL 100X/1.25 (spring, oil) working distance: 0.36mm
- Infinity flat-field color difference fluorescence objective
- PL20X 0.40 working distance: 8.0 mm; PL 40X/0.85 (spring) working distance: 0.42 mm (no magnification color difference)
- Eyepiece tube
- Three eyepieces, 30 ° tilt
- Epofluorescence Lighting System - Power Box
- 110V/230V optional
- Epofluorescence Illumination System - Mercury Lamp
- 100W/DC
- epifluorescence illumination system
- Turntable fluorescent epiphany illuminator (including ultraviolet, violet, blue, green light, excitation color filter group)
- Ultraviolet (UV) excitation wavelength
- 320-380Nm, transmission wavelength: 435nm
- Purple (V) excitation wavelength
- 380-415Nm, transmission wavelength: 475nm
- Blue (B) excitation wavelength
- 450-490, transmission wavelength: 515nm
- Green (G) excitation wavelength
- 495-555, transmission wavelength: 595nm
- Focusing mechanism
- Coarse fretting coaxial focusing, fretting grid value: 2μm, with locking and limit device
- converter
- Five holes (inward ball positioning)
- stage
- Double-decked mechanical mobile (size: 210mmX140mm, moving range: 75mmX50mm)
- Transmission illumination system
- Abbe condenser NA.1.25 can be lifted up and down; Blue filter and frosted Glass; collector, halogen lamp for lighting (built-in field of view light bar); 6V30W lamp, luminance adjustable
Introduction
The fluorescence microscope XSP-GX19AY is suitable for fluorescence microscopy and transmission bright field observation. Using infinite flat-field achromatic fluoroscopes and large-field eyepieces without magnification color difference, the optical system has clear imaging and a wide field of view. Transflective light source, lighting device with low power consumption, long service life, and good heat dissipation effect. The instrument is safer and more comfortable to use, and has low cost of use and maintenance. It is a commonly used instrument for research in biology, cytology, oncology, genetics, immunology, etc. It can be used by scientific research, universities, medical and epidemic prevention departments. Total magnification: 40X-1000X.
Features
1. Adopt today's most advanced infinity optical system.
2. Equipped with a large field of view eyepiece and a fluorescent objective lens, the field of view is flat and clear.
3. Adopt planetary coaxial coarse fretting focusing device for comfortable and stable focusing.
4. Two light path outputs, one for observation and one for connection to the camera device.
5. Adopt a double-layer mechanical stage with a scale, adjust the handwheel in the coaxial vertical and horizontal directions, and the operation is more convenient
