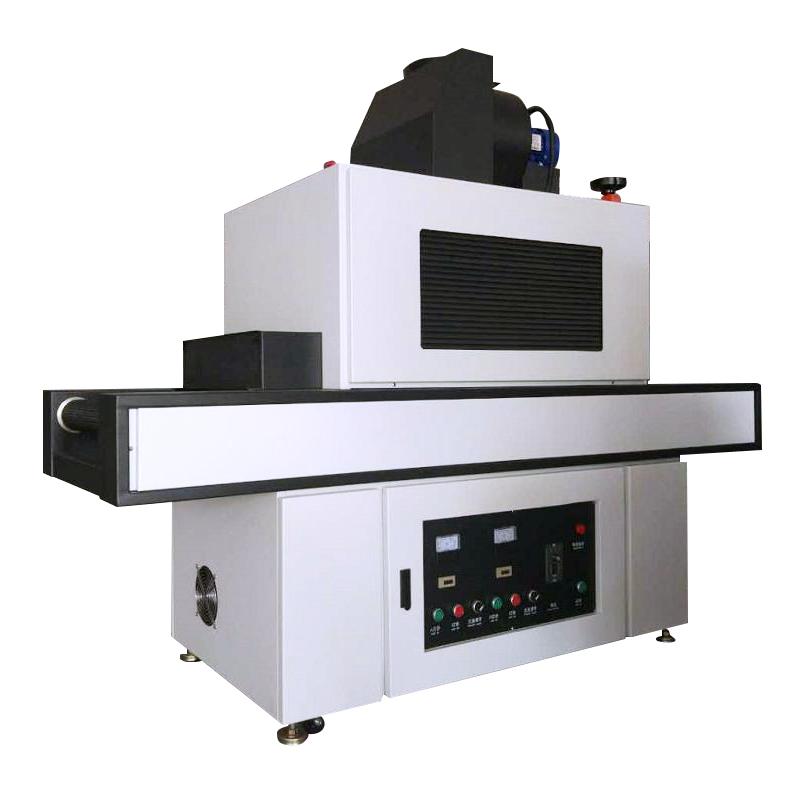

HEIGHT-LED HTCS-301-400 UV curing machine

HTCS-301-400

UV curing machine

UV lamp group 3.2KW * 1PCS, UV main peak 365nm, UV lamp quality assurance more than 1000 hours, button interface control, light box height adjustable, conveying speed 0.5-20 m/min, conveying width 400mm.

UV system

1. UV lamp set: 3.2KW*1PCS;

2. UV main wave peak: 365nm;

3. UV lamp warranty: more than 1,000 hours;

4. Power supply: Use corresponding supporting copper wire transformer;

5. Light box adjustment: external handwheel scale adjustment;

6. Light box height: The height can be adjusted from 80mm to 180mm through the external hand wheel, and the height is adjustable;

cooling system

1. Heat dissipation of the whole machine: special air duct design and internal air supply treatment;

2. The heat dissipation adopts air duct guidance combined with centrifugal fan upper exhaust forced air cooling;

Transmission system

1. Transmission configuration: Weipu motor is used with the driving roller, driven roller, sprocket and chain for transmission;

2. Conveying material: stainless steel mesh belt;

3. Conveying speed: 0.5-20 meters/minute;

4. Conveying width: 400mm;

5. Feeding port height: 10-100mm; (adjustable)

Machine electrical appliances and control systems

1. Main electrical appliance: Chint Electric;

2. Control method: button interface control;

3. Button panel display: ammeter, light on, light off, light intensity adjustment, usage time, startup, power indicator light, transmission speed adjustment;

4. Safety devices: fan overload protection, emergency switch to prevent external anomalies, control line fuses, etc., in line with international safety standards;

5. Total power is about: 3.2KW;

6. Power supply: AC 220V 50Hz

Machine construction specifications

1. The overall dimensions of the whole machine are approximately: 1500mm*700mm*1750mm; (length*width*height)

2. Feed section length: 300mm, discharge section length 300mm;

3. Height from the conveying surface to the ground: 750mm±25mm;

4. The frame is made of square tubes, angle irons, and cold-rolled plates that are bent and welded to ensure a solid overall structure. The outer surface is treated with anti-rust high-temperature plastic spraying;

5. Machine adopts: The machine is equipped with universal wheel feet for easy movement and fixation.

Packing list：machine x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
