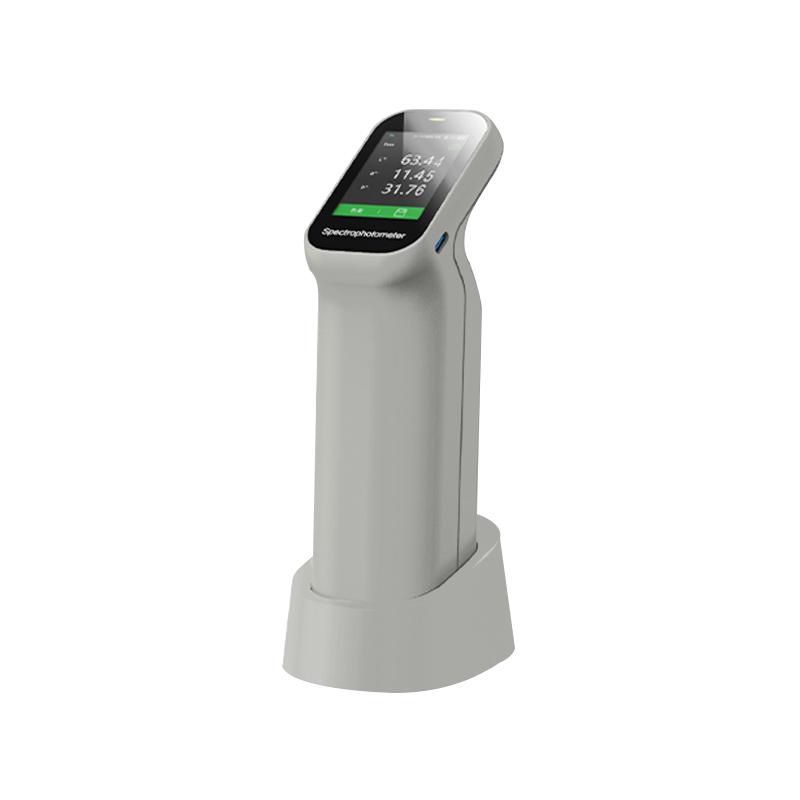

CHNSPEC DS-100 Portable Colorimeter Repeatability accuracy up to dE * ab ≤ 0.03

DS-100

Color difference meter

Dual light path design, Repeatability accuracy up to dE * ab ≤ 0.03, D/8 measurement mechanism, support WeChat Mini Program, Android, Apple, Hongmeng mobile APP, φ 6mm/▽ 6mm2 measurement diameter.

Core Technology

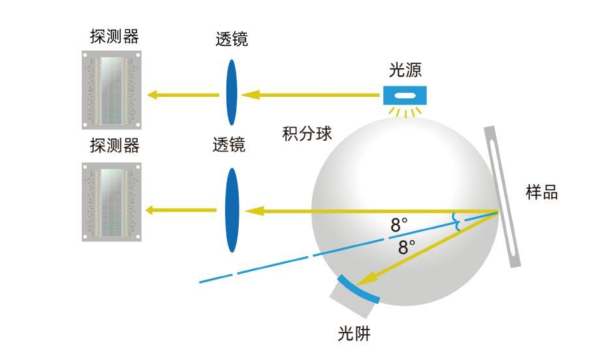

(1) Dual optical path design improves repeatability accuracy dE*ab≤0.03

The dual optical path design monitors the energy fluctuations of the light source while measuring the sample signal, reducing interference during measurement, obtaining higher measurement stability, and improving the instrument measurement repeatability index to dE*ab≤0.03. The measurement speed, accuracy and stability of the instrument are guaranteed.

(2) Innovative 5-micron-thick nano-integrated optical device

After painstaking research, nano-integrated optical devices are used as spectroscopic devices. Only optical devices with a thickness of 5 microns can achieve nano-level light splitting capabilities .

product features

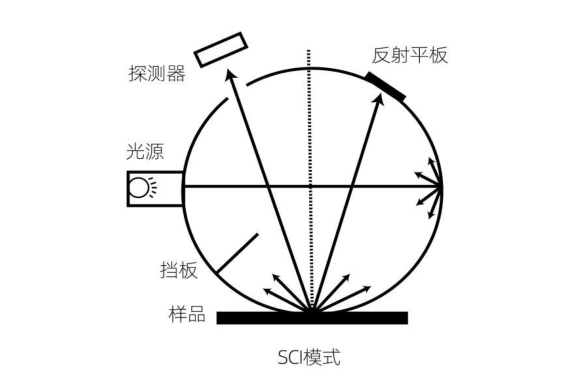

(1) D/8 measuring mechanism, including SCI measuring mode

SCI refers to the specular reflection light method, which is generally used for those who study the properties of the color itself and do not care about the surface gloss of the sample to which the color is attached.

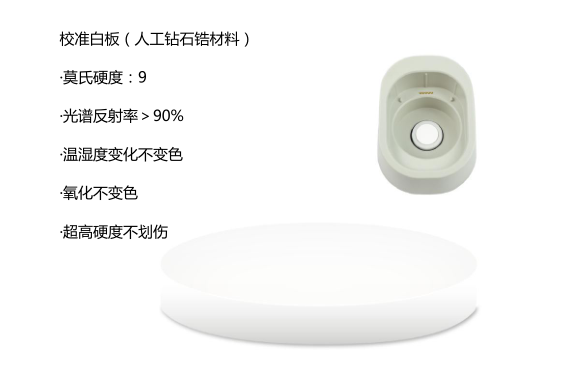

(2) The calibration base and the zirconium standard with Mohs hardness of 9 are used to calibrate the instrument to ensure the long-term stability of the instrument.

Compared with existing products, the DS-100 Colorimeter does not require frequent manual calibration when in use. As long as it is placed on the calibration base, the instrument will automatically calibrate the overall instrument function and accuracy according to its own status and environmental factors to ensure that the instrument Always in a stable state, always ready.

The white plate in the calibration base is the baseline for the instrument's accuracy. Through long-term investment and research, Color Spectrum has integrated zirconium material, known as "artificial diamond", as a calibration whiteboard, with a surface Mohs hardness of 9. Since the material itself has a hardness and stability comparable to diamond, it is guaranteed that the surface of the calibration whiteboard will not be scratched and will not change color with changes in temperature and humidity. Compared with similar foreign and domestic (CN) products, which use ordinary industrial ceramics or even plastics as calibration whiteboards, the stability and durability are further improved, ensuring the performance of the instrument.

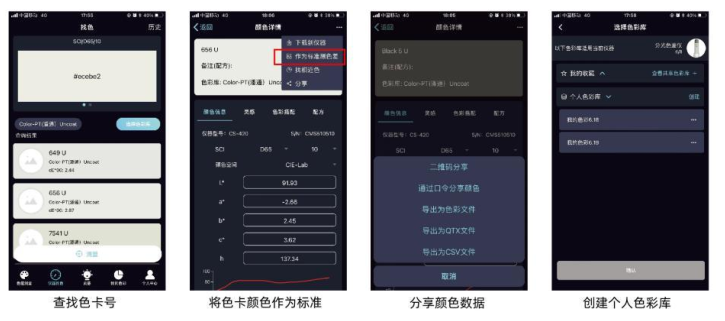

(5) Support WeChat applet, Android, Apple, Hongmeng mobile APP

• DS-100 Colorimeter can be connected to various mobile phones through rich mobile programs. Users no longer need to transmit the color values ​​and physical objects of samples, and can easily transmit color data through WeChat.

• Users can search for the closest color among multiple sets of Color Charts.

• Users can create a personal color database and enter Color Chart information for printing, coatings, textiles, etc. The created color library can be uploaded to the cloud and data can be shared across multiple devices.

• Enterprise users can create and manage their own Color Chart information library and color formulas in the cloud, and share the information library and color formulas with their own users through unique invitation codes.

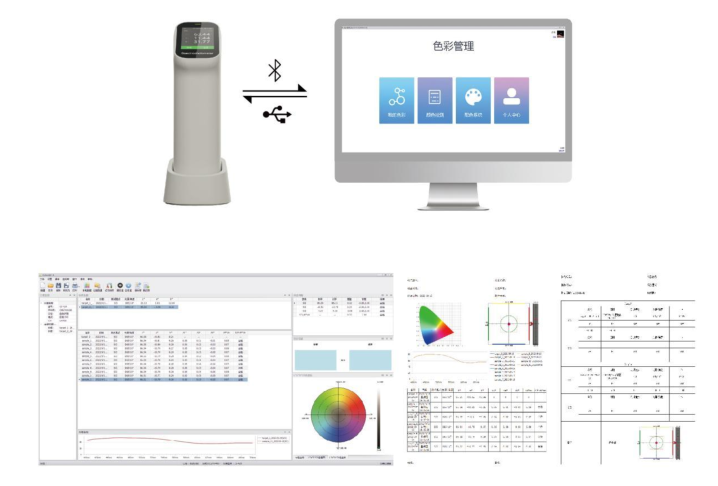

(6) Use the powerful PC-side color management system ColorExpert

The DS-100 Colorimeter package comes with the Windows color management system ColorExpert, which can be connected to the Colorimeter via Bluetooth or USB cable.

ColorExpert is a full-featured color management software with four major functional modules: My Color, Color Detection, Color Matching System (requires purchase), and Personal Center.

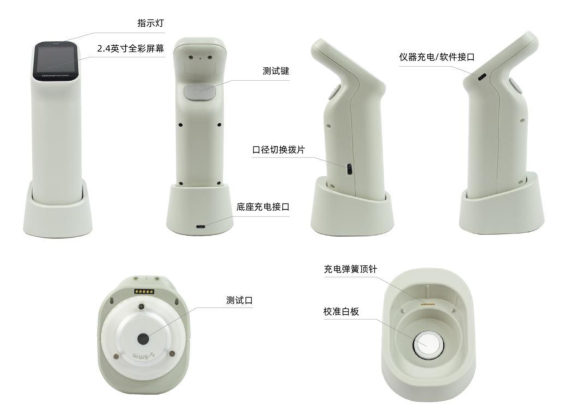

Appearance structure introduction

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
