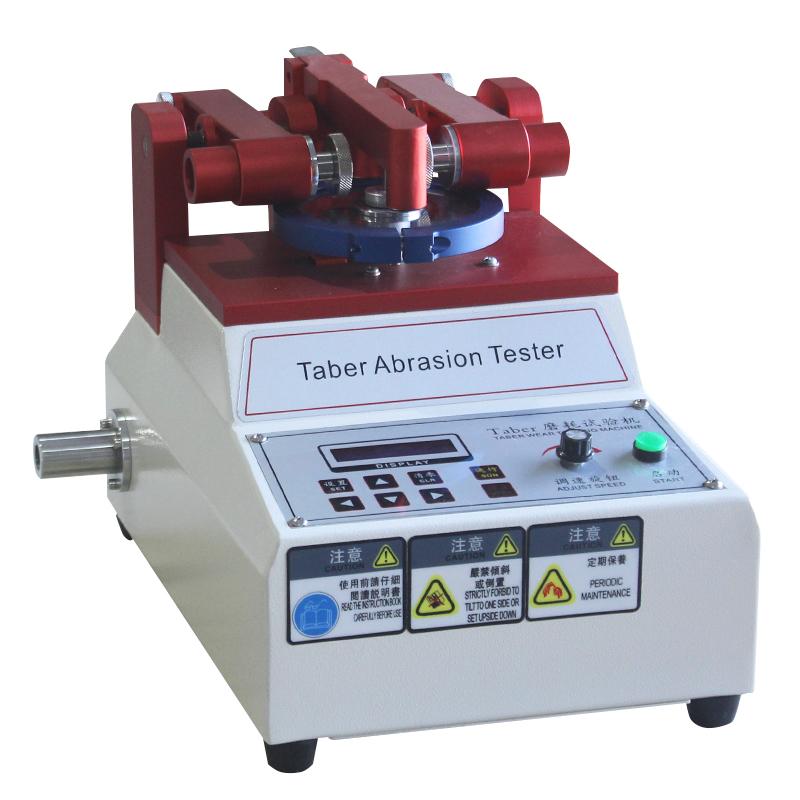

Swirl/spin Wear Measurement Instrument NBC-Taber5612 Wear resistance Tester

SE
In line with DIN-53754, ASTM-D3884 standard, 250g, 500g, 1000g three kinds of load, counter electronic display 6 digits, automatic stop, swirl/spin Rotation speed 60, 70 rpm.
$1081.00/set
PromotionLoading...
Coupon
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Factory NBC-Taber5612 Taber Wear resistance TesterSPEC

Factory NBC-Taber5612 Taber Wear resistance TesterDetails

Factory NBC-Taber5612 Taber Wear resistance TesterPacking list

SKU
NB044533
test piece
Outer diameter 100mm, inner diameter 8mm, thickness 3mm
load
250g,500g,1000g
Counter
Electronic display 6 digits, automatic shutdown
Rotation speed of test disc
60,70 rpm or as specified
Machine size
320*480*310mm
Machine Weight
About 18kg

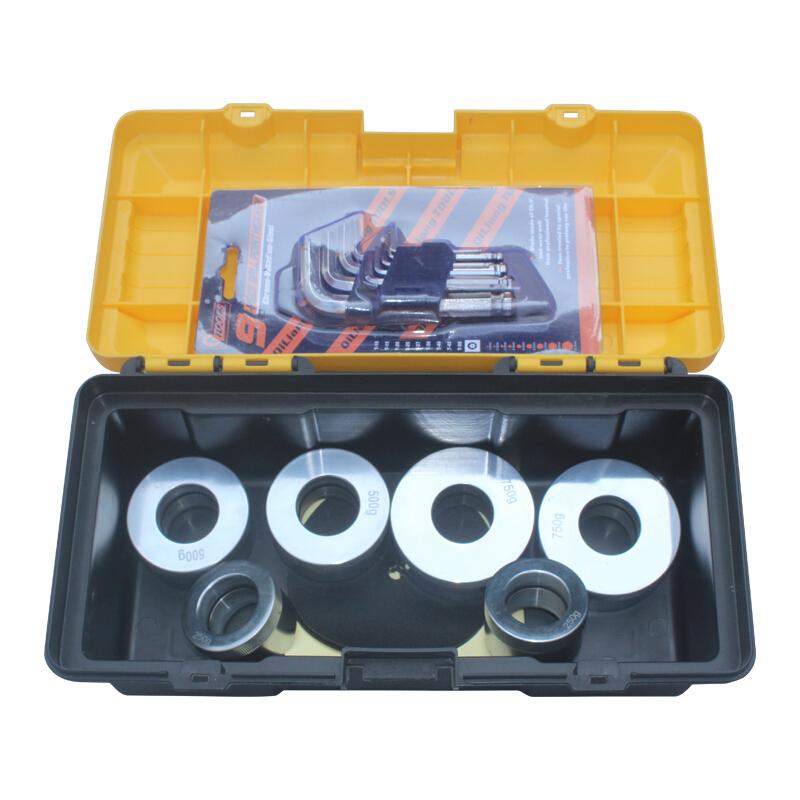

Accessories
1 piece of test piece cutter, 1 piece of wrench, 1 set of abrasive wheels, 1 pack of yarn paper
Coating abrasive wheels
CS17
plywood
CS32 CS33
cloth
H18 H22，CS17
plastic
CS17, H18, H22 (abrasive wheels are optional)
Power supply Voltage
AC220V 50HZ
abrasive wheels
Abrasive wheels Standard H-18 Miscellaneous abrasive wheels need to be purchased separately
NBC-Taber5612
Taber Wear resistance Tester
In line with DIN-53754, ASTM-D3884 standard, 250g, 500g, 1000g three kinds of load, counter electronic display 6 digits, automatic stop, swirl/spin Rotation speed 60, 70 rpm.

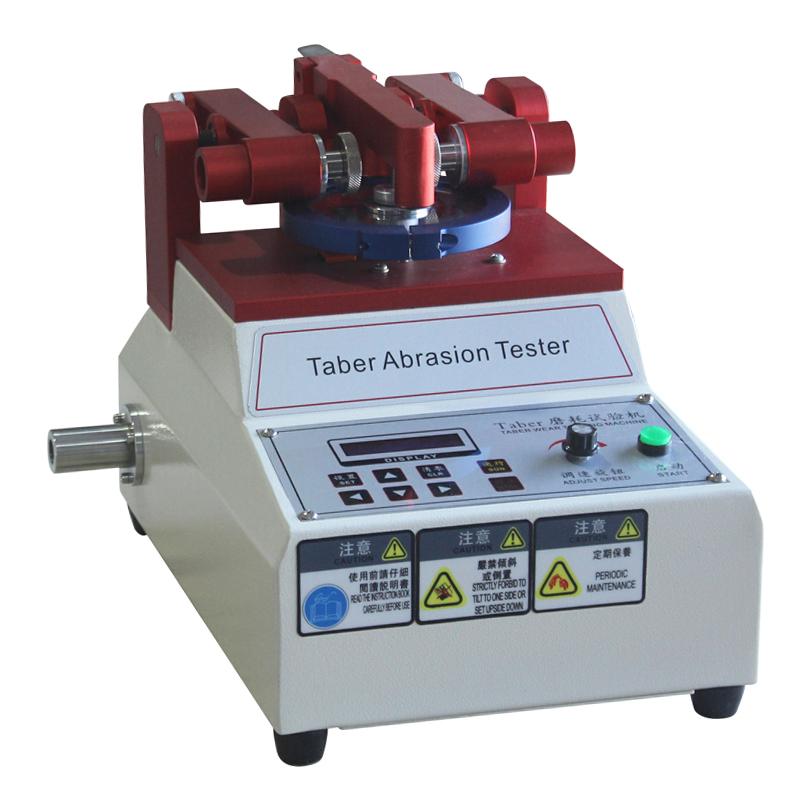

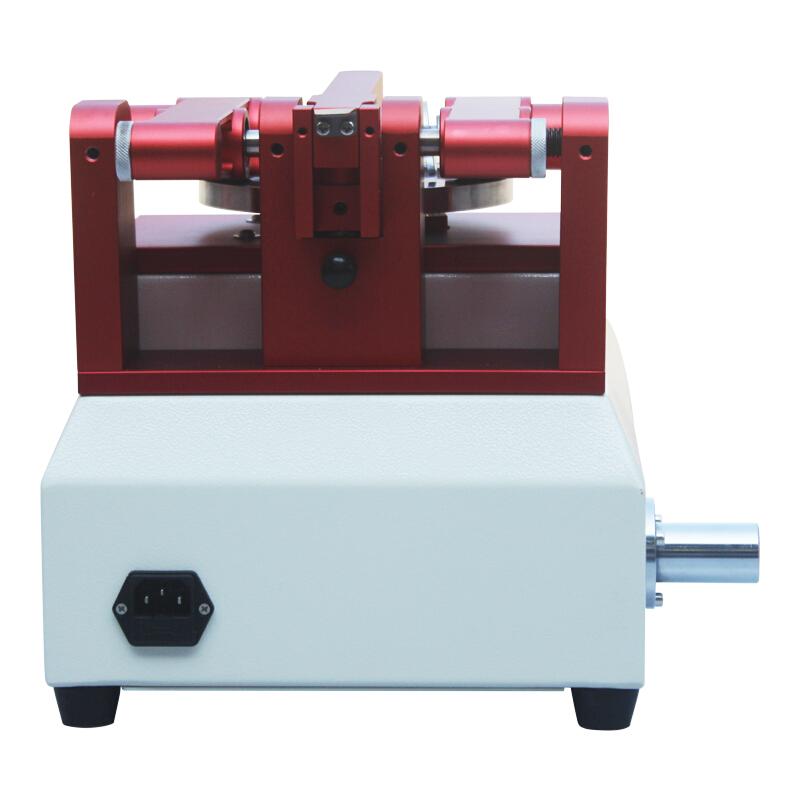

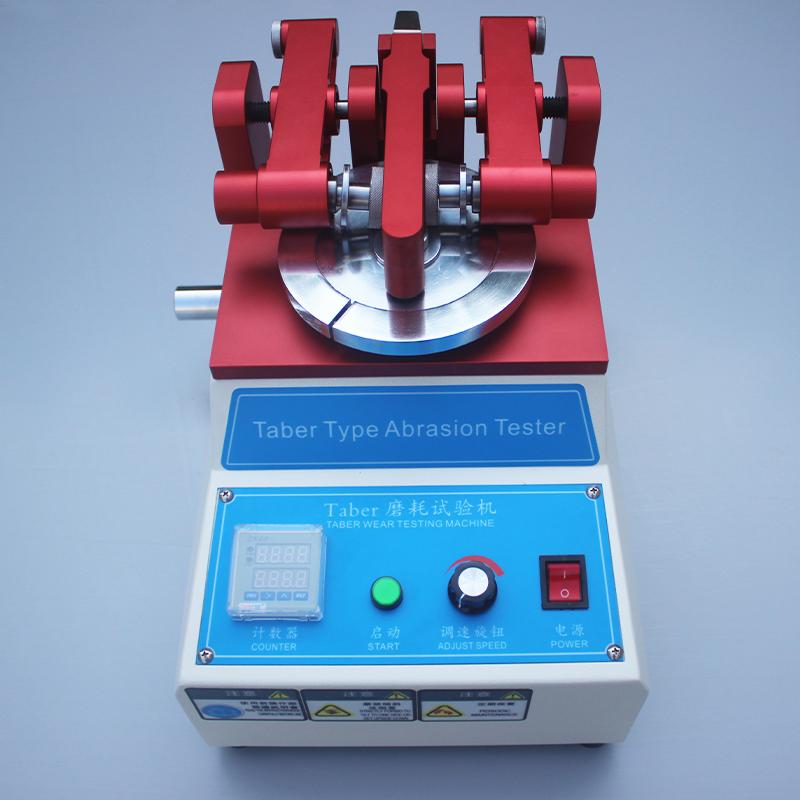

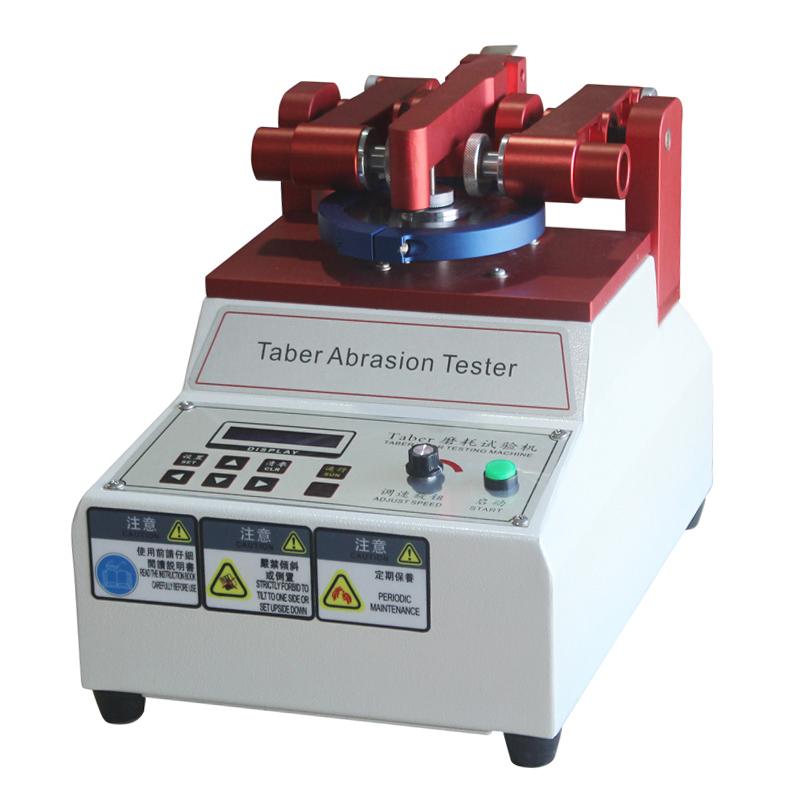

Swirl/spin Wear Measurement Instrument NBC-Taber5612 Wear resistance Tester Picture

Introduction

The Taber wear-resistant testing machine uses a standard cutter to cut the test piece, uses a specified type of grinding wheel, and loads a certain weight to wear it. After reaching the specified number of revolutions, take out the test piece and observe the condition of the test piece after grinding or before the test. The difference between the weight and the weight after the test. Wear index calculation formula: Wear loss weight/number of test revolutions × 1000 Grinding wheel number for selection: H18

Applications

Suitable for wear resistance testing of fabrics, plywood, floor tiles, glass, natural rubber and other materials . Comply with DIN-53754, ASTM-D3884 and other standards.

Chinese brand NBC-Taber5612 Taber wear-resistant testing machine details Figure 1

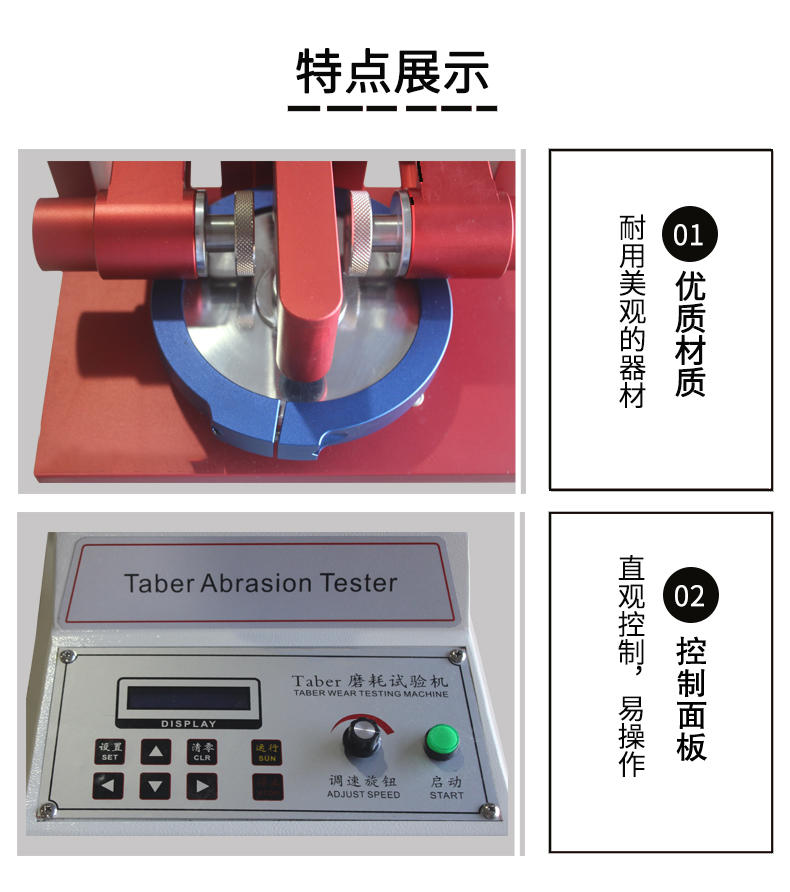

Chinese brand NBC-Taber5612 Taber wear-resistant testing machine details Figure 2

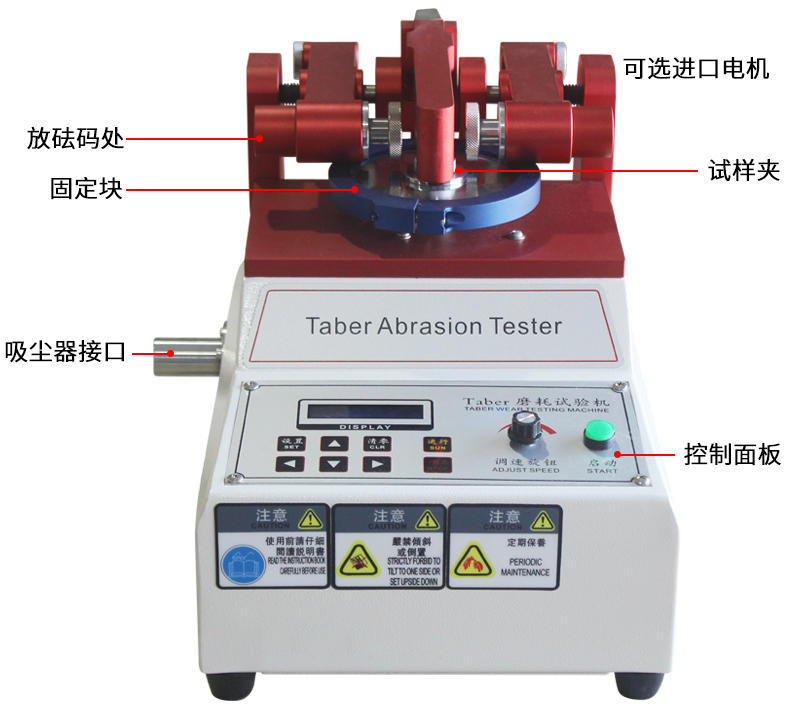

Details of domestic (CN) brand NBC-Taber5612 Taber wear-resistant testing machine Figure 3

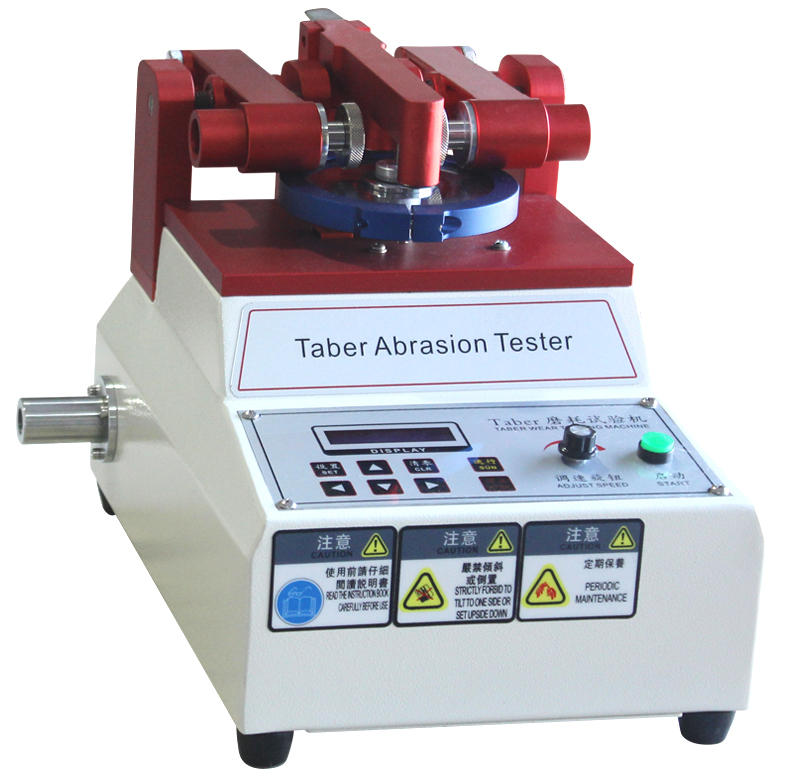

Details of domestic (CN) brand NBC-Taber5612 Taber wear-resistant testing machine Figure 4


FAQ
QWhat are the specifications of the NBC-Taber5612 Wear resistance tester?
A The outer diameter of the test piece is 100mm, the inner diameter is 8mm, and the thickness is 3mm. These standardized test piece sizes ensure repeatability and comparability under different test conditions, so that the wear performance of different materials can be fairly evaluated and compared.
QTaber Wear resistance tester abrasion index calculation formula is what?
A The abrasion index is calculated by dividing the abrasion loss weight by the number of test revolutions and multiplying by 1000. This index provides a quantitative way to evaluate the wear resistance performance of a material under specific conditions and is essential for evaluating the durability of a material.
QTaber Wear resistance tester for which materials wear performance testing?
A It is suitable for wear resistance testing of fabrics, plywood, floor tiles, Glass, natural rubber and other materials. It can perform standardized wear resistance tests with appropriate abrasive wheels and loads according to the characteristics of different materials, meeting international standards such as DIN-53754 and ASTM-D3884.
