CHINA NBC-5637A Computer-controlled stiffness Tester

SE
Measurement range 15~ 10000mN.m, bending speed 200 ° +/- 20 °/min, suitable for measuring the thickness of less than 2mm paper, Cardboard and other strength sheet Non-metallic material bending resistance, in line with IS02493 and GBT2679.3.
$1596.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Factory NBC-5637A Computer controlled stiffness TesterSPEC

Factory NBC-5637A Computer controlled stiffness TesterDetails

Factory NBC-5637A Computer controlled stiffness TesterPacking list

SKU
NB044572
Measurement range
15~10000mN.m
Accuracy
Below 50mN +/- 0.6mN, remaining +/- 1%
Resolution
0.1mN
Indication variability
≤1%
bending length
50mm、25mm、20mm、15mm、10mm、5mm(±0.1mm)
bending angle
7.5°±0.3、15°±0.3
Test speed
200°±20°/min
printout
modular integrated thermal printer
Display
5.7In LCD display with Linear dispersion diagram
printout
modular integrated thermal printer
Operating Environment
Temperature (20 +/- 10) ℃, Humidity < 85%
Dimensions
340*330*340mm
Weight
About 28kg
NBC-5637A
Computer controlled stiffness Tester
Measurement range 15~ 10000mN.m, bending speed 200 ° +/- 20 °/min, suitable for measuring the thickness of less than 2mm paper, Cardboard and other strength sheet Non-metallic material bending resistance, in line with IS02493 and GBT2679.3.

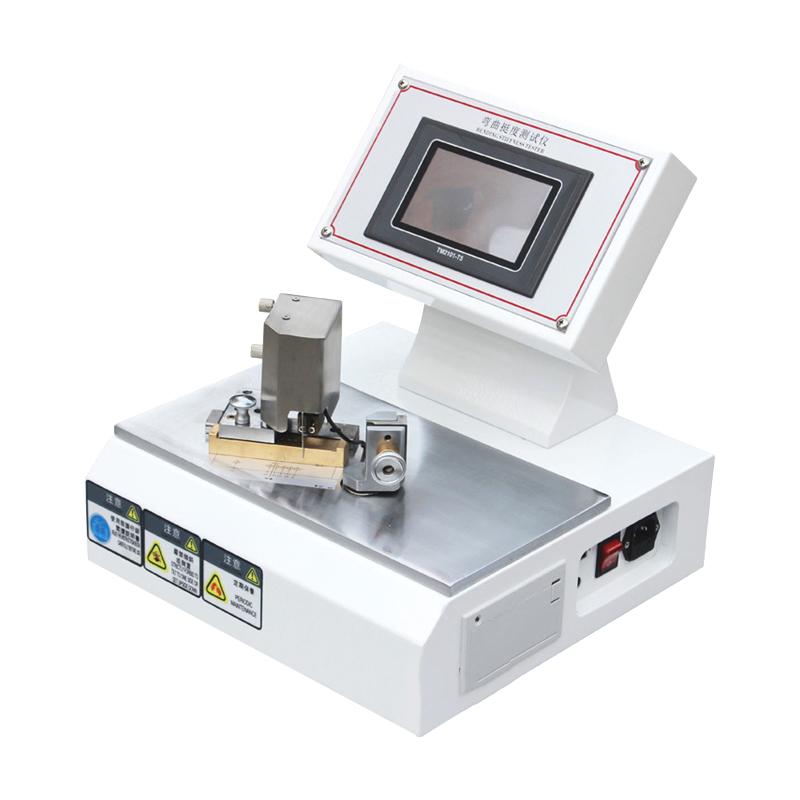

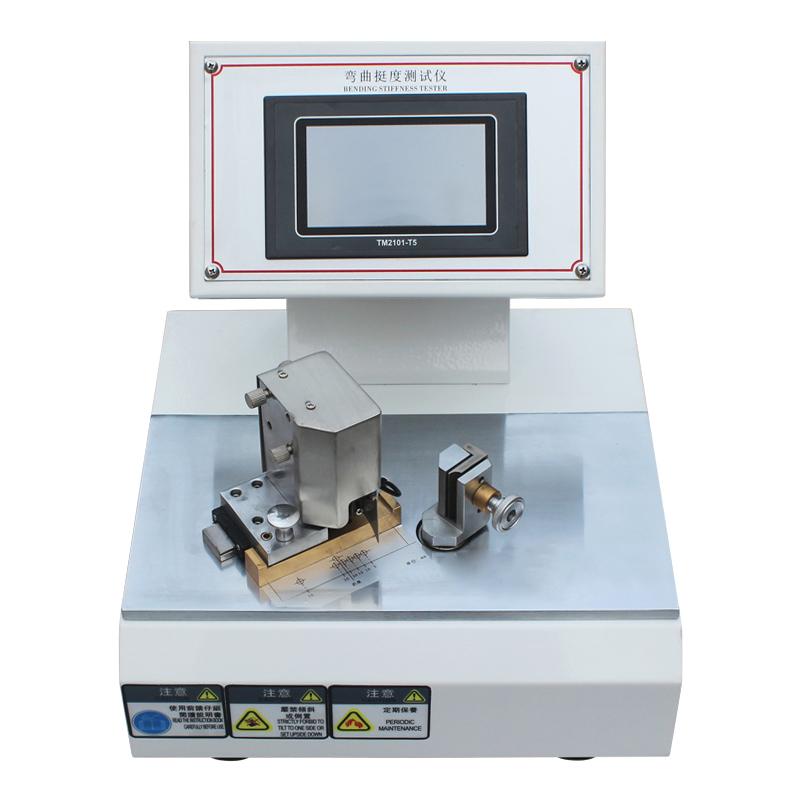

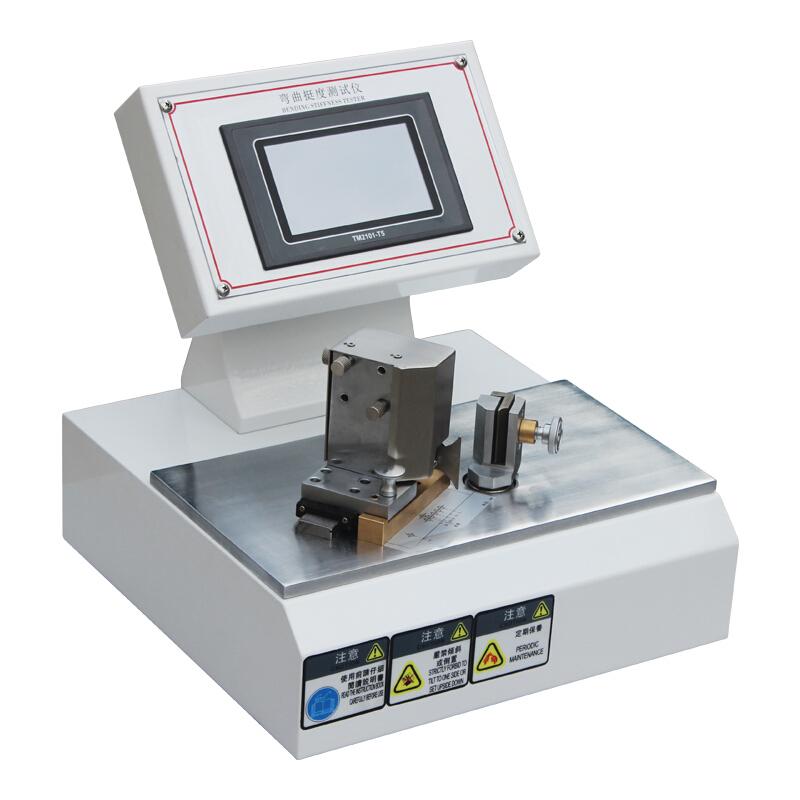

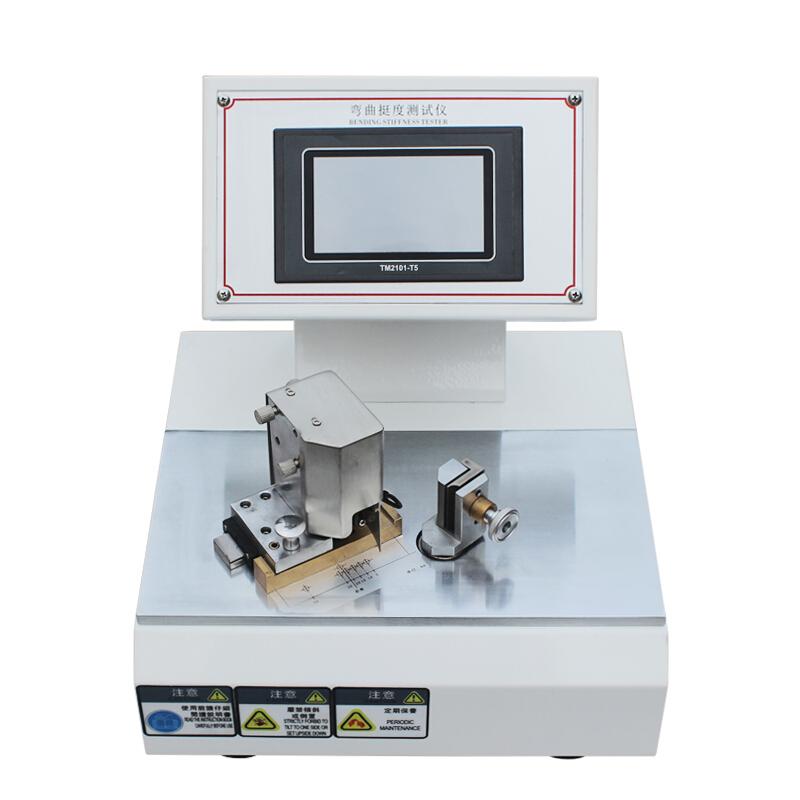

CHINA NBC-5637A Computer-controlled stiffness Tester Picture

Introduction

The computer controlled stiffness Tester is an intelligent computer stiffness Tester, suitable for measuring the bending resistance of paper, cardboard and other strong sheet-like non-metallic materials with a thickness less than 2mm. The main technical parameters of the positioner comply with the relevant provisions of IS02493 "Determination of stiffness of paper and cardboard" and GBT2679.3 "Method for determination of stiffness of paperboard".

Technical characteristics

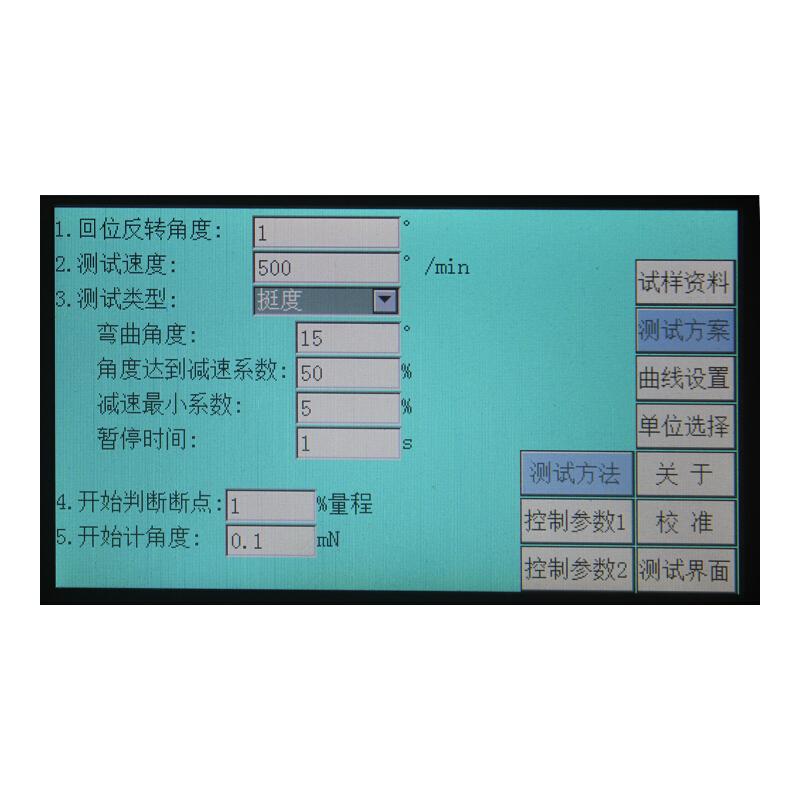

The angle can be set arbitrarily between (1~90)°, and the test time can be set arbitrarily within the specified range (3s~35s). Equipped with automatic zero-adjusting test function, it is the first domestic (CN)ally launched fully automatic stiffness Tester with a 5.7-in LCD display curve. It can display stiffness and time curves in real time and is simple and convenient to operate. This instrument has various parameter testing, display, memory, statistics and printing functions included in the standard, and provides scientific data analysis for cardboard bending stiffness testing.


FAQ
QOur factory mainly do Cardboard stiffness test, need to measure the stiffness value, do you have a suitable instrument recommendation?
A NBC-5637A computer measurement and control stiffness tester is designed to measure the stiffness of Cardboard with a thickness of less than 2mm. Measurement range is 15~ 10000mN.m, which meets the national standard and ISO standard. It can automatically display stiffness and time. Linear dispersion, simple operation, accurate data, suitable for factory quality control.
QCan this instrument be used in Cardboard production online? Is the test fast?
A Of course it can be used. It is often used for Cardboard mass inspection in production lines or laboratories. The angle and time are adjustable. Test speed is 200 °/min. It can also automatically adjust zero and print results. It can quickly provide stiffness data to help monitor production Stability.
QWhat instrument is good for measuring paper stiffness?
A Recommended NBC-5637A computer-controlled stiffness tester, which can intelligently test the bending resistance of Cardboard within 2mm, LCD screen directly displays the stiffness change Linear dispersion, especially convenient to operate.
QWhat materials is this instrument suitable for testing?
A Specially measure the flexural strength of sheet materials such as paper and Cardboard, such as the Hardness verification of Encasement cartons, because it conforms to the international standard ISO2493, the data is very reliable.
