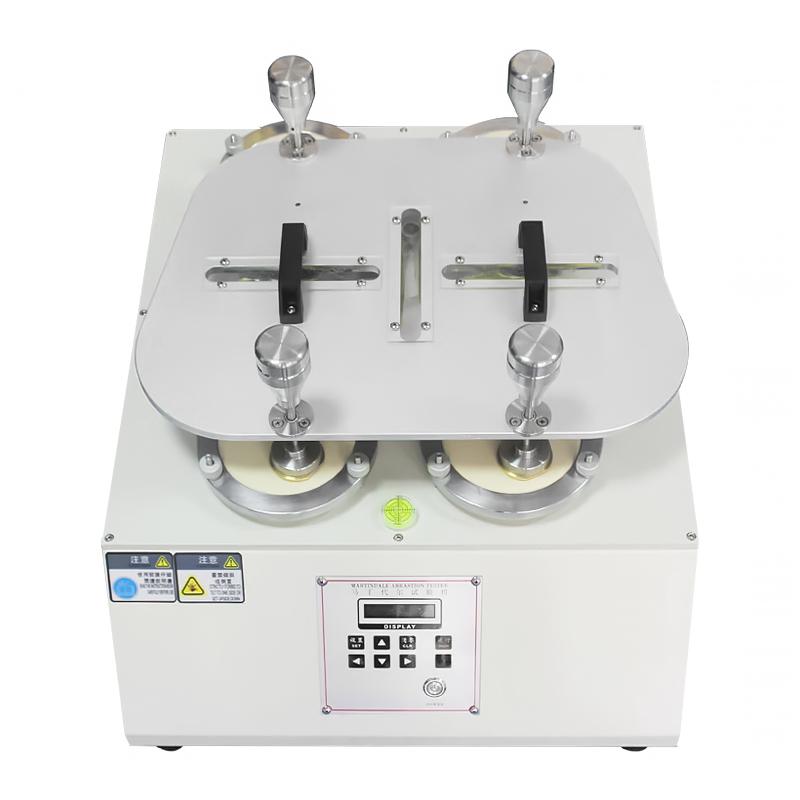

China domestic (CN) NBC-101-4Z Martindale Wear resistance tester four stations
SENumber of stations in 4 groups, with two Lissajous 24mmx24mm, 60.5mmx60.5mm motion trajectories and a variety of supporting accessories, can adapt to a variety of test method standards.
$1599.00/set
PromotionLoading...
Coupon
Model：
NBC-101-4Z
Factory
Factory NBC-101-4Z Wearing resistance testersSPEC
Factory NBC-101-4Z Wearing resistance testersDetails
Factory NBC-101-4Z Wearing resistance testersPacking list
- SKU
- NB044602
- Number of stations
- Group of 4
- expected count
- 0~ 999999 times
- cumulative count
- 0~ 99999 times
- Clothing sample weight
- 395g
- Stainless steel butterfly sheet
- 260g
- Husband holder
- 200g
- Furniture decoration sample heavy hammer
- 594g
- maximum travel
- 24±0.5mm、 60.5±0.5mm
- Effective friction diameter of grinding block
- Type A 200g (1.96N) friction head < 28.8-0.084mm (standard) Type B 155g (1.52N) friction head < 90-0.10mm (optional)
- Relative velocity of gripper and mill
- 50-2R/min loading
- Bell mass
- 2385±10g
- weight
- 100kg
- consumables
- 4 sheets of wool felt and 4 sheets of test cotton cloth.
- Power frequency
- Ac220V 50H2
NBC-101-4Z
Wearing resistance testers
Number of stations in 4 groups, with two Lissajous 24mmx24mm, 60.5mmx60.5mm motion trajectories and a variety of supporting accessories, can adapt to a variety of test method standards.

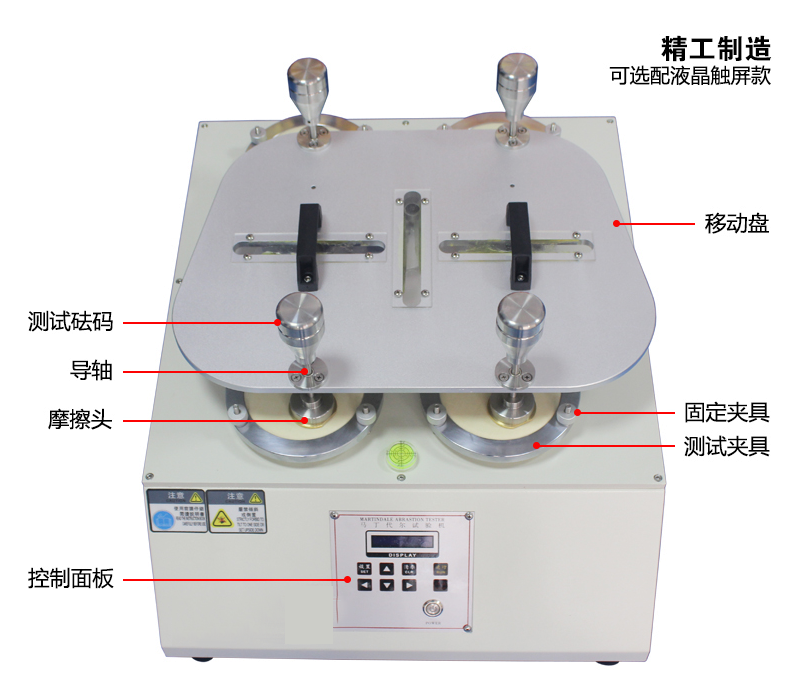

Product Introduction
The instrument is designed by absorbing the advantages of similar instruments at home and abroad, its appearance is beautiful and generous, easy to operate, the microcomputer system adopts two counting methods, intuitive and generous, convenient to set, eight stations at the same time to test to improve the test efficiency.
The instrument also has two types of Lissajous (Lissajous24mmx24mm, 60.5mmx60.5mm motion trajectories and a variety of supporting accessories, which can adapt to a variety of test method standards.
Meets standards
Compliant: GB/T4802.2, ASTM D4970, ISO12945-2 and other fabric pilling degree tests.
It also complies with: GB/T13775, ASTM D4966, ISO12947 and other fabric wear resistance tests.
FAQ
QWhat are the application cases of Martindale Wear resistance testers in different industries?
A
NBC-101-4Z is widely used in the Spinning & Weaving, Apparel, Furniture, Automotive Interiors and other industries to evaluate the wear resistance performance of various fabrics and materials. For example, in the furniture industry, it can test the wear resistance of fabrics to help design and select more durable materials; in the automotive industry, it can be used to evaluate the service life of car seat and interior materials.
QHow to set the test parameters of Martindale Wear resistance tester?
A
The test parameters include 4 sets of stations, the preset count range is 0~ 999999 times, and the cumulative count range is 099999 times. The specific mass and moving range of the weight and holder of different samples are also described in detail in the specifications, ensuring accurate testing under different standards.
QCan this meet the requirements of Linear dispersion?
A
OK
QWear resistance testers ensure the accuracy and repeatability of test results.
A
The NBC-101-4Z uses precise test parameter settings, including precise control of mass and range of different weights and grippers, as well as standardized consumables such as wool felt and test cotton. These designs ensure reliable results in various fabric wear performance and pilling degree tests.
QWhat are the maintenance and operation points of the Martindale Wear resistance tester?
A
To ensure long-term stable operation, NBC-101-4Z requires regular maintenance, such as cleaning and lubricating moving parts, checking and calibrating test parameters, and replacing consumables and Accessories. Care should be taken during operation to precisely set test conditions and inspection results to ensure the accuracy and Reliability of data.
