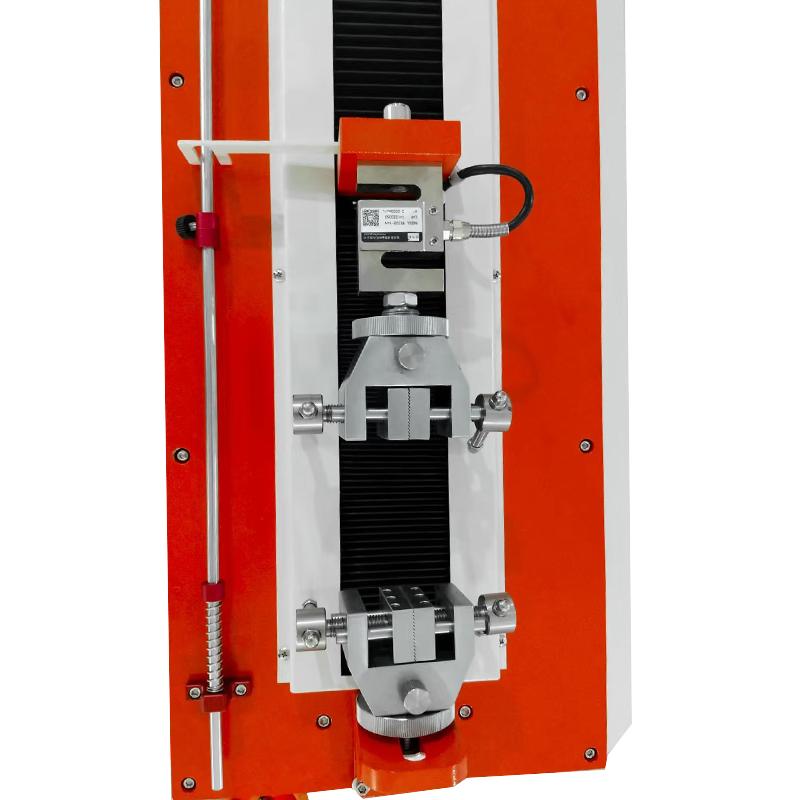

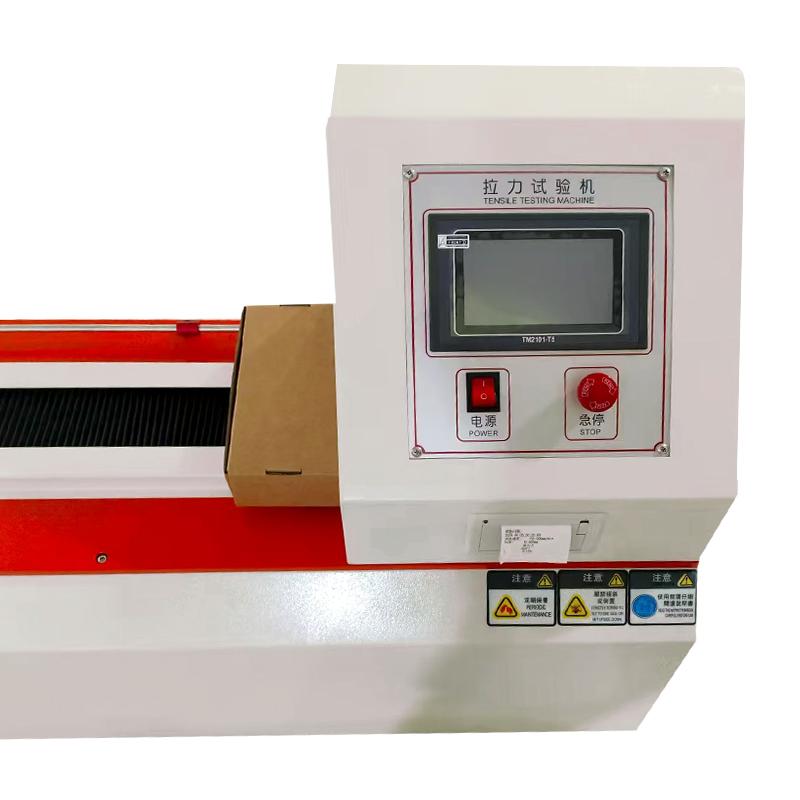

CHINA NBC-1002 Microcomputer horizontal Tensile Strength Tester 50kg

NBC-1002(50kg)

Microcomputer horizontal Tensile Strength Tester

Force value digital LCD display, can distinguish tension or pressure, LCD interface is clear and easy to read, three Measurement Units: N, Kgf, Lbf optional and automatically interchangeable, travel limit and overload stop function.

Introduction

The microcomputer-controlled horizontal Tensile Testing Machine adopts a hydraulic force-adding computer to automatically collect data, print results, is easy to operate, has high test accuracy, and has the characteristics of stable force. Used for stretching, pulling, shearing, tearing, etc. of metals, non-metals Mechanical property testing can meet various testing methods and standards such as ISO and GB. This equipment is widely used in the wire and cable industry and quality inspection .

Features

1. Very good appearance design

2. Digital LCD display of force value, which can distinguish tension or pressure, and the LCD interface is clear and easy to read;

3. Three measurement units: N, Kgf and Lbf are optional and can be automatically interchanged;

4. The LCD display has backlighting and can be used in environments with insufficient light;

5. In a single measurement, the peak values ​​in both directions of tension and compression can be read, and can be cleared automatically and manually;

6. With stroke limit and overload shutdown functions.

7. The table-top single-column structure is beautiful and exquisite, and it can be operated easily and naturally while sitting.

8. The machine is equipped with a thermal printer that can automatically output test results.

9. It can store the results of 10 test reference points, automatically calculate the average value, automatically capture large values, and the force value at break.

10. Display mode: PK-2000 dark blue LCD with Chinese display, membrane touch keys, with the following functions:

①.Single test, manual 10-point statistics, and automatic calculation of average value and breaking value;

②. Automatic switching of multiple units such as kgf, Lbf, N;

③. Free point-taking function;

④. With multi-functional correction function;

⑤.Automatic printing function;

⑥. Using 24-bit AD acquisition, resolution 1/200000;

⑦. Choose 0 to 4 decimal places arbitrarily;

⑧. Power-on password protection function can effectively prevent non-operators from starting the machine;

⑨. The breakpoint ratio ranges from 0 to 99%. Users can set the appropriate break down time according to different materials.

⑩. The overload protection function can be set to effectively prevent the machine from overloading;

Breakpoint ratio setting range: 0~99% can be easily set according to the testing needs of different test pieces to achieve shutdown states at different positions.

Safety devices: overload, emergency stop device, upper and lower stroke limiting device.

Packing list：host X1, manual X1, warranty card X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
