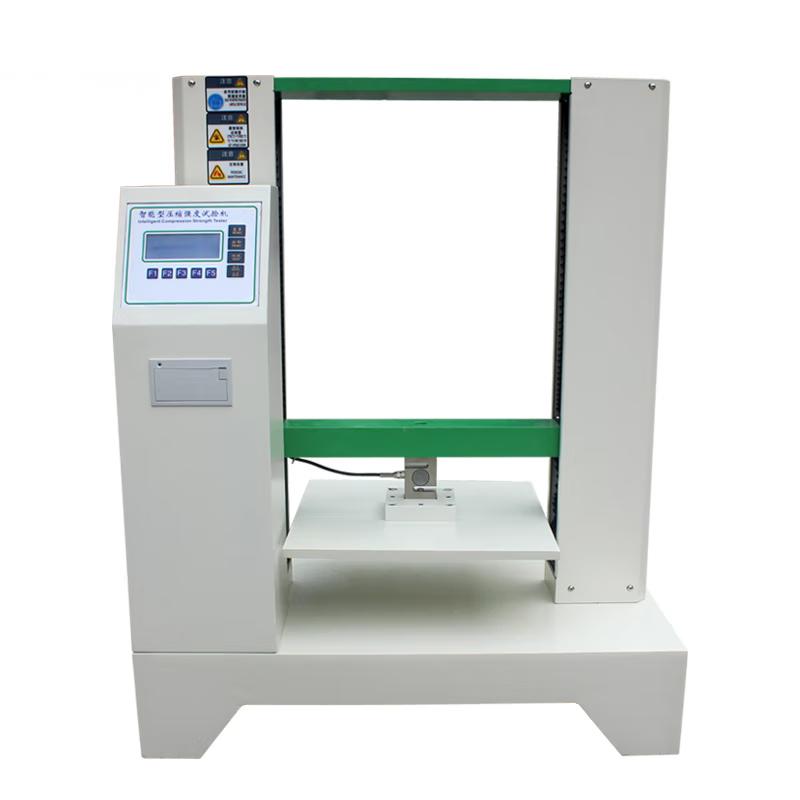

CHINA NBC-8509A paper tube compression testing machine, pressure Tester 400mm
SE
NBC-8509A
-
CHINA NBC-8509 Paper tube flat compression Strength Tester, compression testing machine 200mm$ 1131.00SE -
CHINA BLD-600D paper tube compression machine 400mm$ 1683.00SE -
CHINA BLD-600E Paper tube Compressive Tester 200 * 200 * 200mm$ 1109.00SE -
YINUO YN-ZG200 Paper tube compressire strength Tester 260 * 260 * 300mm$ 2322.00SE
Factory NBC-8509A Paper tube compression testing machineSPEC

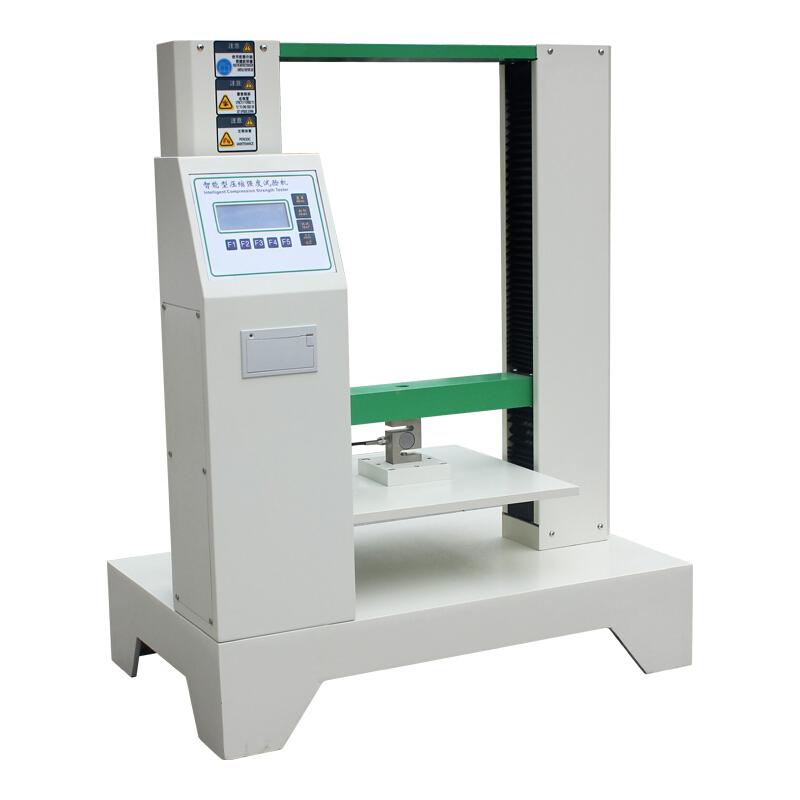

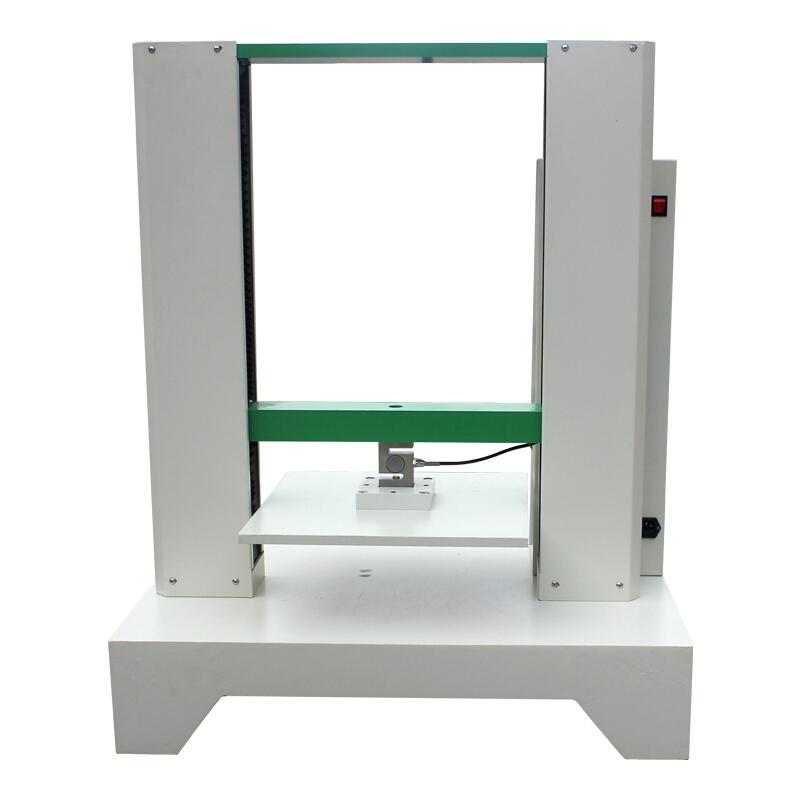

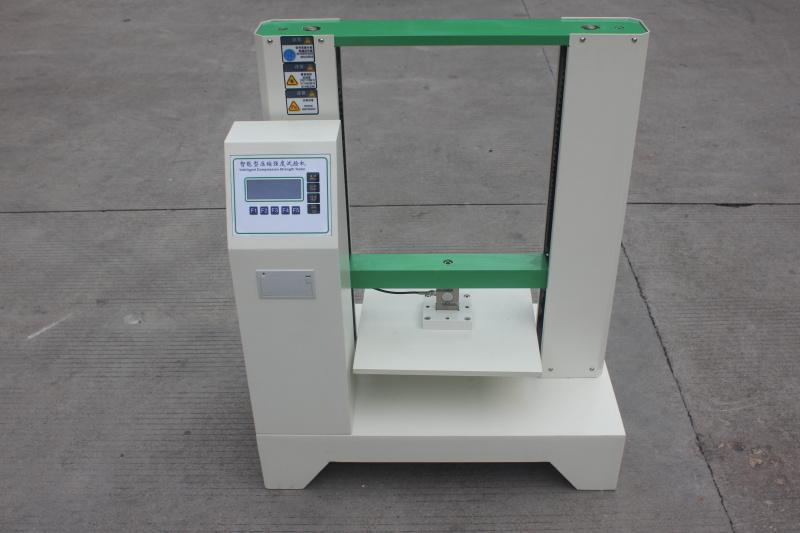

Factory NBC-8509A Paper tube compression testing machineDetails
Factory NBC-8509A Paper tube compression testing machinePacking list
- SKU
- NB044672
- Capacity
- 500 kg
- Paper tube outer diameter
- Within 400 mm
- Plate size
- 400*400mm
- Working Travel
- 600mm
- Pressurization speed
- 10~80mm/min
- Analysis
- 1/5000N
- Force resolution
- 0.1N
- Accuracy grade
- Level 1
- displacement unit
- mm、cm、in
- Unit switch
- kgf、gf、N、kN、Lbf
- stress unit
- MPa、kPa、kgf/cm2、lbf/in2
- Control mode
- Microcomputer Control (Optional Computer Operating system)
- monitor
- Electronic LCD display (optional computer display)
- software function
- Chinese and English language swap
- shutdown mode
- Overload shutdown, automatic shutdown for test piece damage, automatic shutdown for Upper/Lower limit setting
- Safety Devices
- Overload protection, limit element protection device
- Machine power
- AC variable frequency motor drive Controller
- Mechanical system
- High-precision screw
- Power
- AC220V/50HZ~60HZ 4A
- Weight
- Approx. 130 kg
Introduction

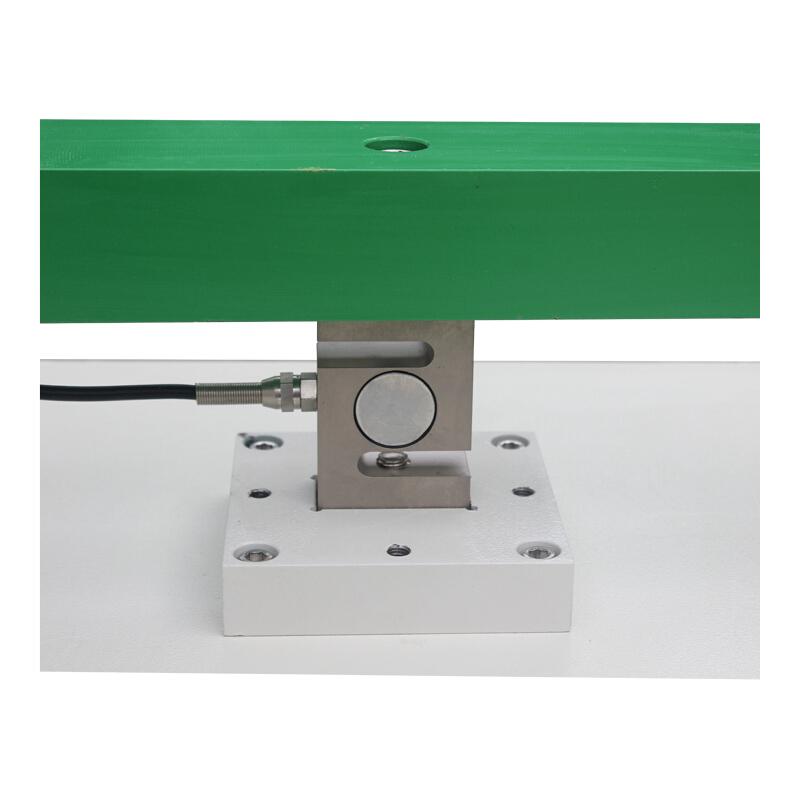

It is suitable for paper tubes with an outer diameter of 200mm. It is also called paper tube pressure testing machine and paper tube compression testing machine. It is the basic instrument for testing the pressure resistance of paper tubes. It adopts high-precision sensors and high-speed processing chip design to ensure sampling accuracy. .
Features
1. After the test is completed, it has an automatic return function to automatically determine the crushing force and automatically save the test data;

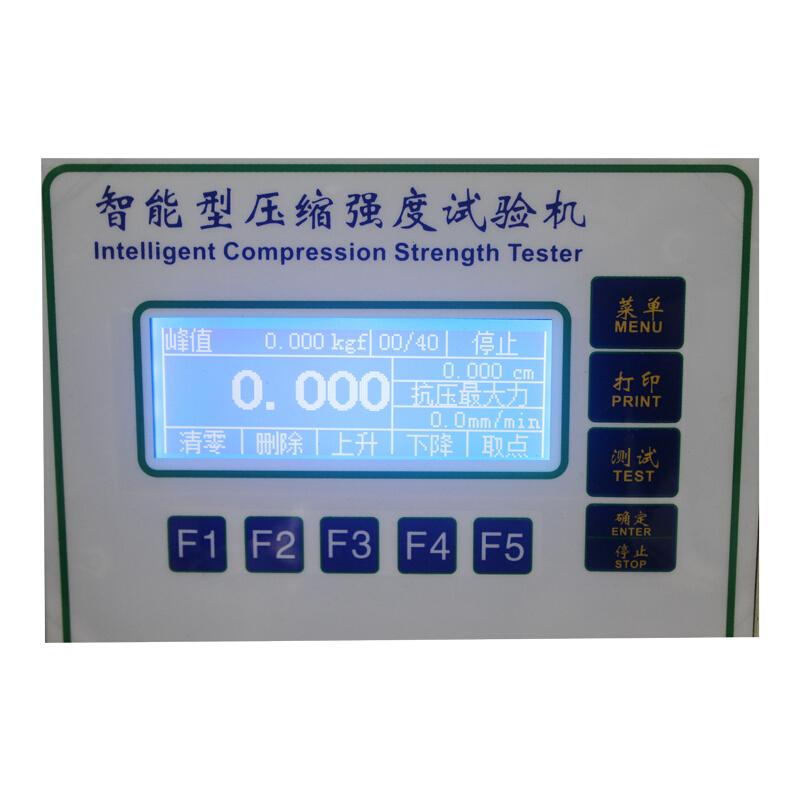

2. The speed is adjustable, the full Chinese LCD display operation interface, and a variety of units to choose from;
3. Equipped with a micro printer, which can directly print test results.
Standards compliant
BB/T 0032 paper tube
ISO 11093-9 Determination of paper and paperboard cores Part 9: Determination of flat crush strength
GB/T 22906.9 Determination of paper core Part 9: Determination of flat crush strength
GB/T 27591-2011 Paper bowl
