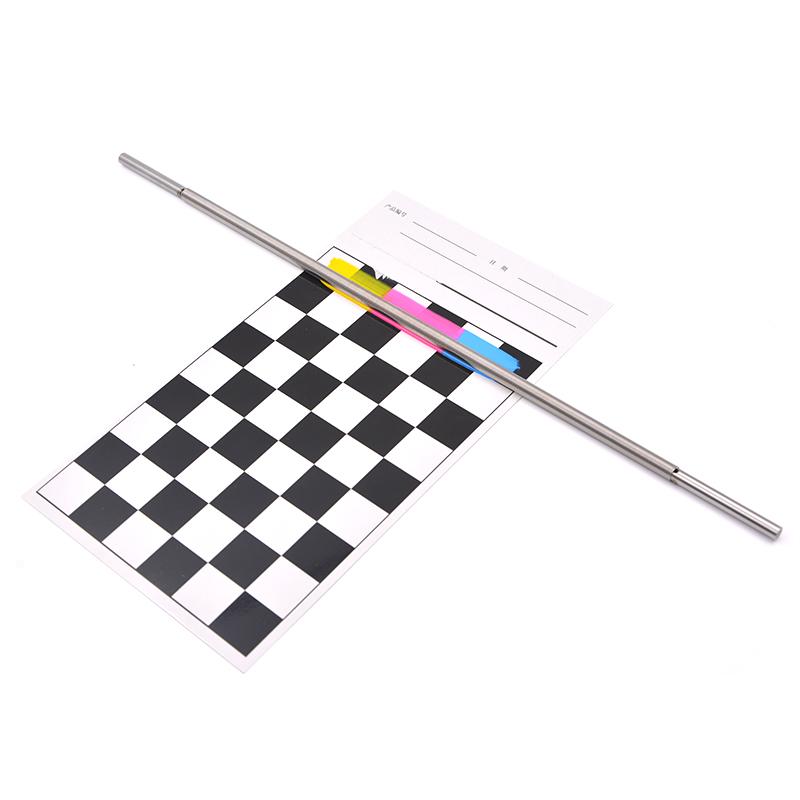

RDS 60 #1/4 "wire-wound Applicator rod film thickness 137.2μm Wire diameter 1.52mm

60# 1/4"

Applicator rod 1/4 "

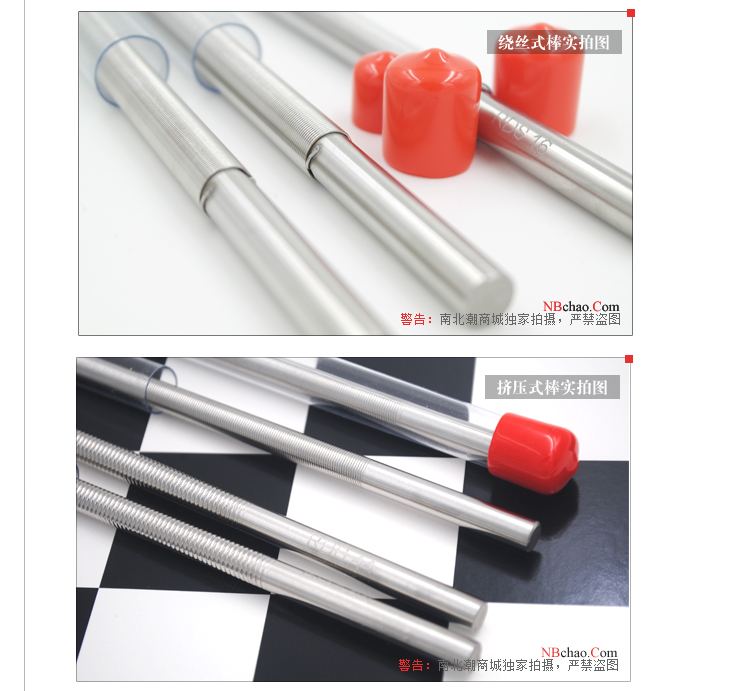

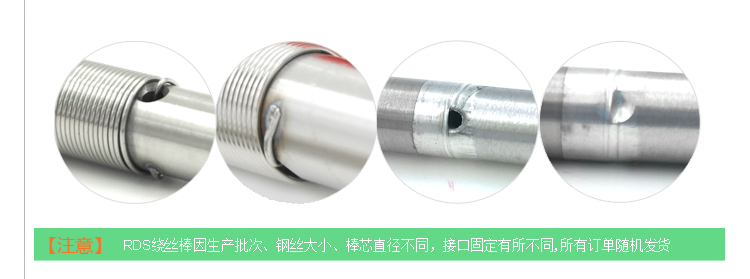

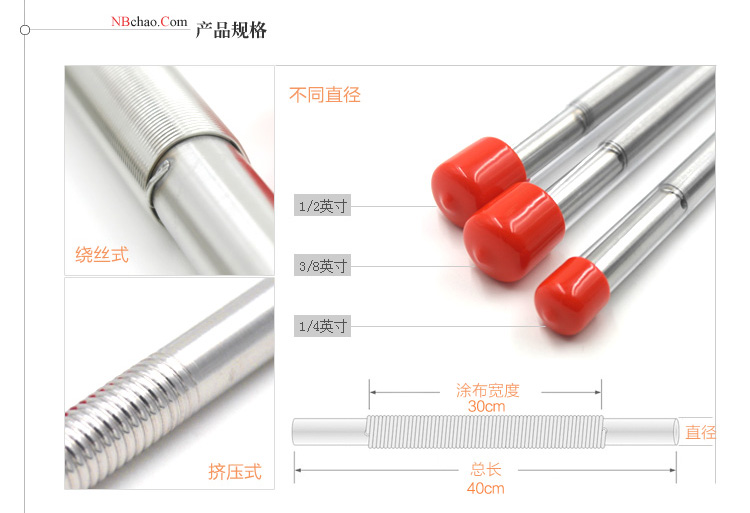

Winding process, Wire diameter 1.52mm, rod diameter 6.35mm, the main rod and steel wire are stainless steel, Proofing rod can film 137.2μm.

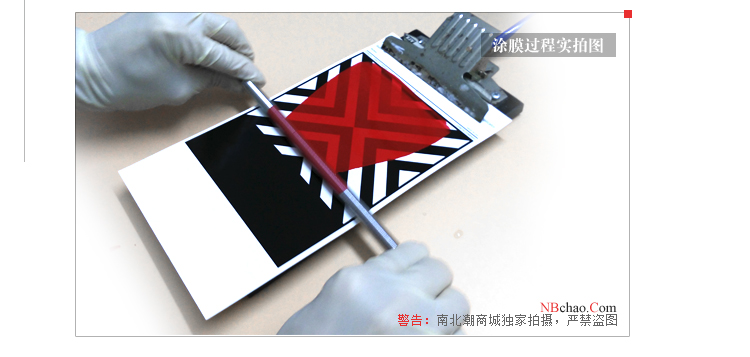

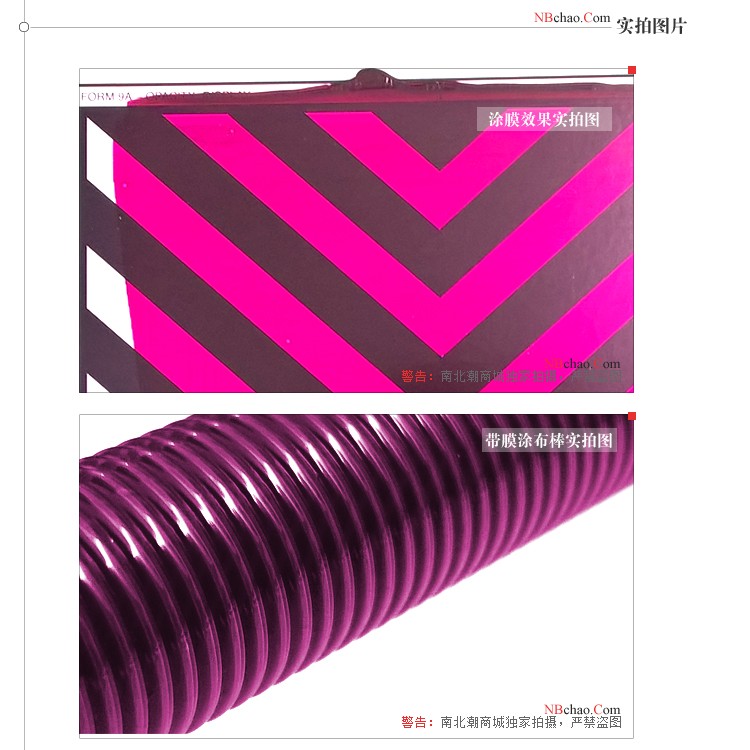

U.S. RDS#60 wire rod coater, also known as ink scraping rod, is suitable for various inks in the ink industry to scrape rod film, measure the covering power, color, gloss and other properties of the coating film and correct the color. The thickness of the coating film is 137.2 microns, the effective coating width is 300mm, and there are 50mm grip parts at both ends, which is convenient for users to have enough grip parts to better control the uniformity of force during operation. The RDS wire Bar Coater can not only coat flat substrates uniformly, but also prepare uniform coating films on substrates that are easy to bulge, such as paper and foil.

Optional

Note: Click on the accessory picture to view Details.

Packing list：Stainless Steel Rod X1 Transparent Encasement Hose X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
