IPRE JB300B Semi-Automatic Metal Pendulum Impact Tester

The maximum impact energy is 300J/150J, the pendulum pre-lift angle is 150 °, and the impact speed is 5.2m/s. It is installed and fixed with screws, easy to replace, equipped with safety protection pins, and equipped with safety nets.
Model：
Certificate
Contact
Details SPEC

Ipre JB300B Semi-Automatic Metal Pendulum Impact TesterSPEC

Ipre JB300B Semi-Automatic Metal Pendulum Impact TesterDetails

Ipre JB300B Semi-Automatic Metal Pendulum Impact TesterPacking list

SKU
NB045112
Maximum Impact Energy
300J/150J
Pendulum elevation angle
150°
The distance from the center of the pendulum axis to the center of the strike
750mm
Impact velocity
5.2m/s
Specimen bearing span
40mm
Arc radius of specimen support end
R1-1.5mm
Impact knife arc radius
R2-2.5mm
Impact arc radius
30°
Impact knife thickness
16mm
Specimen specification
10mmX10mmX55mm
Power
Three-phase four-wire system 50HZ 380V 180W (main motor]
standard
GB/T3038-2007、GB/T229-1994
Weight approx
480kg
JB300B
Semi-Automatic Metal Pendulum Impact Tester
The maximum impact energy is 300J/150J, the pendulum pre-lift angle is 150 °, and the impact speed is 5.2m/s. It is installed and fixed with screws, easy to replace, equipped with safety protection pins, and equipped with safety nets.

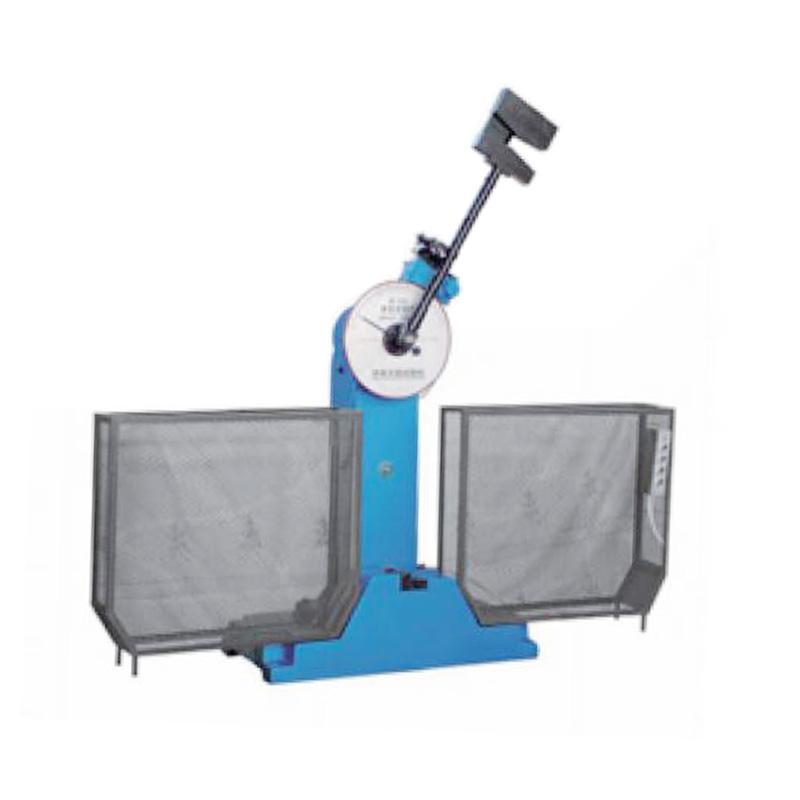

IPRE JB300B Semi-Automatic Metal Pendulum Impact Tester Picture

Features

  • The main machine of the testing machine is a single-supported column structure, cantilever hanging pendulum mode, and the pendulum hammer body is U-shaped;

  • The impact knife is installed and fixed with screws, which is simple and convenient to replace;

  • Simply supported beam support of the specimen;

  • The main machine is equipped with safety protection pins and is equipped with safety nets.

Scope of application

Impact testing machines are mainly used in metallurgy, boilers and pressure vessels, steel, steel pipes, hardware, casting, pumps, valves, fasteners, vehicles and ships, machinery manufacturing, petrochemical, aerospace and scientific research institutions and other industries.
