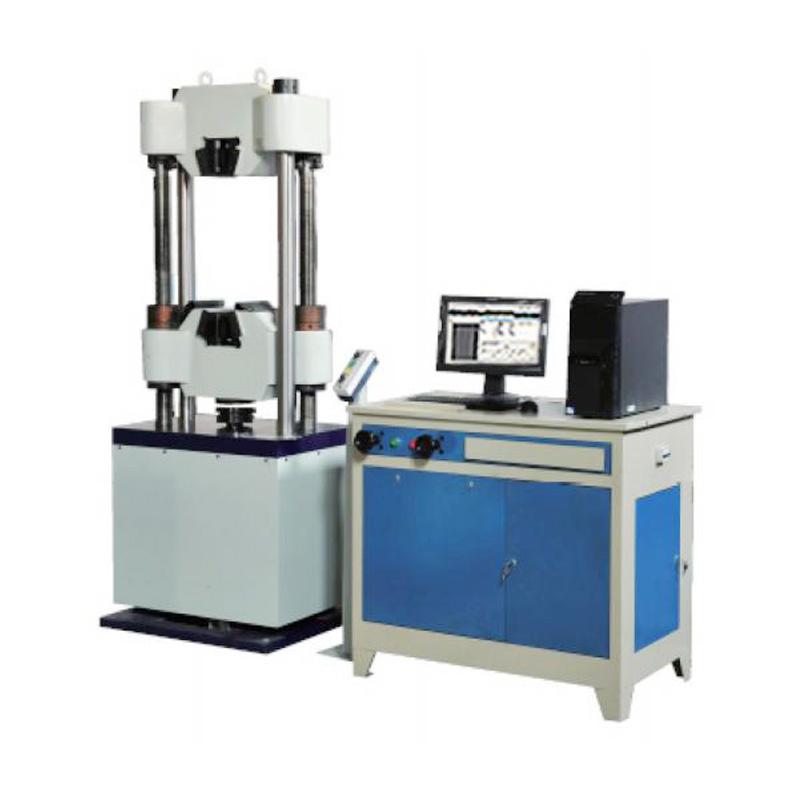

IPRE WAW1000D Microcomputer-controlled Electro-hydraulic Servo Hydraulic Universal Testing Machine 1000KN
WAW1000D
Ipre WAW1000D Microcomputer-controlled electro-hydraulic servo hydraulic universal testing machineSPEC
Ipre WAW1000D Microcomputer-controlled electro-hydraulic servo hydraulic universal testing machineDetails
Ipre WAW1000D Microcomputer-controlled electro-hydraulic servo hydraulic universal testing machinePacking list
- SKU
- NB045116
- Maximum test force
- 1000KN
- Force range
- 2% to 100% (or 1% to 100%)
- Test force indication relative error
- Better than indication +/- 1 %(≤ +/- 0.5%)
- Deformation Accuracy
- +/- 1% (or +/- 0.5%)
- stretch space
- 600mm
- compressed space
- ≥500mm
- clamping method
- Manual clamping/automatic clamping
- Circular specimen clamping diameter
- φ13mm-φ40mm
- Flat specimen clamping thickness
- 0-30mm
- Shear sample diameter
- ——
- Upper and lower platen size
- ——
- Maximum distance between bending fulcrums
- optional
- Oil Pump Motor Power
- 1.5KW
- Transverse beam up and down motor Power
- 0.5KW
- Deformation measurement device
- extensometer
- Safety protection device
- Software protection and mechanical limit protection
- Net Weight
- 3500
- Fixture form
- According to customer requirements, suitable fixtures can be configured, and special fixtures can be customized according to customer requirements.
Features
Gap sealing cylinder, two columns, two screw frame structure (commonly known as four columns);
Automatic hydraulic clamping system, convenient for clamping specimens, good stability;
Equipped with a photoelectric encoder, it can accurately measure the moving distance of the beam;
The integrated oil source design makes the structure of the whole machine more compact and reasonable, and reduces the floor space;
Manual and automatic dual control systems can be provided, and the operation mode can be selected independently.
Scope of application
Used for the measurement of tensile, compression, bending, shear of metal asphalt/geotechnical/concrete, fasteners, components. It is widely used in metallurgy, quality inspection centers, colleges and universities, industrial supplies, automobile/railway/shipbuilding, aviation manufacturing and other industries.
