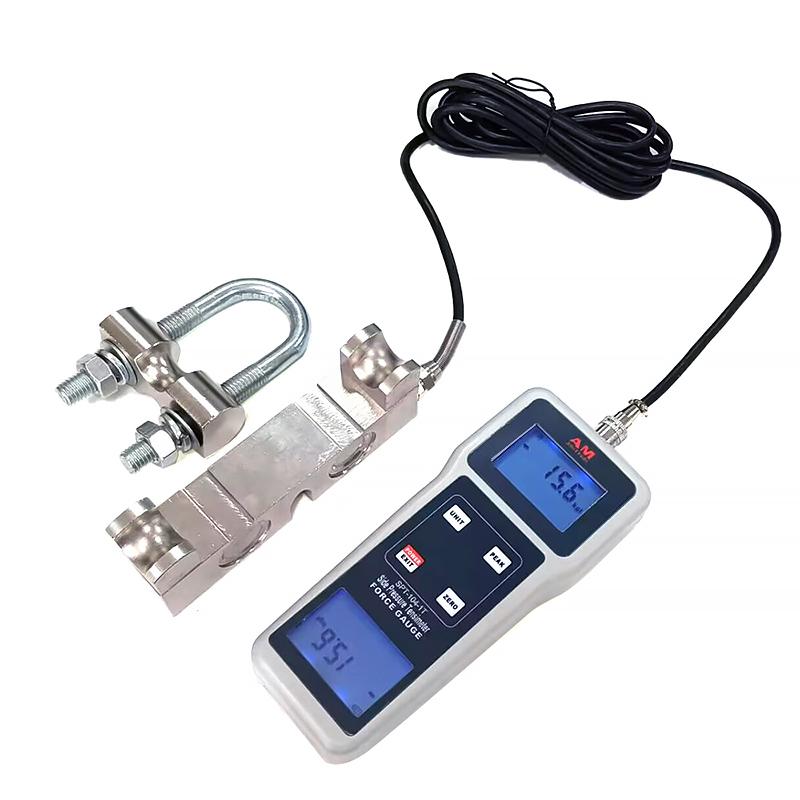

AMITTARI SPT-104-500K Measurement range +/- 4900N
SEMeasurement range +/- 500kgf; +/- 4900N; +/- 1100Lbf, Precision 0.5, Measured value peak, instantaneous value, display four large LCD, forward and reverse dual display, is a measurement of wind towers, signal towers\ power transmission systems and other rope tension of a special instrument.
$469.00/set
PromotionLoading...
Coupon
Model：
SPT-104-500K
AMITTARI SPT-104-500K side tensIon MeterSPEC
AMITTARI SPT-104-500K side tensIon MeterDetails

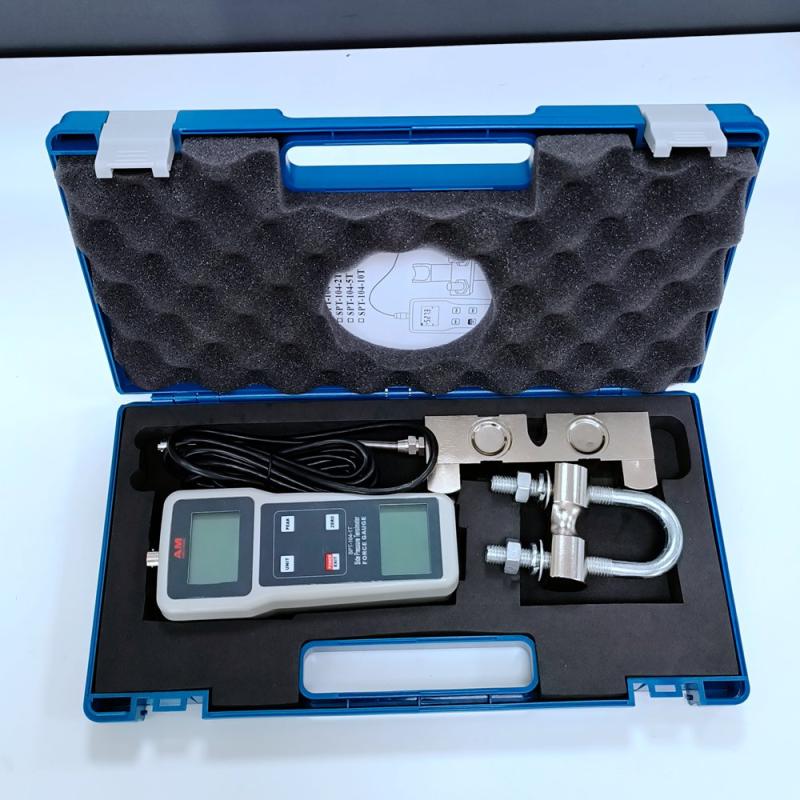

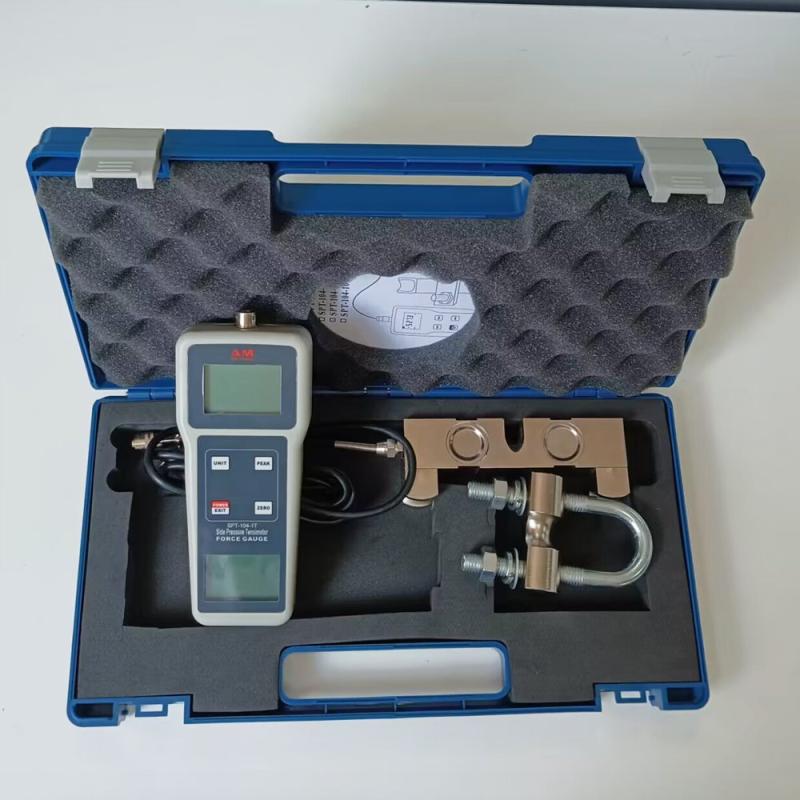

AMITTARI SPT-104-500K side tensIon MeterPacking list
- SKU
- NB045218
- Measurement range
- ±500kgf；±4900N；±1100Lbf
- Resolution
- 0.01kgf (<100kgf)、0.1kgf (≥100kgf)；0.1N (<1000N)、1N (≥1000N)；0.1Lbf (<1000Lbf)、1Lbf (≥1000Lbf)
- Accuracy
- Level 0.5
- Accuracy
- +/- 0.5% FS (range) +/- 1 digital peak
- unit
- kgf, N, Lbf
- Measured value
- Peak, instantaneous value
- show
- Four-digit large LCD, forward and reverse dual display
- shutdown mode
- 10 minutes automatic shutdown or manual shutdown
- Backlight
- Blue backlight
- allowable load
- 150% F.s (buzzer alarm when it exceeds 110% F.s)
- Power
- 2 AA batteries or 5V DC Power
- Operating temperature
- 0℃~40℃
- Operating humidity
- < 80%
- Operating Environment
- No source and corrosive medium around
- Net Weight
- 1165g
- Host size
- 175mmx80mmx36mm
- Sensors size
- 140mmx65mmx105mm
SPT-104-500K
side tensIon Meter
Measurement range +/- 500kgf; +/- 4900N; +/- 1100Lbf, Precision 0.5, Measured value peak, instantaneous value, display four large LCD, forward and reverse dual display, is a measurement of wind towers, signal towers\ power transmission systems and other rope tension of a special instrument.
Introduction

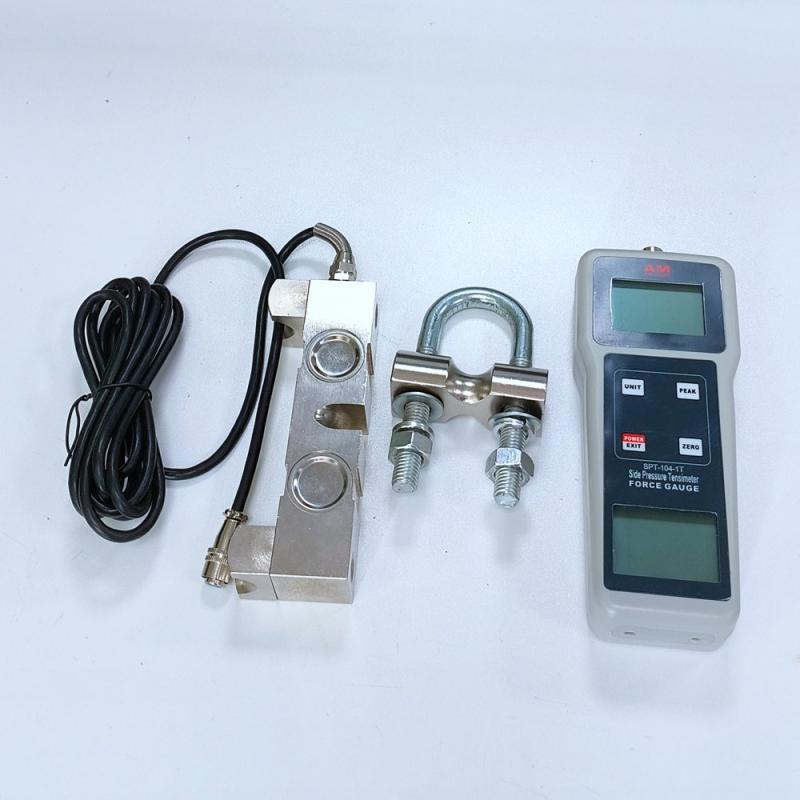

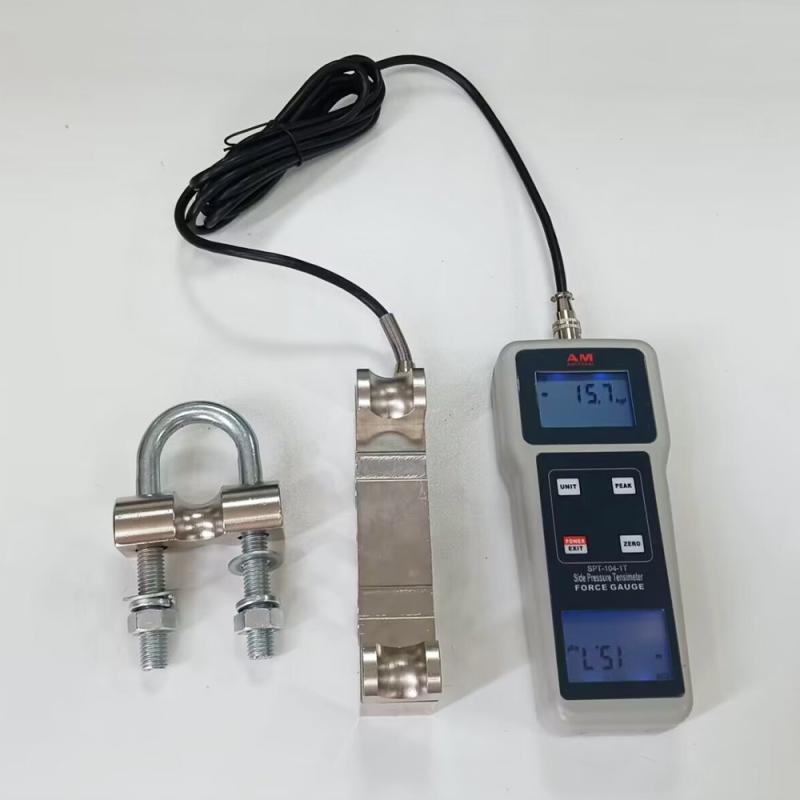

The side pressure Tension Tester is a special instrument for measuring the tension of ropes in wind towers, signal transmission towers, power transmission systems, etc. It has the advantages of easy operation and portability . It also has various test modes for the convenience of Testers.
Features
High precision and high resolution. Digital display, no parallax.
Four measurement units of N (Newton), kg (kilogram), lb (pound), and g (gram) are available for selection and mutual conversion.
Peak hold function. Maintain peak value display until manually cleared to zero.
It can be powered by alkaline batteries; it can also be powered by a 5V DC power supply.
Series model
| model | Measuring range | resolution |
| SPT-204-500K | ±500kgf ±4900N ±1100Lbf | 0.01kgf (<100kgf) 0.1kgf (â¥100kgf) 0.1N (<1000N) 1N (â¥1000N) 0.1Lbf (<1000Lbf) 1Lbf (â¥1000Lbf) |
| SPT-204-1T | ±1000kgf ±9800N ±2200Lbf | 0.01kgf (<100kgf) 0.1kgf (â¥100kgf) 0.1N (<1000N) 1N (â¥1000N) 0.1Lbf (<1000Lbf) 1Lbf (â¥1000Lbf) |
| SPT-204-2T | ±2000kgf ±16900N ±4400Lbf | 0.01kgf (<100kgf) 0.1kgf (â¥100kgf) 0.1N (<1000N) 1N (â¥1000N) 0.1Lbf (<1000Lbf) 1Lbf (â¥1000Lbf) |
| SPT-204-5T | ±5000kgf ±49000N ±11000Lbf | 0.01kgf (<100kgf) 0.1kgf (â¥100kgf) 0.1N (<1000N) 1N (â¥1000N) 0.1Lbf (<1000Lbf) 1Lbf (â¥1000Lbf) |
| SPT-204-10T | ±10000kgf ±98000N ±22000Lbf | 0.01kgf (<100kgf) 0.1kgf (â¥100kgf) 0.1N (<1000N) 1N (â¥1000N) 0.1Lbf (<1000Lbf) 1Lbf (â¥1000Lbf) |
| Other parameters | ||
| Accuracy | Level 0.5 | |
| Accuracy | ±0.5%FS(range)±1 digital peak | |
| unit | kgf, N, Lbf | |
| Measurable value | peak value, instantaneous value | |
| show | Four-digit large LCD, dual forward and reverse displays | |
| shutdown mode | Automatic shutdown or manual shutdown in 10 minutes | |
| backlight | blue backlight | |
| allowable load | 150%Fs (when exceeding 110%Fs, there will be a buzzer alarm) | |
| power supply | 2 AA batteries or 5V DC power supply | |
| Operating temperature | 0℃~40℃ | |
| Working humidity | < 80% | |
| Operating Environment | There are no seismic sources or corrosive media around | |
| Net Weight | 1165g | |
| Host size | 175mmx80mmx36mm | |
| Sensor size | 140mmx65mmx105mm | |
FAQ
QI want to measure the cable tension of the wind power tower, which type of side tension meter should I choose?
A
The SPT-204-500K is recommended. Measurement range is +/- 500kgf, which can fully meet the conventional tension detection requirements of wind tower cables. This instrument has an accuracy of up to 0.5 and a peak hold function, which is suitable for recording the maximum tension value of the cable under wind load.
QWe need to test different specifications of cable tension in power construction. How to choose a model?
A
It is recommended to choose according to the maximum breaking force of the steel cable: SPT-204-500K (500kgf) for ordinary steel cable, SPT-204-2T (2000kgf) for heavy steel cable. These models support Newton, kilogram, pound three Unit switches, field reading is particularly convenient, and 150% overload protection can avoid instrument damage.
