HANNA HI2003 Benchtop Conductivity Meter/Total Solid solubility/salinity/Temperature Meter

SE
Measurement range EC: 0.00 to 29.99 μ S/cm, the temperature compensation mode is automatic temperature (ATC) compensation, the electrode type is automatically identified, and the measurement item mode is automatically entered, and the electrode sensor automatically stores calibrated data.
$1081.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

HANNA HI2003 Desktop Conductivity MeterSPEC

HANNA HI2003 Desktop Conductivity MeterDetails

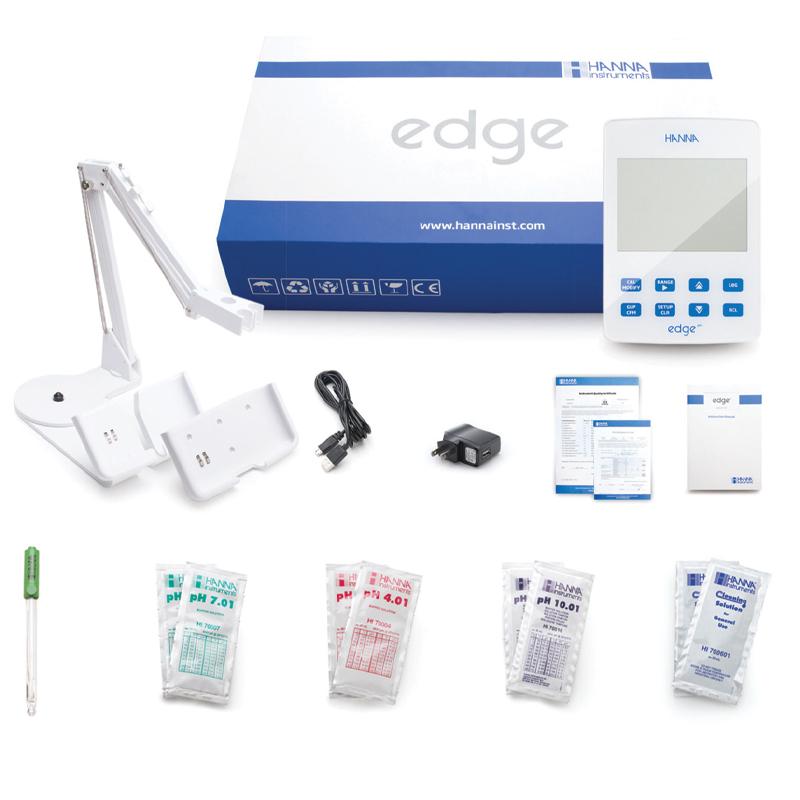

HANNA HI2003 Desktop Conductivity MeterPacking list

SKU
NB045246
EC range
0.00 to 29.99 μS/cm, 30.0 to 299.9 μS/cm, 300 to 2999 μS/cm; 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm; up to 500.0 mS/cm (actual/absolute conductivity, closing temperature compensation)
Resolution-EC
0.01μS/cm、0.1μS/cm、1μS/cm、0.01 mS/cm、0.1 mS/cm
Accuracy @25 ℃ -EC
+/- 1 % +/- ( 0.05 μS/cm or 1 word), whichever is larger
Calibrated mode - EC
Automatic calibration of 0.00μS/cm in the air under electrode drying; built-in standard calibrating point automatic identification and calibrating; built-in calibrating point: 84μS/cm, 1413μS/cm, 5.00mS/cm, 12.88mS/cm, 80.0mS/cm, 118.8mS/cm
TDS range
0.00~14.99 mg/L (ppm), 15.0~149.9mg/L (ppm), 150~1499mg/L (ppm); 1.50~14.99g/L, 15.0~100.0g/L; up~ 400.0g/L (actual/absolute total solids solubility, closing temperature compensation), TDS conversion factor: 0.80
Resolution-TDS
0.01mg/L(ppm)、0.1mg/L(ppm)、1mg/L(ppm)、0.01g/L、0.1 g/L(ppt)
Accuracy @25 ℃ -TDS
+/- 1 % +/- ( 0.03mg/L or 1 word), whichever is greater
Calibrated Mode - TDS
Conductivity Detector calibrated without total solids solubility
TDS conversion factor
0.45~ 0.80 adjustable (default 0.5)
Salinity range
Actual salinity: 0.00~42.00 PSU, seawater salinity: 0.00~80.00ppt (g/L); salinity: 0.0~400.0% NaCl
Salinity resolution
0.01 PSU、0.1g/L、0.1%
Salinity Accuracy @25 ℃
Reading +/- 1%
Salinity calibrated mode
PSU and g/L salinity units do not need to be calibrated according to conductivity calibrating results;% units can optionally be calibrated with HI7037 salinity standard buffer (100%)
Temperature measurement Accuracy
±0.5℃、±0.9°℉
Electrode type
HI763100 Customized built-in temperature transducer EC/TDS special electrode, Interface type: 3.5mm, 1 meter wire length
Temperature compensation
Automatic temperature (ATC) compensation, -5~ 100 ℃ (32~ 212 ° F); when measuring absolute conductivity, select off temperature compensation (NOTC)
compensation coefficient
Conductivity temperature coefficient range: 0.00~6.00%/℃
GLP
Calibrated data includes information such as date, time and calibrated point
storage mode
Automatically store 1000 sets of measurement data, store 200 sets of measurement data at intervals; manually store 600 sets of measurement data
Interface
Dual communication interface mode: USB Interface and micro Interface
Power mode
Built-in rechargeable battery, 5VDC power adapter and special charging multi-function bracket
Operating Environment
0 to 50℃(32 to 122 F)
Size Weight
Host size: 202x140x12.7mm, host Weight: 250g
HI2003
Desktop Conductivity Meter
Measurement range EC: 0.00 to 29.99 μ S/cm, the temperature compensation mode is automatic temperature (ATC) compensation, the electrode type is automatically identified, and the measurement item mode is automatically entered, and the electrode sensor automatically stores calibrated data.

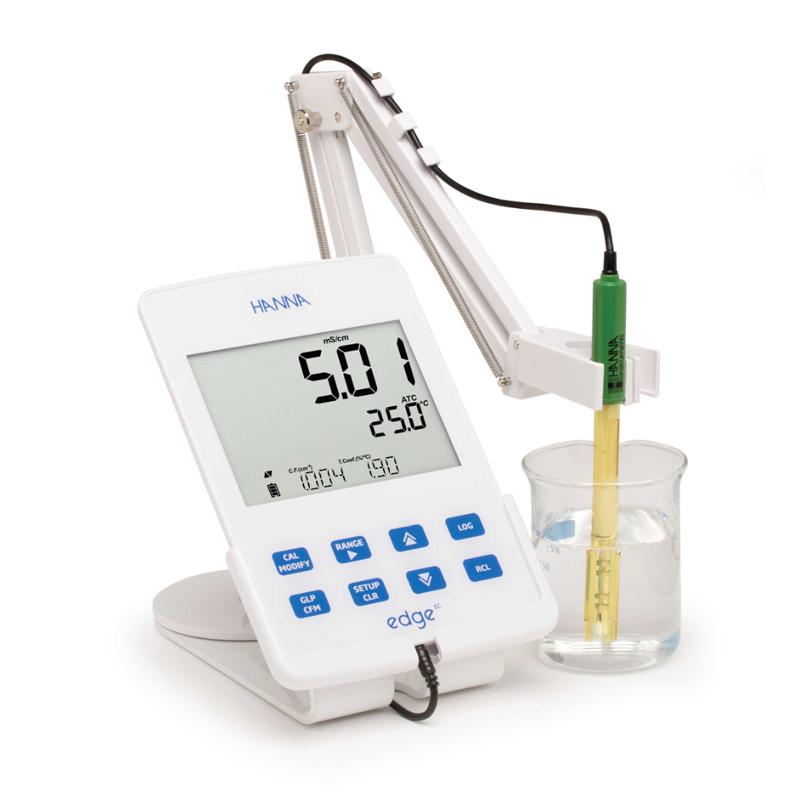

HANNA HI2003 Benchtop Conductivity Meter/Total Solid solubility/salinity/Temperature Meter Picture

Introduction

HI2003 desktop conductivity meter is a newly launched ultra-thin microcomputer conductivity-total solid solubility-salinity-temperature measuring instrument, which is an excellent work of design capabilities, product integration, and R&D teams.

Features

  • Powerful management functions: automatically identify electrode types, automatically enter measurement project mode, and automatically store calibration data for electrode sensors.

  • Data management function: 1000 sets of data including measurement data, GLP data, time and date are automatically stored (interval: 200 sets of data storage; manual: 600 sets of data storage), USB data interface realizes measurement data output, micro USB interface realizes Data transmission and charging functions ensure further analysis and management of measurement data.

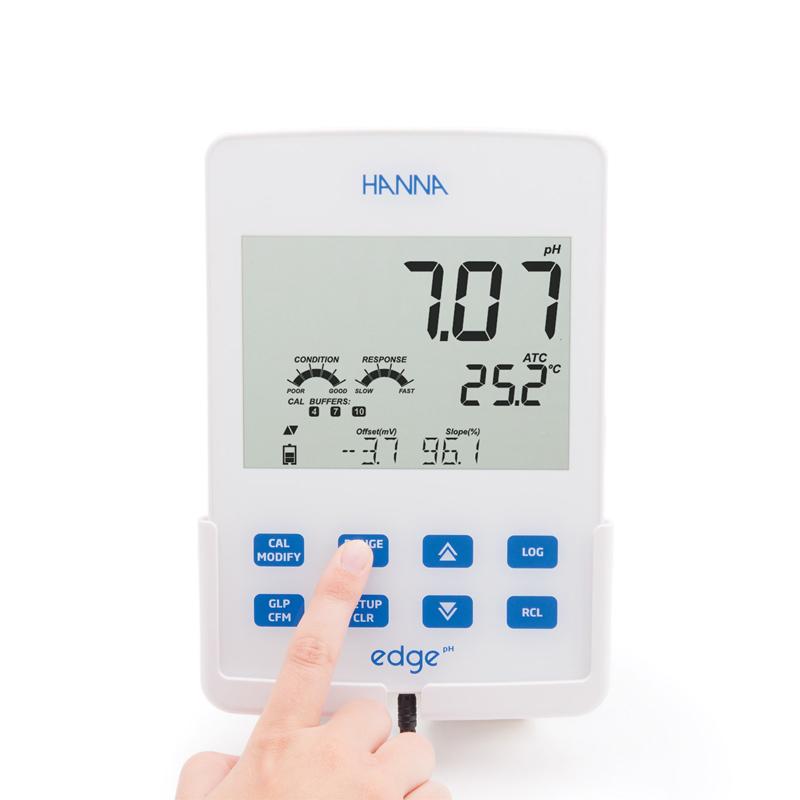

  • Ultra-large screen, on-screen operation step prompts: 5.5-inch ultra-large screen display, achieving a 150° Viewing Angle range and clear readings from 5 meters away; concise full-text information prompts are displayed at the bottom of the screen, eliminating troublesome abbreviations, making operations more convenient and faster.

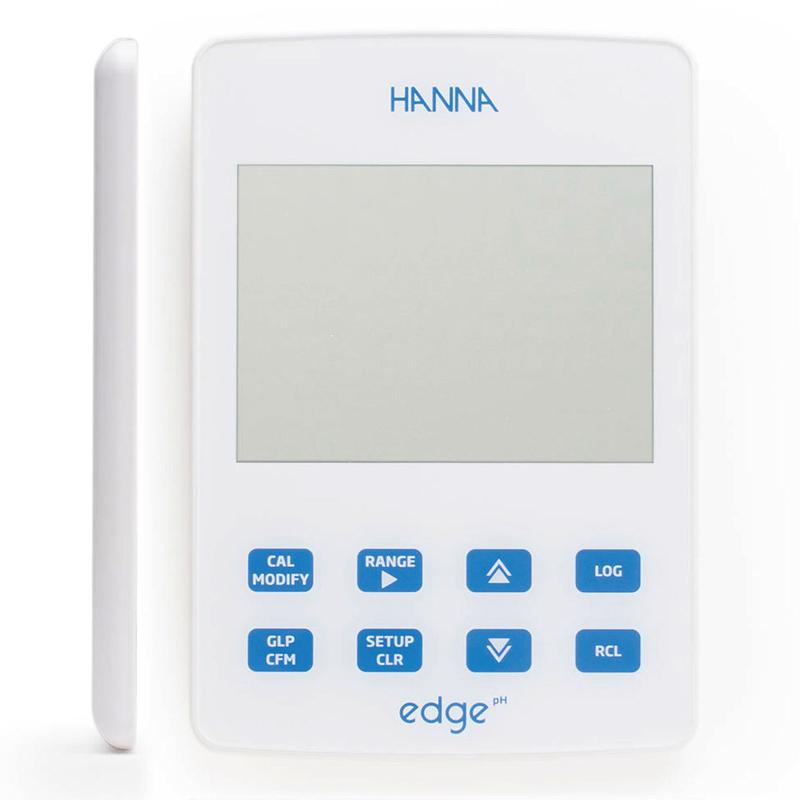

  • Ultra-thin design, touch operation: 12.7mm ultra-thin body, 250g lightweight design, stylish and beautiful touch buttons, integrated screen and button design, keeping you away from sample residue on the keyboard. The three-in-one design of laboratory desktop, wall-mounted, and handheld models saves available space, and the base charging design is more user-friendly.

  • 3.5mm digital electrode interface, more convenient and faster operation: equipped with HI763100 customized built-in temperature sensor four-ring EC/TDS digital electrode, the electrode body has a built-in micro memory chip, which can automatically identify the electrode type, ID and calibration details when connected to the host.
