HUINUO TM1000pro High-accuracy Wire-rod Film Coating Apparatus

SE Boutique

Wire Spreader, Servo Motor, Easy Installation Spreader Head, Easy Installation Wire Spreader, High Smoothness Full Tempered Glass Mesa, Standard high-precision imported Film Applicator for film Spreader.

$1936.00/set

PromotionLoading...

Coupon

Model：

TM1000pro

Certificate

HuiNuo

Chinese general agent

Contact

Details SPEC Con VIDEO CAT OI

HuiNuo TM1000pro Automatic Film ApplicatorSPEC

HuiNuo TM1000pro Automatic Film ApplicatorDetails

HuiNuo TM1000pro Automatic Film ApplicatorPacking list

SKU: NB045279

Coating method: Rod

Coating speed: 1~ 300Mm/s stepless speed regulation (can be customized)

Substrate clamping method: fixture

Coating table material: Glass plate

Coating table size: 600*300mm

Effective coating Area: 400 * 300Mm (can be customized)

Film thickness: Controlled by bar, with high-precision imported bar

Mayer Rod Accuracy: ±0.001mm

Drive motor: Servo motor

Power: 600w

Operating language: Chinese (can be customized in English)

Display: Color LCD touch screen

Host Power Supply: 220V/50HZ (can be customized 110V/60HZ)

Dimension: 658*438*205mm（L*W*H）

Weight: 39.7kg

optional feature: Drawdown blade, heating, vacuum adsorption

TM1000pro

Automatic Film Applicator

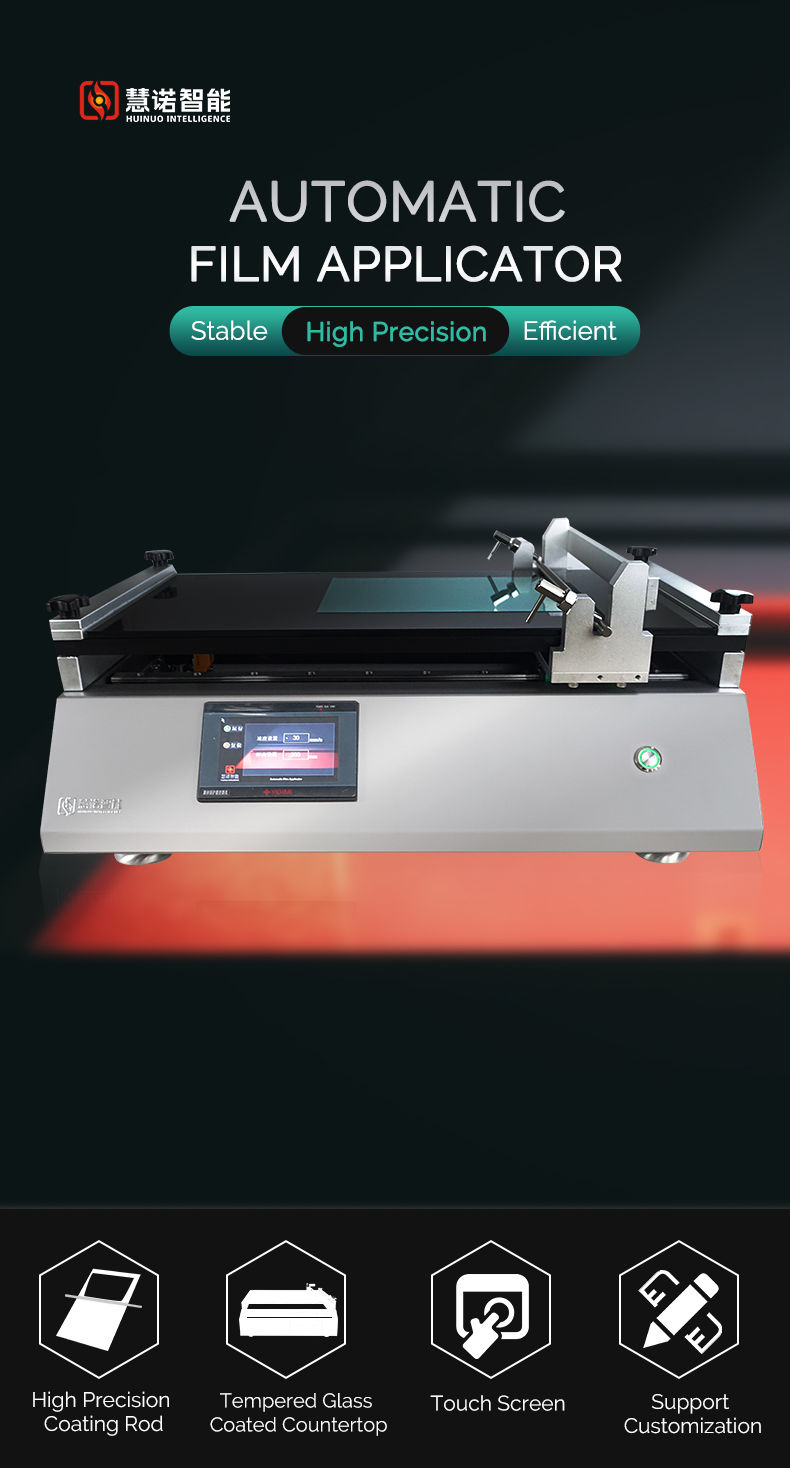

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 1

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 2

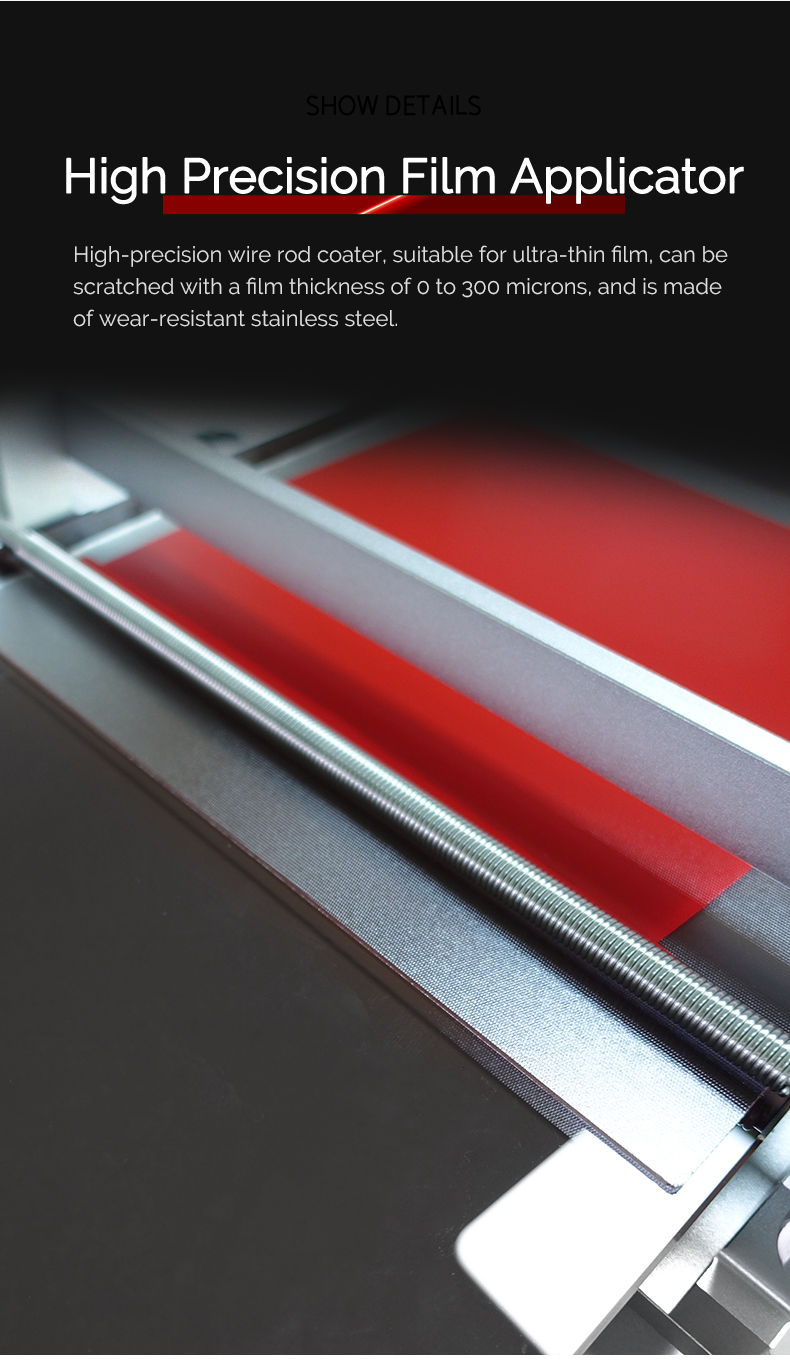

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 3

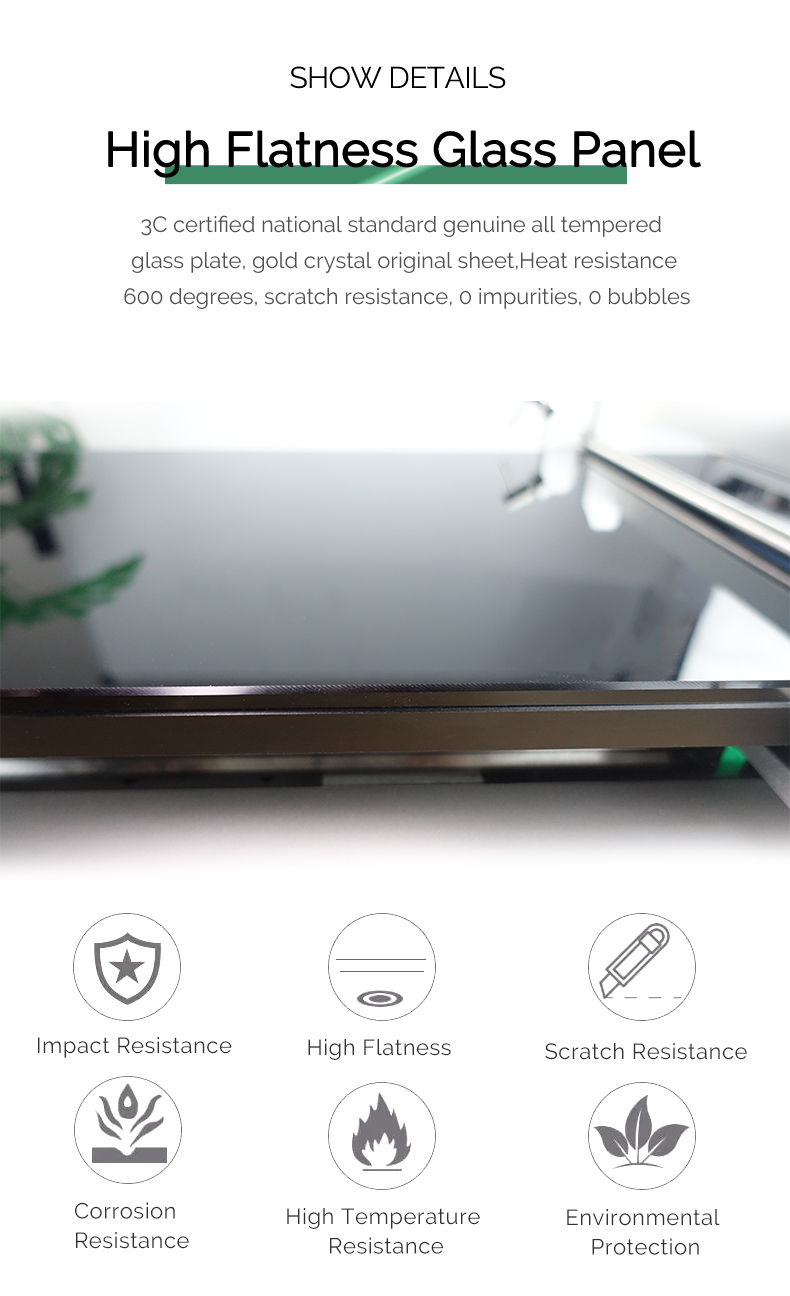

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 4

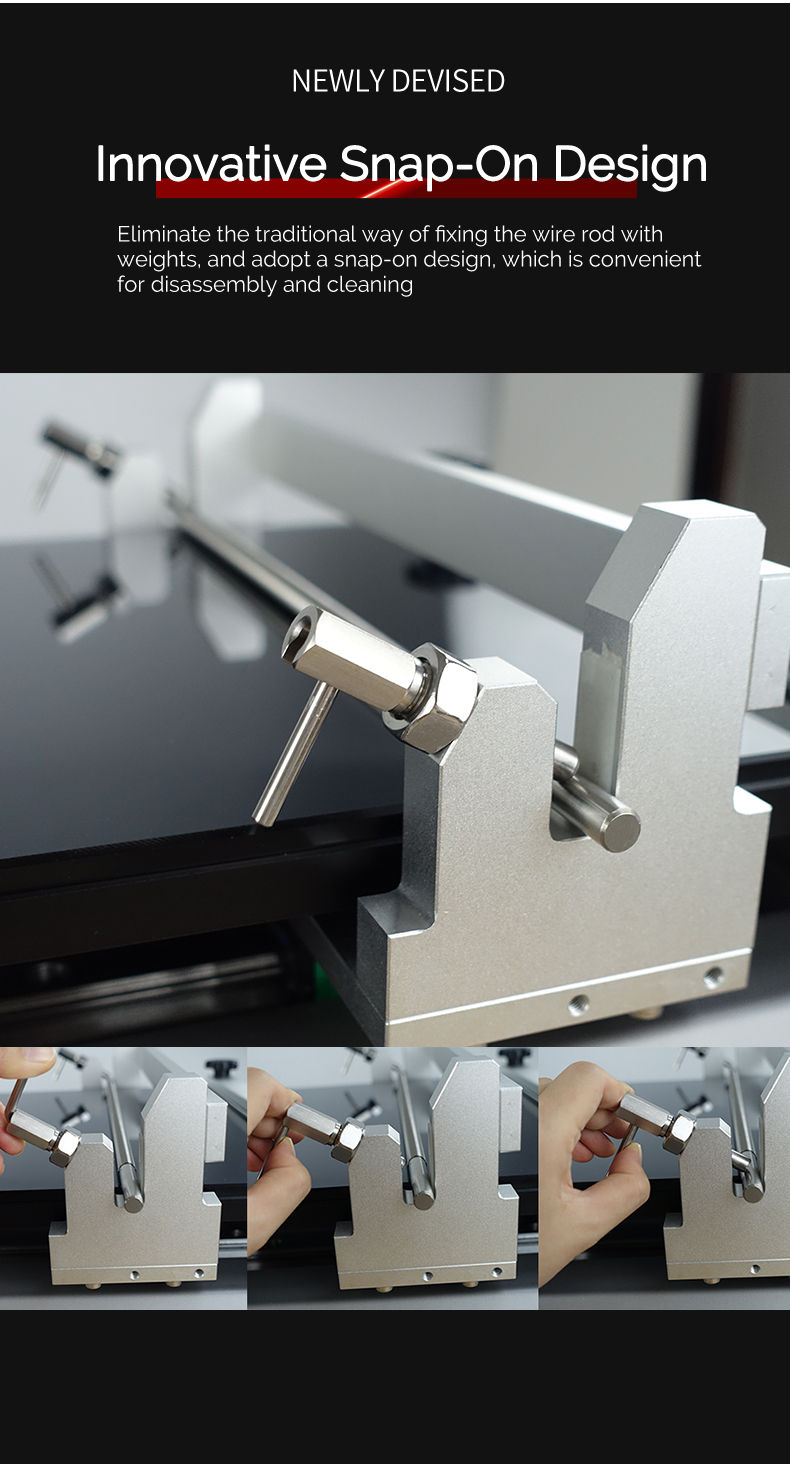

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 5

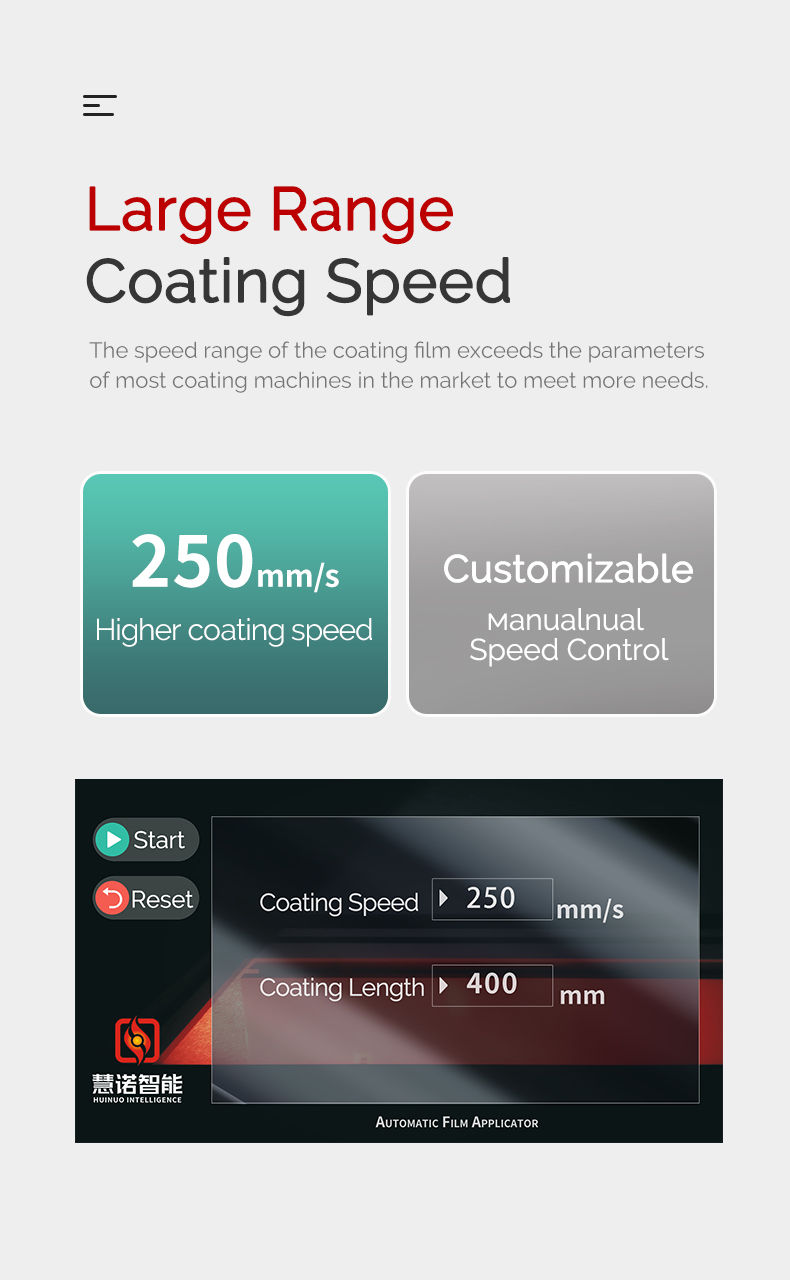

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 6

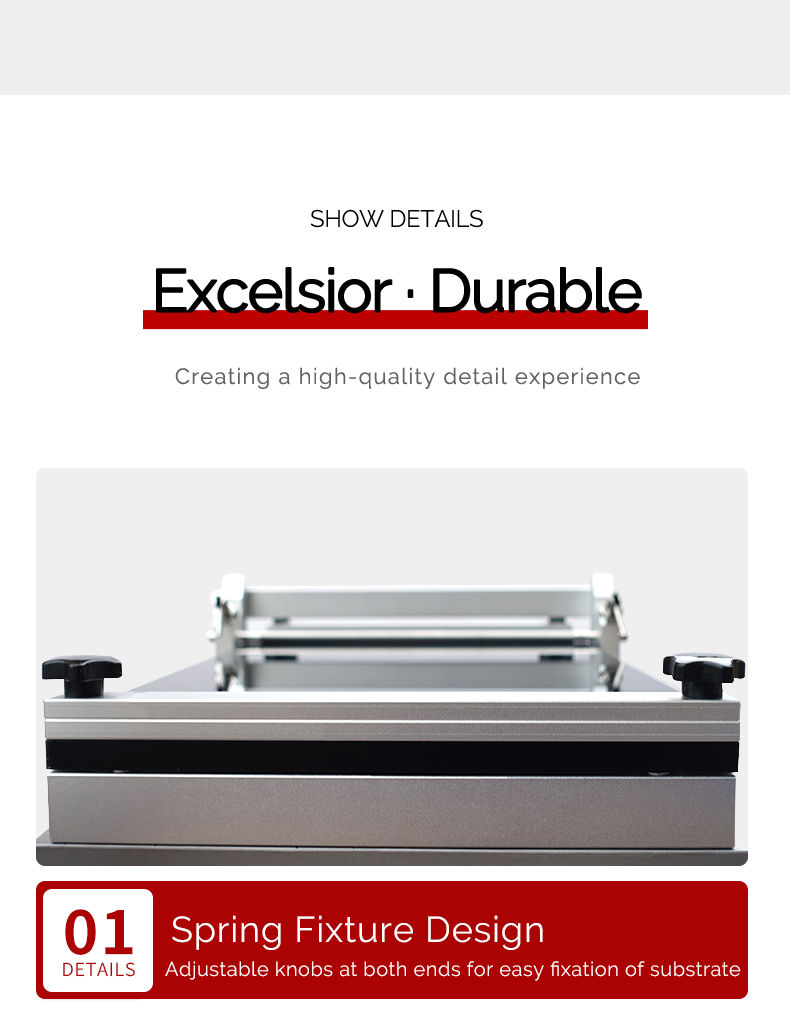

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 7

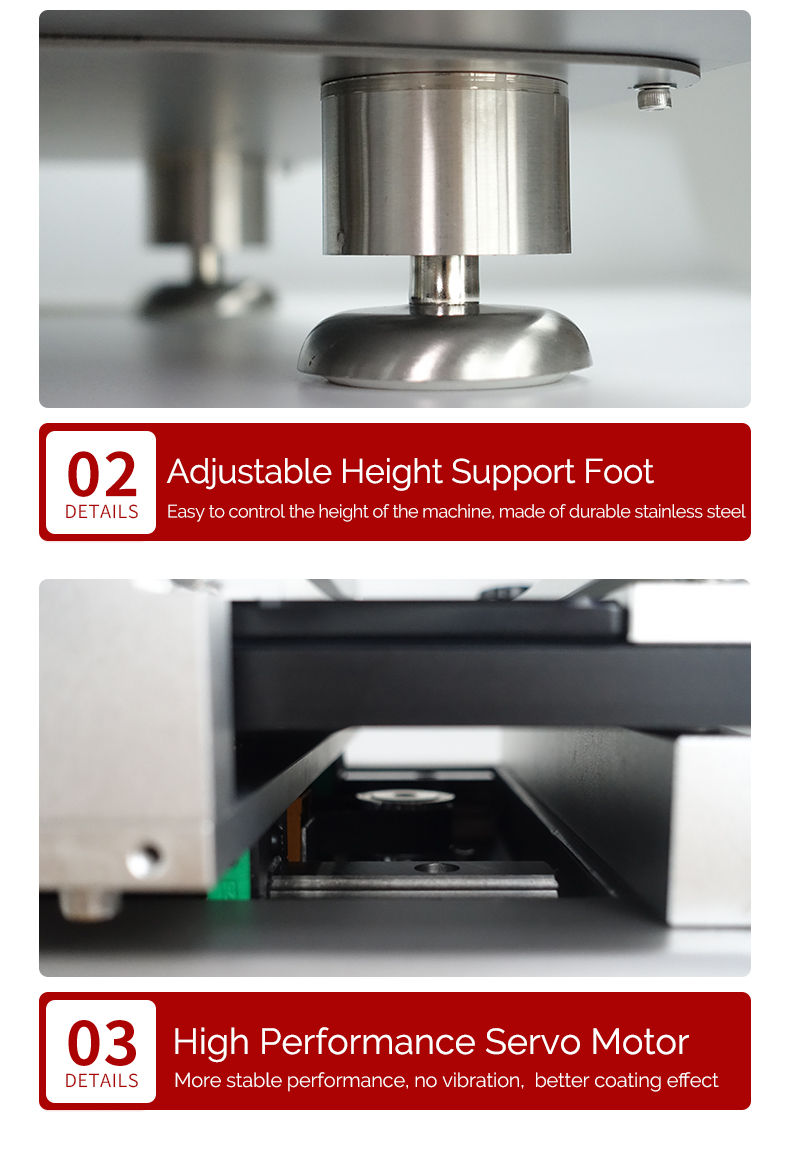

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 8

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 9

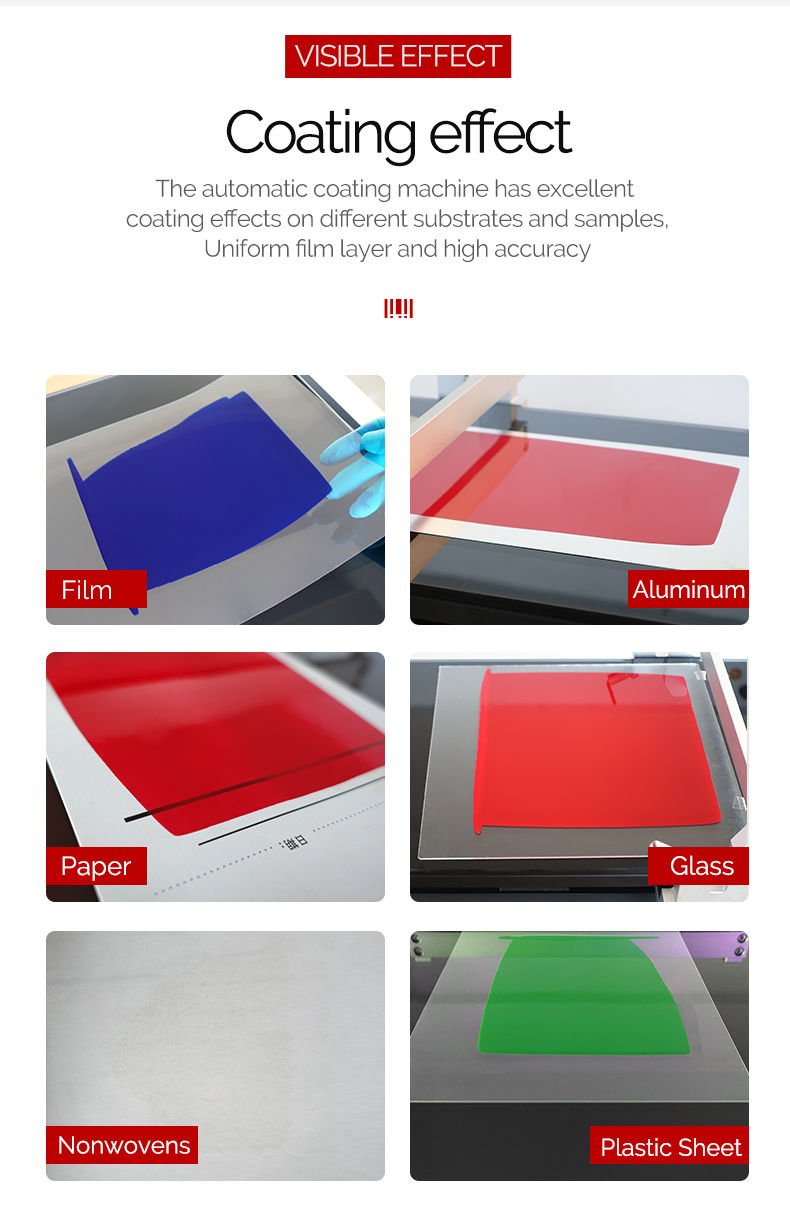

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 10

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 11

product description

The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.

This coating machine is a basic wire bar coating machine. It adopts a new wire bar installation method and has speed control and coating length adjustment functions. It is suitable for high-precision automatic coating in laboratories, and in university research institutes and new materials. , lithium battery and other laboratories for film production and proofing.

Applications

The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.

Features

1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant

2) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision

3) Aluminum alloy hard oxidation surface treated coated base plate, wear-resistant and flat, comes with flatness accuracy calibration certificate

4) Touch screen control panel, easy to operate

5) Coating length and coating speed can be adjusted freely

FAQ

QWhich instrument should be selected for the film test of lithium battery paste in the laboratory?

A TM1000pro adopts imported high-precision bar, Spreader accuracy can reach +/- 0.001mm, which can ensure the uniformity and conformity of lithium battery slurry Spreader. Servo motor drive with 1-300mm/s stepless speed regulation can precisely control Spreader speed, especially suitable for Moulding requirements when developing lithium battery materials.

QDo polymer materials film experiment, this Film Applicator is applicable?

A Applicable. TM1000pro is specially designed for university research institutes and New material laboratories. It is equipped with a heat-resistant 600 ° C tempered Glass countertop and a hard aluminum oxide alloy baseplate, which can withstand various conditions in the polymer material film process. The application length and speed can be adjusted freely, and with a high-precision bar, it can ensure the preparatory mass of the polymer film.

QI need to do a Repeatability test on the Coating sample. What are the advantages of this Film Applicator?

A The automated Spreader function of the TM1000pro can significantly improve the test Repeatability. The servo motor ensures that the speed of each Spreader is stable, and the imported bar guarantees the same film thickness. The touch screen operation is simple and the parameter setting is accurate, which avoids the artificial error of manual film. It is especially suitable for the comparison test and quality control of Coating samples.

QThe laboratory needs to do the film test of lithium battery paste. Do you have a suitable Automatic Film Applicator?

A It is recommended that you use HuiNuo TM1000pro Automatic Film Applicator. This device adopts the original imported bar, and the film uniform accuracy is as high as +/- 0.001mm, which is especially suitable for applications requiring high-precision Spreader such as lithium battery paste. Servo motor drive and 1~ 300mm/s stepless speed regulation can ensure the stability and control of the Spreader process and effectively improve the Reliability of experimental data.

QIn our New materials laboratory, we often need to coat polymer films on Glass substrates. Which Film Applicator should we choose?

A HuiNuo TM1000pro is suitable for your situation. It is equipped with a tempered Glass countertop with heat resistance of 600 ° C, which can withstand high temperature experimental environment; the aluminum alloy Spreader baseplate comes with a Smoothness calibrated certificate to ensure uniform thickness when filming on the Glass substrate. The touch screen is easy to operate, and the application length and speed can be adjusted freely, which is suitable for scientific research in universities.

QTo do the Repeatability test for the Coating sample, the film thickness conformity requirements are very high, what function of Film Applicator should be selected?

A It is recommended to choose TM1000pro and choose a high-precision bar. The film Applicator's meyer rod coating accuracy reaches +/- 0.001mm, and it can be driven by a servo motor to ensure that the thickness of each film is highly consistent. If you need higher requirements, you can also choose the Vacuum chuck function to ensure that the substrate is completely flat during the Spreader process, further improving the film Repeatability.

QHello, can the accuracy of this reach 3μm and below? Coating 3, 6, 9, 5, 10, 15 μm film Why don't you add v, it's not convenient for me to answer the phone right now. The substrate is Glass, can the accuracy of Spreader liquid sample be achieved if it is 3μm or 5μm?

A Our minimum wet-film for the wire rod type is 1.5 microns, and the solid content can be adjusted to the nano level. We all use imported wire rods, and the accuracy of the wire rods is 1μm error.

QHello, can the accuracy of this reach 3μm and below?

A We all use imported high-precision wire rods, and the accuracy of the wire rods is 1μm.

QCan the wire stick be fixed tightly? Will it roll during the Spreader process?

A Yes, it won't roll.

QCan it be scraped with a wire rod with a 500mm application width?

A It is recommended to use a standard wire rod 400mm long and 300mm application width. If you need a larger size of Spreader, you can customize it.

Standard
