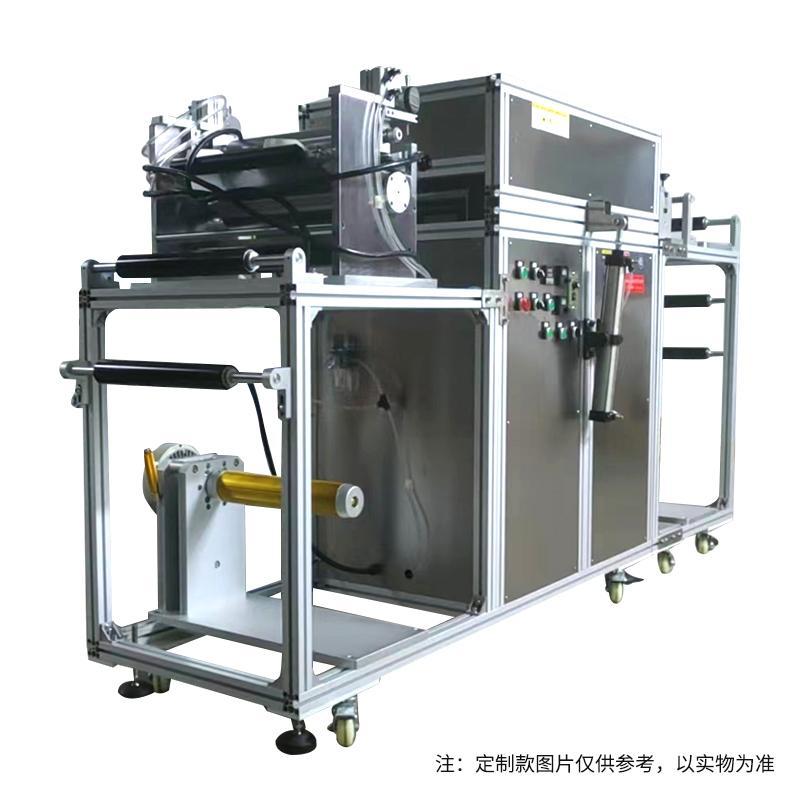

CHINA NBC-DJ5-1500 Automatic Film Applicator 2 meters oven
SE
NBC-DJ5-1500
Factory NBC-DJ5-1500 Automatic Film ApplicatorSPEC
Factory NBC-DJ5-1500 Automatic Film ApplicatorDetails
Factory NBC-DJ5-1500 Automatic Film ApplicatorPacking list
- SKU
- NB045780
- Spreader process
- Roll → Scratch → Drying → Roll
- Effective Spreader Width
- Max.Φ1500mm
- Coating Method
- scraping
- Cutting head type
- Adjustable drawdown blade
- Indication display
- digital display
- WFT
- 0.005-3mm
- Regulator Graduation
- 0.001mm
- Spreader Accuracy
- ±10%
- Coating Speed
- 1-10M/min (adjustable)
- unwinding method
- Inflatable shaft unwinding
- winding method
- Inflatable shaft winding
- Outer diameter of winding air expansion shaft
- 3-Inch expansion shaft, load-bearing 50KG
- maximum discharge
- Max.Φ1500mm
- Maximum charge
- Max.Φ1500mm
- Drying temperature range
- RT+~200℃
- Temperature control Accuracy
- ±5℃
- Heating method
- hot air circulation
- Oven length
- 1M/section
- Total length of drying tunnel
- 12m
- Drying power
- 1KW/section
- Tension control range
- 1~10N
- Tension control Accuracy
- ±0.5N
- Motor type
- Servo motor
- control mode
- PLC + touch screen
- Human Machine Interface
- Color touch screen
- tension control
- automatic
- Deviation Correction control mode
- automatic
- Film thickness control
- manual
- Fitting method
- Roll fit
- Fitting speed
- 0.1~ 10M/min (adjustable)
- fit width
- Max.Φ1500mm
- gas source
- 0.5~ 0.8MPa compressed air
- Applicable coil type
- Plastic film, metal foil, paper, non-woven fabric, etc
- Spreader type
- Water-based paints, solar-based paints, UV coatings, etc
- Operating environment temperature
- 10℃ ~ 40℃
- Operating Environment humidity
- 30～90%RH
- Power Supply
- 380V, 50Hz, three-phase five-wire system
- Total power
- 45KW (subject to actual customization)
- Dimensions
- About 4000mm*2000mm*1600mm (subject to actual customization)
- total
- Subject to actual customization
- Tension control mode
- Automatic constant tension
product structure
The machine consists of a machine body, a gluing width adjustment device, a feeding rack, a gluing roller set, a thickness adjustment dial indicator, a transmission platform, a traction roller set, and a transmission mechanism.
Structure and composition
Body: The body of the equipment is entirely composed of aluminum alloy + high electrostatic spraying plate.
Glue width adjustment device: The width adjustment device is composed of food-grade plastic and adjustable brackets.
Unloading rack: The machine is equipped with two unloading racks. When the alignment of the two materials deviates during the lamination process, the deviation correction device automatically adjusts to move the rack left and right to achieve the effect of aligning the two materials.
Glue coating roller set: The glue coating roller set is made of precision machined parts with double rollers and has smooth transmission.
Thickness adjustment dial indicator: Adjust the required coating thickness when applying glue. Rotate the left and right hand wheels on the rubber coating roller frame clockwise or counterclockwise to adjust the thickness of the glue coating. The specific thickness is determined according to the dial indicator.
Transmission platform: The transmission platform is made of stainless steel. Its main function is to smoothly transmit the base material after gluing to the next process.
Traction roller group: Pull the base material between the upper and lower rollers of the traction roller by hand. Tighten the hand wheel on the frame to make the traction roller and the rubber ring of the upper roller contact the lower roller. The traction roller group pulls the base material through power transmission. Come over and get the coating done.
