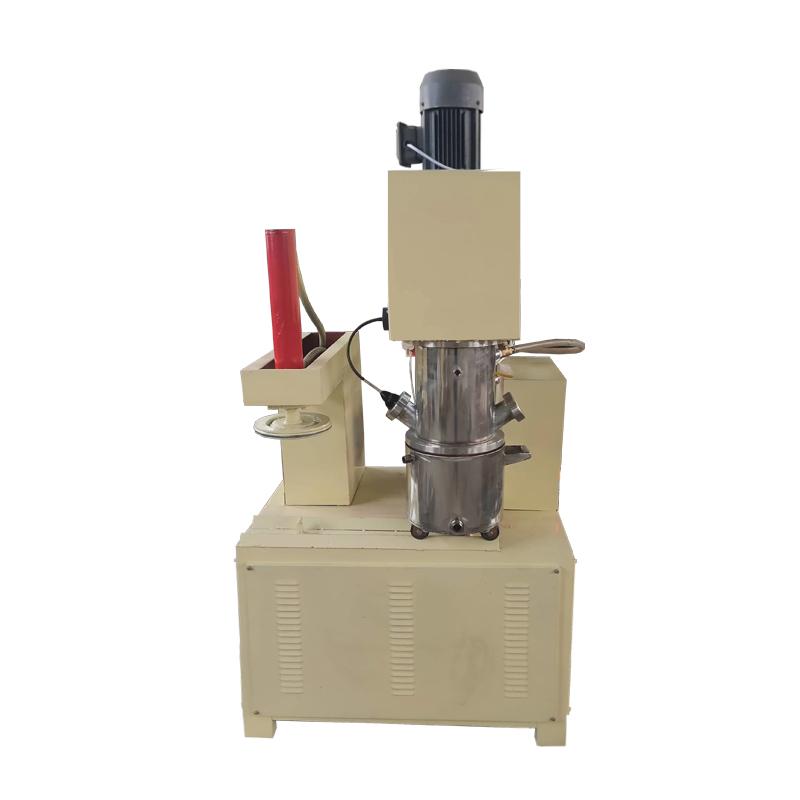

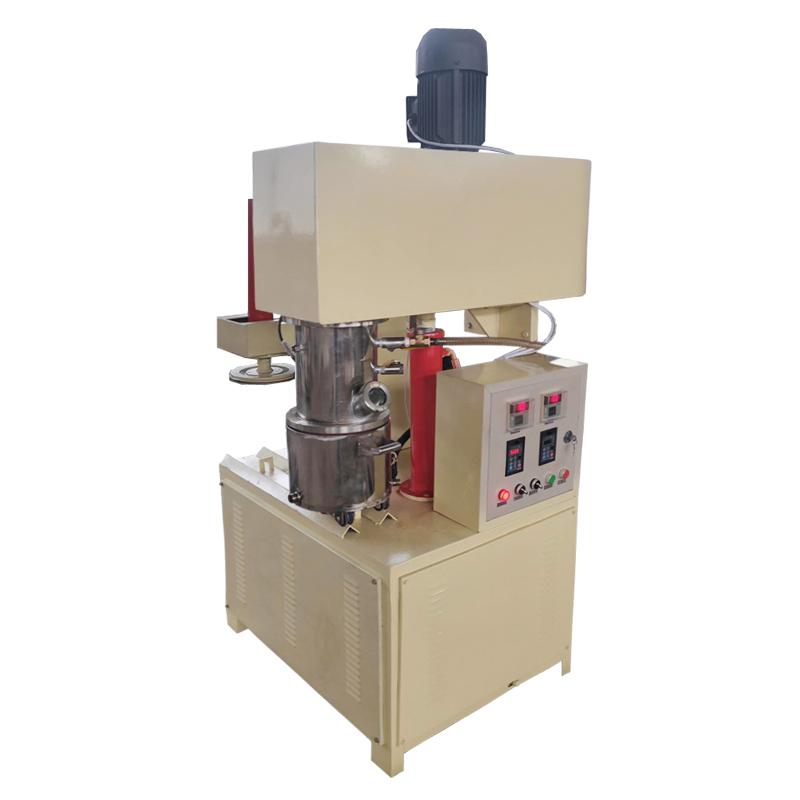

CHINA SXDH-5L Dual Planetary Power Hybrid Power 6.75kw

Vacuum degree -0.098MPa, Rotation speed: 0~~ 1450r/min, Total Power 6.75kw, set planetary machine, powerful Disperser function in one, can achieve no dead point, efficient mixing, is a chemical, food, energy, viscose, cosmetics, daily chemical and other industries production of reliable equipment.

$7035.00/set

PromotionLoading...

Coupon

Model：

SXDH-5L

Certificate

BaTe

Contact

Details SPEC Con CAT

BaTe SXDH-5L Dual Planetary HybridSPEC

BaTe SXDH-5L Dual Planetary HybridDetails

BaTe SXDH-5L Dual Planetary HybridPacking list

SKU: NB045794

vacuum: -0.098MPa

structural form: The power mixer and the press are installed on the same workbench

Speed regulation range: Rotation: 0~70rpm, Rotation: 0~80rpm; High speed: 0~1450rpm.

Low speed shaft: Two-axis folded blade type, two scraped bottoms, one scraped edge

High speed shaft: Single high-speed shaft, one-layer φ 60 dispersion disc structure

Cover lifting method: hydraulic lift

Cover lift height: 300mm

Temperature measurement method: Static in-cylinder temperature measurement

Kettle body positioning: Adopt propulsion guide device and V-shaped track positioning.

Total power: 6.75kw

Power Supply: AC：3*380V、50HZ

Dimensions: 1000*700*1700mm

Weight: Approx. 800kg

SXDH-5L

Dual Planetary Hybrid

Introduction

SXDH-5L double planetary power mixer is a newly launched new type of mixing and dispersing equipment. This equipment integrates the functions of a planetary machine and a powerful disperser. Using a unique stirring mechanism, the dispersing shaft and stirring paddle each perform planetary motion of revolution and rotation. The speed of the material is variable and frequency-adjustable, so that the material undergoes complex movements and is subjected to strong shearing, kneading and dispersion. The inner barrel of the kettle is designed The automatic wall scraping and bottom scraping device scrapes off the materials adhered to the kettle wall to achieve no dead spots and efficient mixing. It is ideal for chemical industry, food, energy, viscose, electronic appliances, fluorosilicone, medicine, cosmetics, and daily chemicals. Reliable equipment produced in other industries, this machine consists of base, beam, column, kettle cover, kettle body, oil cylinder, transmission, electronic control, and hydraulic system.

Device Configuration

serial number	project name	Model specifications	Origin
1	Reducer	BLD1-35-1.5	Changzhou
2	Motor	Low speed 1.5KW-4 level, 1 unit, high speed 1.5KW-4 level, 1 unit, ordinary type.	Yantai
3	Frequency converter	1.5KW, 2 units. Overloaded	Chinese
4	thermometer	K type	Hongda
5	Bearing	According to drawing	NSK
6	Oil seal	According to drawing	NAK
7	Oil cylinder	D63/d40 H300	Yantai
8	gas station	Pump flow rate is 8L/min, fuel tank is 20L, motor power is 0.75kw-4P, ordinary type.	Yantai
9	Electrical components	Low Voltage electrical components	Dajiang
10	valve	According to drawing
11	Machinery Seal	105-45 105-20	Danyang
12	gear	Using tooth surface hardening and precision grinding
13	Lubricating grease	7412 semi-flowing grease, special grease for high-speed bearings	Great Wall brand

FAQ

QI want to buy a mixing plant for cosmetic production. Is the BaTe SXDH-5L dual planetary power hybrid suitable?

A Yes! This equipment integrates planetary stirring and strong dispersion, and can efficiently cut and knead cosmetic raw materials. Its frequency conversion speed regulation and wall scraping device can ensure that creams, emulsions and other products are mixed evenly without dead ends, especially suitable for the high requirements of the cosmetic industry for fineness and uniformity.

QWe need strong dispersion to make viscose materials. How about the high-speed dispersion function of this device?

A SXDH-5L's high-speed dispersion shaft Rotation speed can reach 0-1450rpm, and with the φ 60 dispersion disc structure, it can produce strong shear effect on viscose materials. The double planet motion mode and frequency conversion speed regulation can flexibly adjust the Rotation speed according to the material viscosity to ensure that the viscose material is fully dispersed and evenly dispersed.

QI want to buy a mixing plant for viscose production, any recommendations?

A SXDH-5L dual planetary power mixer integrates planetary machine and strong Disperser functions, adopts a unique two-shaft mixer structure, which can carry out strong shearing, kneading and dispersion of viscose materials. The kettle is equipped with an automatic wall scraping device to ensure no dead point mixing, especially suitable for high viscosity material processing in the viscose industry.

QWhat are the advantages of this device in terms of functional configuration?

A The SXDH-5L configuration is very practical, driven by dual motors and dual frequency converters, low-speed shaft with two-axis flap type stirring and scraping bottom scraping edge, high-speed shaft with dispersion disc, which can achieve gentle mixing and strong dispersion at the same time. The hydraulic lifting kettle cover is easy to operate, and the vacuum degree of -0.098MPa is suitable for the process that requires defoaming. The whole machine Power 6.75kw, taking into account efficiency and energy consumption.

QI want to buy a mixing machine for cosmetic production, which one do you recommend?

A Recommended SXDH-5L dual planetary power mixer, which integrates planetary machine and powerful Disperser functions, can perform strong shearing and kneading dispersion of cosmetic raw materials to ensure uniform and delicate paste, suitable for the mixing of high-viscosity materials such as cosmetics.

QIs this equipment suitable for use in the viscose industry?

A Suitable, SXDH-5L uses a unique planetary stirring mechanism, combined with a wall scraping device, which can efficiently mix viscous materials, avoid dead ends, and achieve a vacuum degree of -0.098MPa, which helps defoaming. It is a reliable choice for viscose industry production.

QHow is the speed regulation function of the equipment? Can it adapt to different materials?

A SXDH-5L adopts frequency conversion speed regulation, which can be adjusted at 0-70rpm for revolution, 0-80rpm for rotation, and 0-1450rpm for high speed. You can flexibly adjust the speed according to the viscosity of the material, and adapt to a variety of mixing requirements from low to high viscosity. The operation is simple and efficient.
