LLOYDS 92NM Cupping Tester

The maximum pulling force is 30kN, the maximum pulling force is 60kN, the punch stroke indicator (accuracy 0.1mm, standard), the large punch stroke is about 45mm, the maximum drawing speed is 150mm/min, using high-precision weighing Sensors and microcontroller-based fast Response electronic equipment as measurement devices, the good functional layout of each function of the system makes the system user-friendly.
Model：
Contact
Details SPEC CAT

LLOYDS 92NM Cupping TesterSPEC

LLOYDS 92NM Cupping TesterDetails

LLOYDS 92NM Cupping TesterPacking list

SKU
NB045848
pulling force
Up to 30kN (model 92NML, plate thickness up to 1.5mm)
pulling force
Maximum 60kN (model 92NM, plate thickness up to 3.5mm)
Punch stroke indication
Digital (Accuracy 0.1mm, standard)
Hydraulic tank Capacity and HY
5L,ENCLO-57
size
1066×585×1250mm
Maximum punch stroke
About 45mm
Drawing speed
Up to 150mm/min
blank holder force
Maximum 12kN
Power
400V3~，50Hz
power consumption
0.50kw
paper pressing force
0 to 5kN
Net Weight
Approx. 300kg
92NM
Cupping Tester
The maximum pulling force is 30kN, the maximum pulling force is 60kN, the punch stroke indicator (accuracy 0.1mm, standard), the large punch stroke is about 45mm, the maximum drawing speed is 150mm/min, using high-precision weighing Sensors and microcontroller-based fast Response electronic equipment as measurement devices, the good functional layout of each function of the system makes the system user-friendly.

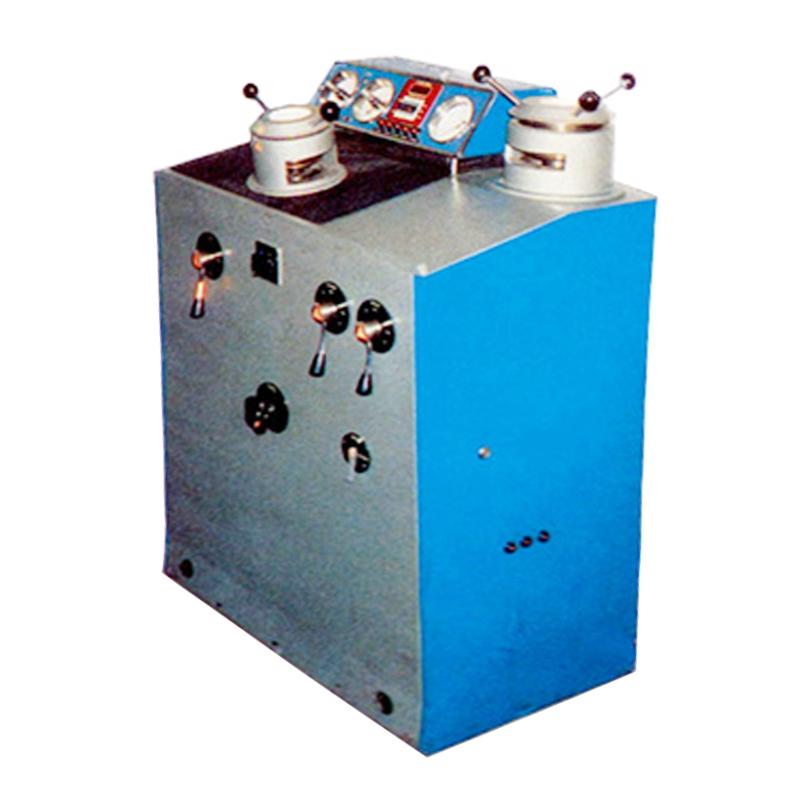

LLOYDS 92NM Cupping Tester Picture

Introduction

The 92NM cupping Tester is an automatic sheet and strip testing machine for ferrous and non-ferrous metals, capable of cupping, deep drawing and deep drawing according to DIN 50 101 and DIN 50 102 and corresponding national and international standards. Digital reading standard for hole testing.

The machine uses high-precision load cells and microcontroller-based fast-response electronics as the measuring device. Good functional layout of various functions of the system makes the system user friendly. Operators without any knowledge or experience can be trained to operate the system in minutes.

Features

  • electro-hydraulic drive;

  • Automated test sequences;

  • High precision accuracy up to 0.1/0.01 (optional);

  • In line with international standards.

Applicable standards

  • EN 14-58 & 67

  • ISO 8490

  • BS 38 55

  • Din 50 101

  • Din 50 102
