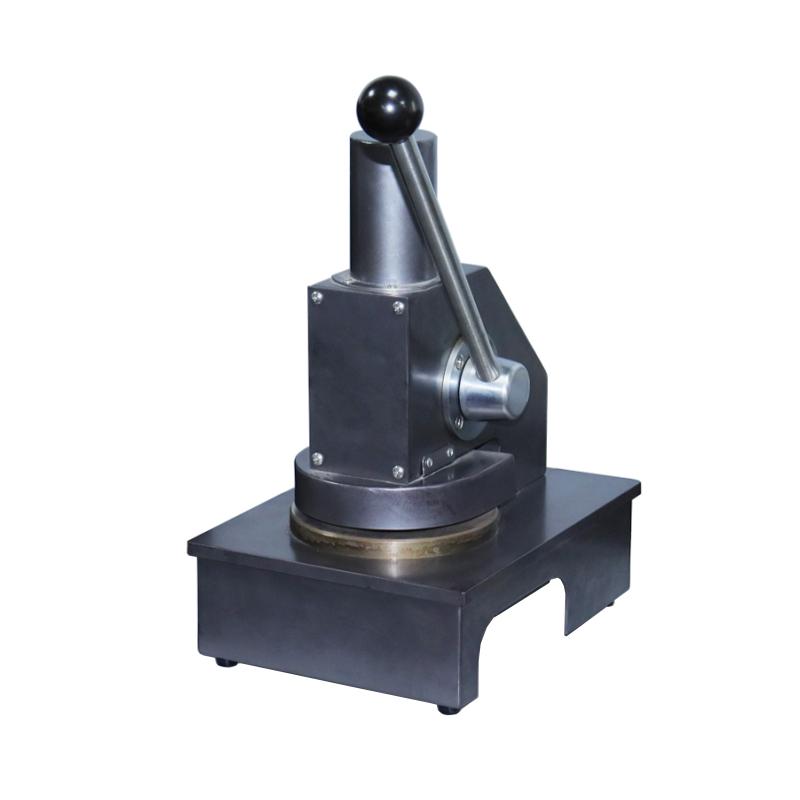

YINUO YN-DLD100S Quantitative Sampler (Copper Foil Aluminum Foil Type)

YN-DLD100S

Quantitative Sampler (Copper Foil Aluminum Foil Type)

The sampling area is 100cm2, the sampling area error is +/- 0.15 cm2, the accuracy is +/- 0.02mm, the sampling thickness is 0.01~ 1.5mm (suitable for copper foil, aluminum foil, paper, Cardboard, etc.), and the stamping sampling method can quickly and accurately cut 100cm2 standard samples.

Introduction

YN-DLD100S quantitative sampler (copper foil and aluminum foil type), also known as circular quantitative sampler, is used for weight detection and sampling of paper and cardboard samples. It adopts stamping sampling method and can quickly and accurately cut 100cm2 standard samples. This product adopts special processing The mold blade does not need to be replaced except for special high-strength materials or man-made damage. It is used to detect the weight per unit area of ​​sheet materials such as paper cardboard, textiles, toilet paper and sanitary napkins, copper foil and aluminum foil, expressed in grams per square meter g/m2. Correct sample preparation and careful data processing are crucial. This test method has the necessary instruments required for laboratory weight testing to ensure that every weighing can provide accurate data from the first time. It is suitable for papermaking. Laboratory and quality control department.

working principle

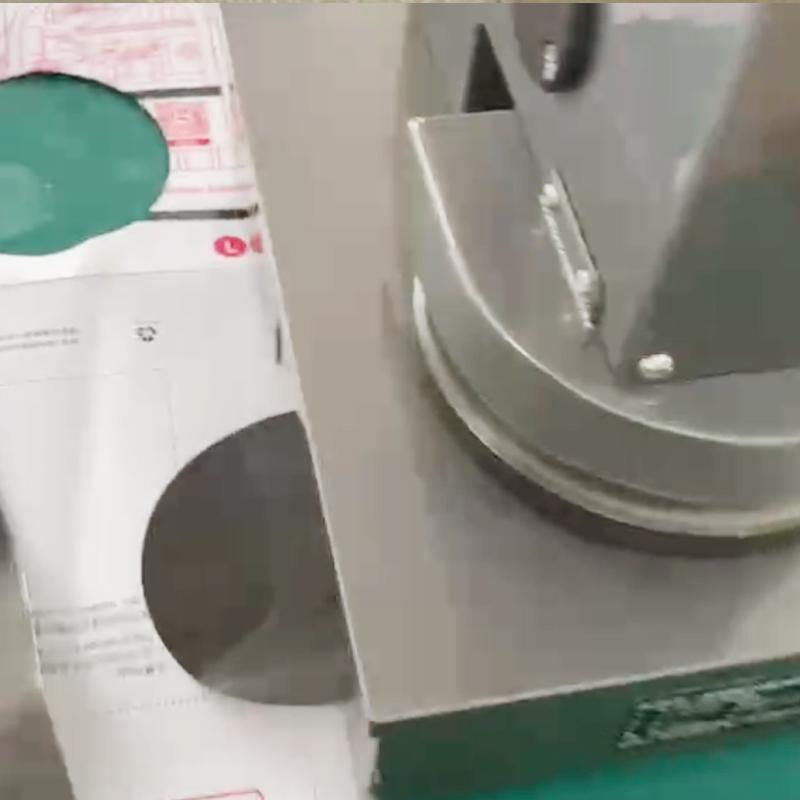

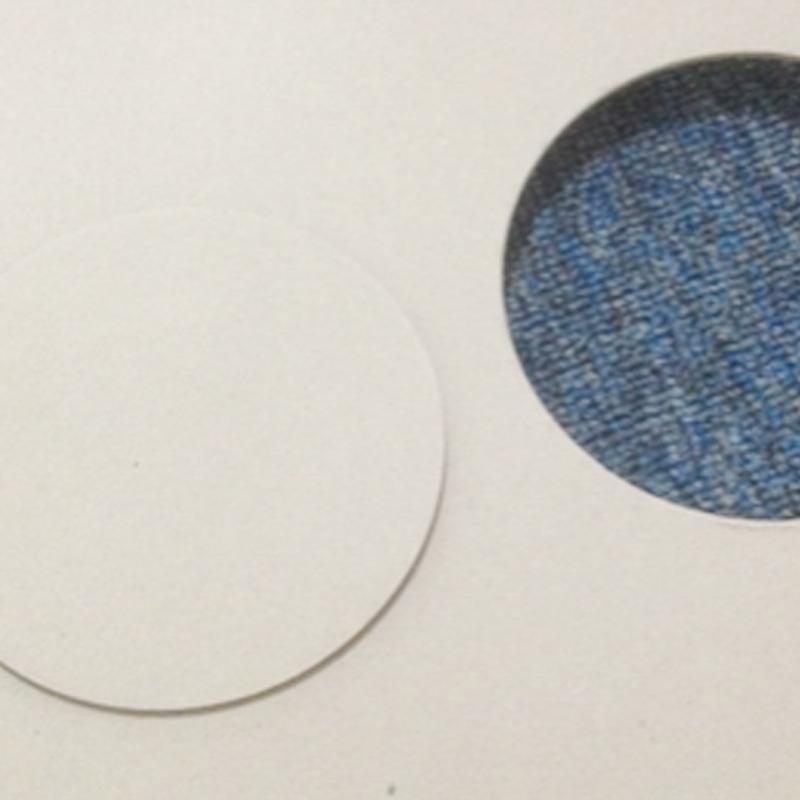

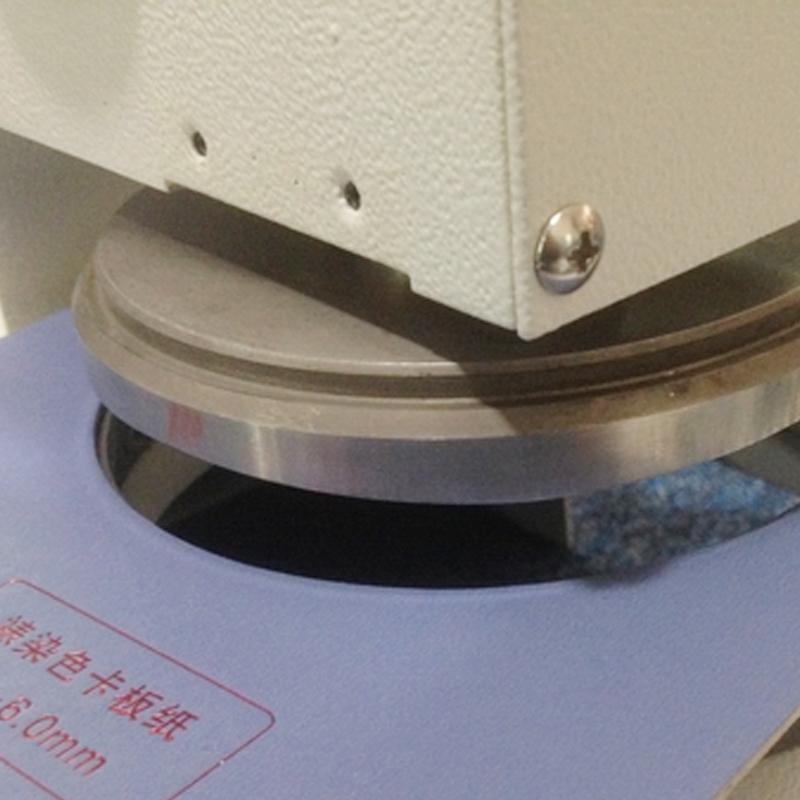

Use a quantitative sampler to cut a 100cm2 standard sample, then put the sample on a balance and weigh it, and calculate the gram weight of the product from the weighing result.

Features

• Stamping sampling method, accurate, convenient and fast, extreme cutting: 0.01~2mm;

• SKD11 quenched cutting tools, the cutting edge is more wear-resistant and has a wide range of applications;

• Stainless steel bearings make operation easy, and the extended platform prevents the knife from warping, making it more convenient and faster to use;

• Easy to assemble, the sampling error is small, only ±0.05mm, and the test deviation can be ignored;

• The imported specially processed mold blade is hardened and externally ground to ensure sharpness. It is specially designed for high-fiber paper materials, copper foil, aluminum foil, special materials, fiber materials, etc. It is not damaged by humans and can be used normally for 10 years without replacing the blade.

 Implementation standards

GB/T 451.2, ISO 536, QB/T1671, GB/T460, GB/T1540, GB/T426

Packing list：Quantitative Sampler x1, Manual x1, Warranty Card x1, Certificate of Conformity x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
