Chengyue CY-USP130-A Ultrasonic pyrolysis lame plating machine, ultrasonic spray pyrolysis equipment 40KHz 130W

SE
Equipped with 40KHz 130W ultrasonic Nebulizer and PID temperature control heating substrate, it supports 1-50mPa · s liquid viscosity, and the nozzle travel is up to 190mm, which is suitable for precise control of solution output and fog particle size.
$23389.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

ChengYue CY-USP130-A Ultrasonic pyrolysis lame plating machineSPEC

ChengYue CY-USP130-A Ultrasonic pyrolysis lame plating machineDetails

ChengYue CY-USP130-A Ultrasonic pyrolysis lame plating machinePacking list

SKU
NB045910
supply Voltage
AC220V,50Hz
Max Power
3.5KW (including compressor + peristaltic pump about 1.5KW)
Ultrasonic Nebulizer
40KHz 130W
liquid viscosity
1-50mPa·s(cP)
Nozzle stroke
X-Y-Z axis Max 190mm
Traverse speed
10-180mm/min (x-axis direction) 10-180mm/min (Y-axis direction)
Heating substrate substrate
150mm×150mm
Max temperature
500℃
Temperature control mode
AI-PID temperature control
Drip coating tank Capacity
50mL/250mL (with two large and small jars)
Peristaltic pump liquid separation rate
0.006-41mL/min
Control method
Industrial control computer + instrument panel
Machine size
850×850×1450mm
CY-USP130-A
Ultrasonic pyrolysis lame plating machine
Equipped with 40KHz 130W ultrasonic Nebulizer and PID temperature control heating substrate, it supports 1-50mPa · s liquid viscosity, and the nozzle travel is up to 190mm, which is suitable for precise control of solution output and fog particle size.

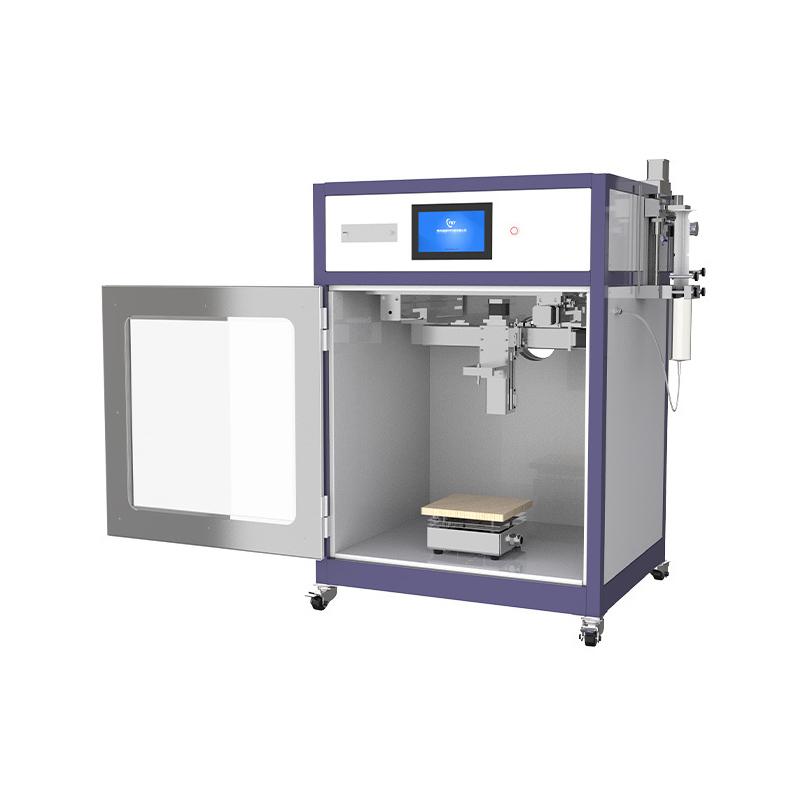

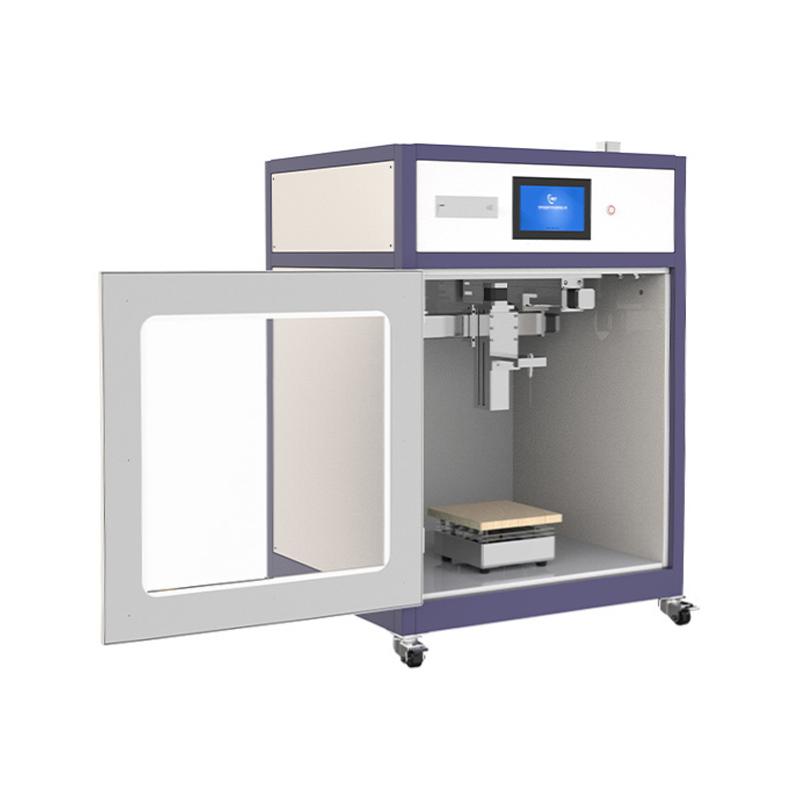

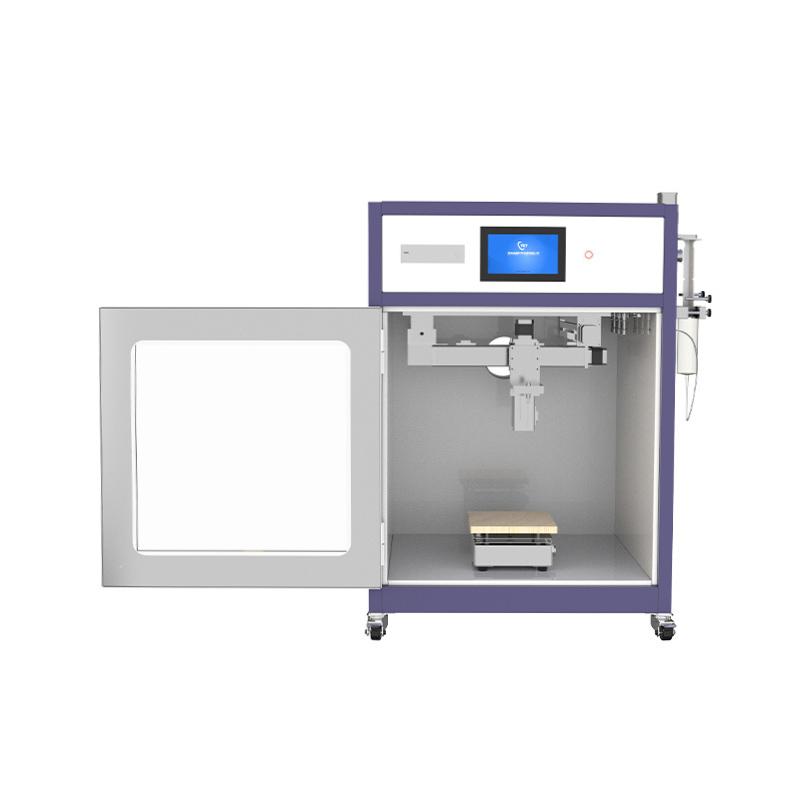

Chengyue CY-USP130-A Ultrasonic pyrolysis lame plating machine, ultrasonic spray pyrolysis equipment 40KHz 130W Picture

Introduction

In the spray pyrolysis film method, the solution is atomized and sprayed onto a heated base, and then the desired material structure is obtained on the substrate. CY-USP130-A Ultrasonic Pyrolysis Spraying Machine is an ultrasonic spray pyrolysis equipment, which is equipped with a 40KHz 130W ultrasonic atomizer, a PID temperature-controlled heating substrate substrate, a high-precision peristaltic pump and a precision-programmed stepper motor moving mechanism. Through the integrated design, this equipment can accurately control the solution volume, spray speed and fog particle size and other parameters, and the substrate temperature can also be controlled, which can meet your various test needs.

This material preparation method is particularly suitable for depositing oxides and has a long history in the preparation of transparent electrodes.

Scope of application

It is widely used in the preparation of perovskite solar cells.

FAQ
QI need to deposit an oxide film. Can this device handle it?
A Yes! Ultrasonic pyrolysis lame plating is particularly suitable for depositing oxide films. The device can handle solutions with a viscosity of 1-50mPa · s, and spray the precursor solution evenly on the heating substrate through ultrasonic atomization to form a dense oxide film during pyrolysis, which is very mature in applications such as transparent electrodes.
QCan the equipment control the uniformity of lame plating?
A Of course! It is equipped with a three-axis stepper motor moving mechanism (stroke 190mm), with an adjustable lame plating speed of 10-180mm/min, and a peristaltic pump to precisely control the liquid output (0.006-41mL/min), which can achieve fully automatic uniform lame plating to ensure uniform film thickness, suitable for laboratory precision Moulding needs.
