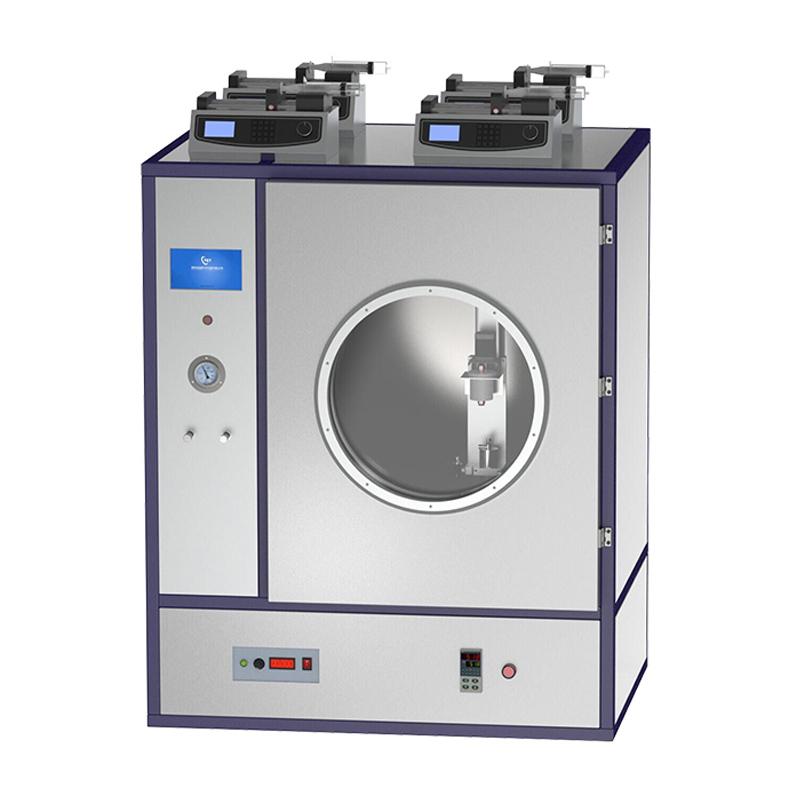

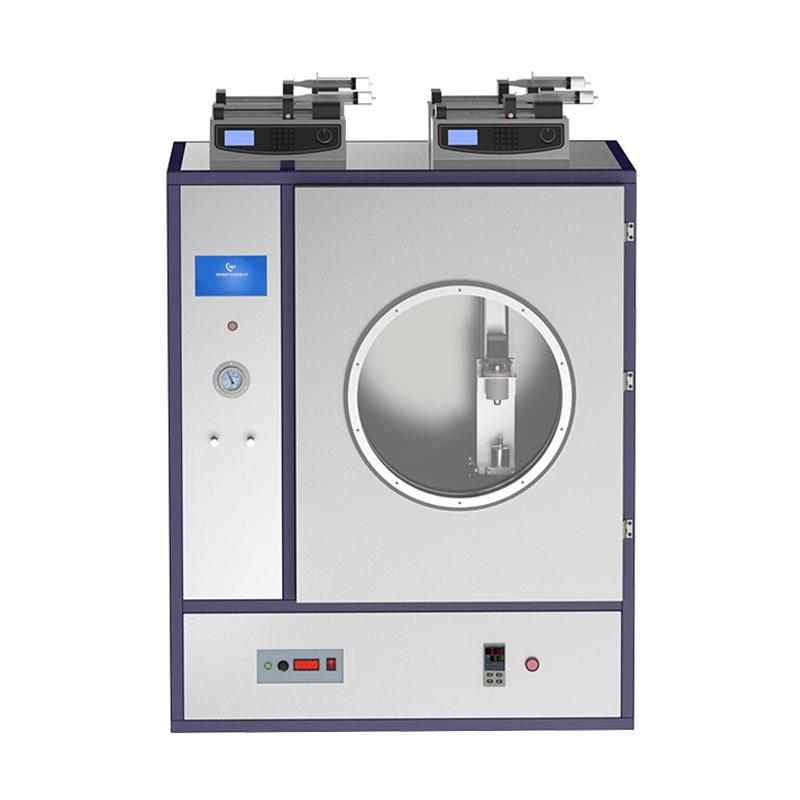

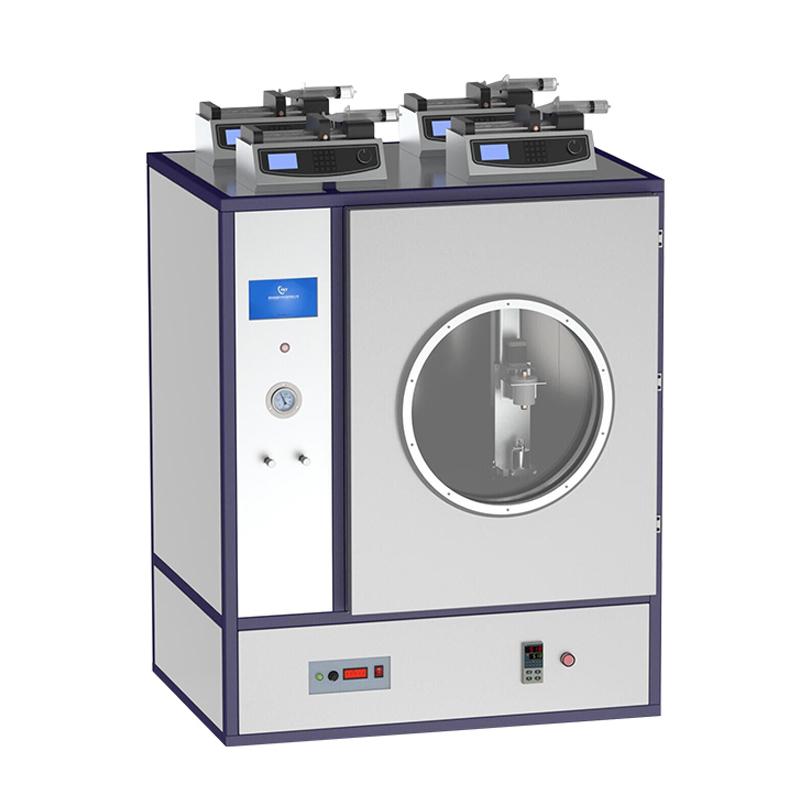

Chengyue CY-SP-04-HT high throughput ultrasonic pyrolysis lame plating machine, battery electrode perovskite film prepative

Carrying three solution types, the programmable coating diameter is up to 18mm, the substrate supports 36 positions, and the coating chamber can be vacuumed, making it suitable for next-generation material exploration.

$49817.00/set

PromotionLoading...

Coupon

Model：

CY-SP-04-HT

Certificate

ChengYue

Factory authorized direct sales

Contact

Details SPEC Con CAT

ChengYue CY-SP-04-HT High throughput ultrasonic pyrolysis lame plating machineSPEC

ChengYue CY-SP-04-HT High throughput ultrasonic pyrolysis lame plating machineDetails

ChengYue CY-SP-04-HT High throughput ultrasonic pyrolysis lame plating machinePacking list

SKU: NB045911

input Voltage: 208-240V, 50/60Hz, single phase; Total Power: 3000W

nozzle: Includes two nozzles; compressed air nozzles for thick film coatings; ultrasonic nozzle with 150W 120Khz generator with solution viscosity < 30 cps; comes with a digital FMC for delivering complex gases to the nozzle at constant pressure.

syringe pump: Includes four syringe pumps. Three are used for mixing and Spreader solutions, and one is used to wash D water;

Standard syringe Capacity: 60Ml (Miscellaneous Capacity optional);

Linear speed range: 1 μm/min---120mm/min adjustable (Flow velocity = linear velocity x cross-sectional area in syringe)

Accuracy: ≤ +/- 0.5% (when > 30% FS)

control: The syringe pump is controlled by a self-digital control panel or a main touchscreen control panel

Size (L × W × H): 1100×730×1500mm

Weight: About 1000 kilograms

CY-SP-04-HT

High throughput ultrasonic pyrolysis lame plating machine

Introduction

CY-SP-04-HT high-throughput ultrasonic pyrolysis spraying is the process of depositing thin films by spraying a solution on a heated surface where the components react to form compounds. This method is particularly useful for the deposition of oxides and has long been a production method for applying a transparent electrical conductor of tin oxide (SnO2) or tin oxide to a glass substrate. Now, this technique is increasingly being used to prepare perovskite thin films and battery electrodes.

CY-SP-04-HT is a high-throughput spray pyrolysis system, which carries three types of solutions and coats different composition combinations with a programmed diameter of up to 18mm. Up to 36 positions on the substrate. The coating chamber is vacuumable, allowing spray cracking to be carried out in a controlled atmosphere. This is a smart device that can more quickly explore a new generation of materials for battery electrodes and perovskite solar cells.

Scope of application

It is widely used in the preparation of perovskite solar cells.
