LEEB320 Ultrasonic Thickness Gauge Speed of sound 5920m/s

SE
LEEB320 Ultrasonic Thickness Gauge is a split Ultrasonic Thickness Gauge with a thickness measurement range of 1~ 250mm, and the measurement Speed of sound is 5920m/s with coupling status prompt function.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

Leeb leeb320 Ultrasonic Thickness GaugeSPEC

Leeb leeb320 Ultrasonic Thickness GaugeDetails

Leeb leeb320 Ultrasonic Thickness GaugePacking list

SKU
NB004621
Measuring range
1~250mm
Probe frequency
5MHz
Probe style
Split probe
Probe diameter
F10mm
Probe contact temperature
-10~60℃
Lower limit of pipe measurement
F20 * 3mm
Measurement error
±(1%H+0.1)mm
Display resolution
0.1mm
unit system
mm
Calibrated
Zero calibrated
Sound speed range
5920m/s
Display
LCD
Operating language
Chinese
Application software
without
Power
2 * AAA alkalinity battery
Operating Time
200h
Host size
130*70*25mm
Weight
About 0.2kg (host)
leeb320
Ultrasonic Thickness Gauge

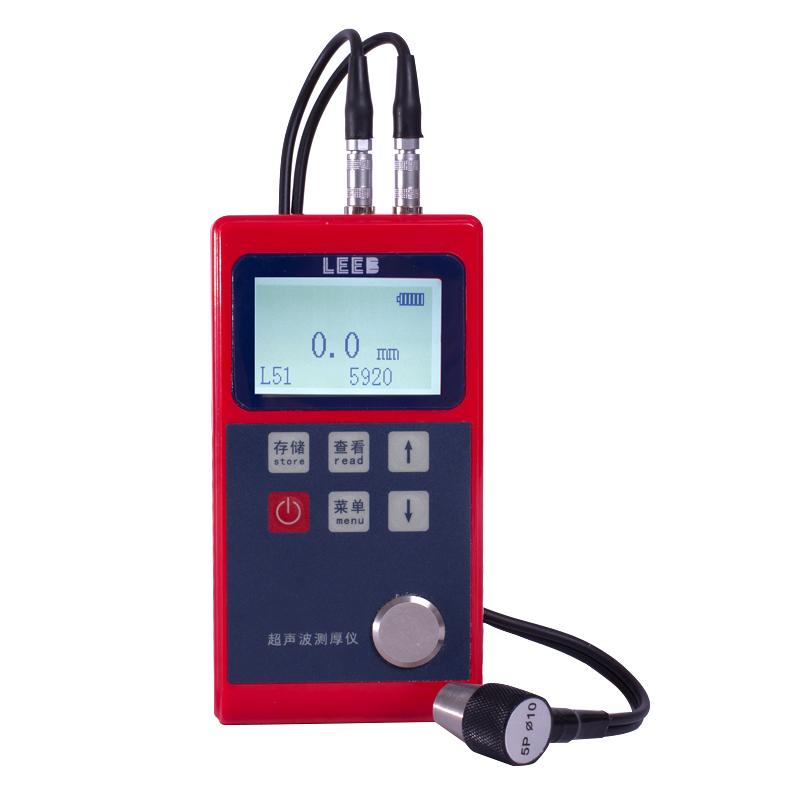

LEEB320 Ultrasonic Thickness Gauge Speed of sound 5920m/s Picture

Introduction to Leeb320 Ultrasonic Thickness Gauge

Leeb320 Ultrasonic Thickness Gauge is a split-type ultrasonic Thickness Gauge with LCD display. The thickness measurement range is 1~250mm. The measured sound velocity of Leeb320 is 5920m/s. Leeb320 Ultrasonic Thickness Gauge is suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, glass fibers and any other good conductors of ultrasonic waves.

Applications

Leeb 320 ultrasonic Thickness Gauge can be used to measure and monitor the thickness of plates, processed parts and pipelines and pressure vessels in production equipment, and is widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields.

Product principle

The thickness measurement principle of Leeb 320 ultrasonic Thickness Gauge is: the ultrasonic pulse emitted by the probe reaches the back measuring object and propagates in the object, and is reflected back to the probe when it reaches the interface of the material. Measure the thickness of the material.

Features

1. Chinese and English operation menu.

2. It has the status prompt function and the coupling status prompt function.

3. The upper and lower limit tolerance can be set, and the alarm will be issued automatically if the tolerance is exceeded.

4. It has a high-brightness LED backlight display function, which can display the remaining battery power.

5. Used for compound and unknown materials with known thickness and accurate sound velocity on the opposite side.

6. It has power-saving functions such as automatic sleep and shutdown.

7. Optional metric or imperial.

8. With probe zero point calibration, it can automatically correct the system error.

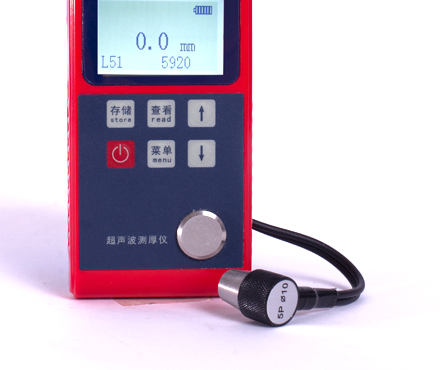

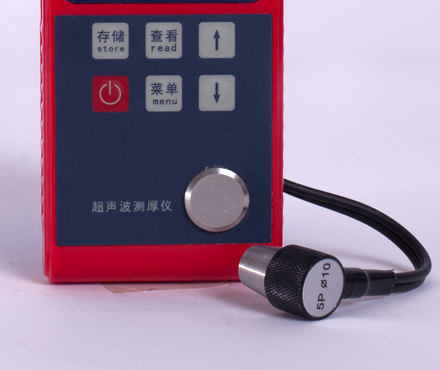

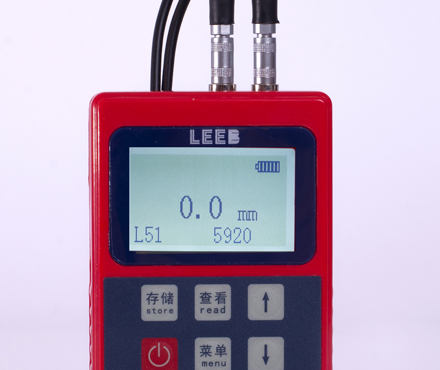

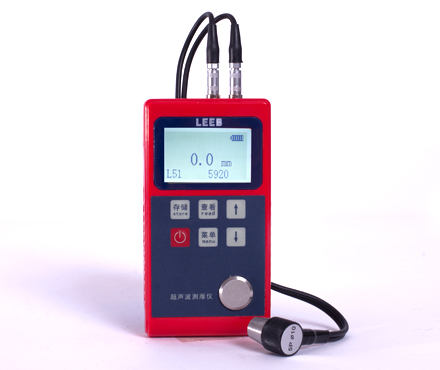

Pictures

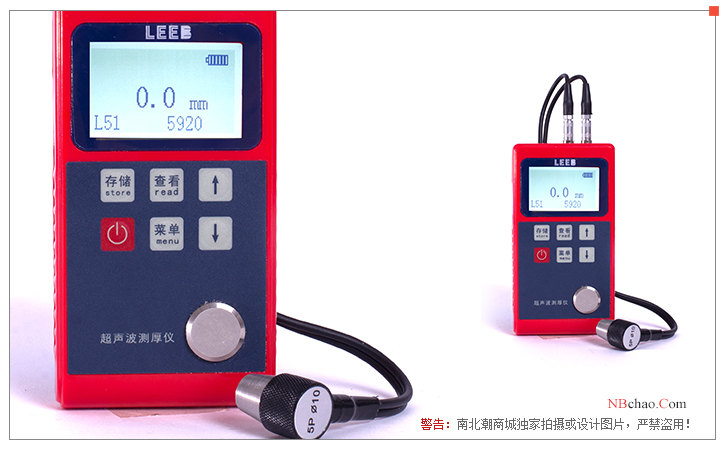

Libo leeb320 ultrasonic Thickness Gauge real shot

different probe types

namemodelFrequency (MHz)Probe diameterMeasuring rangeMinimum pipe diameterCharacteristic description
standard probeL51510mm1.0mm～250.0mm (steel)Φ20mm×3.0mmUse at room temperature (<60°C)
Microbore ProbeL7776mm0.75mm～50.0mm (steel)Φ15mm×2.0mmFor thin wall and small arc surface, use at room temperature (<60°C)
Coarse grain probeLZ2222mm2.5mm～350mm (steel)20For the measurement of coarse-grained materials such as cast iron, used at room temperature (<60°C)
High temperature probeLG5514mm2.0～100mm (steel)30For the measurement of materials with temperatures below 300°C
FAQ
QI want to measure the thickness of steel pipes, which probe should I choose?
A It is recommended that you use the standard probe L51, its Measurement range is 1~ 250mm, suitable for measurement of common steel, aluminum and other metal materials, and can measure the minimum diameter of 20mm pipe, cost-effective, to meet the needs of most industrial scenarios.
QIf the measurement cast iron parts, with leeb320 can be accurate?
A Yes! Coarse crystal materials such as cast iron are easy to scatter ultrasonic waves. It is recommended to match the coarse crystal probe LZ2. Its low frequency 2MHz can penetrate coarse grains. Measurement range is 2.5~ 350mm, which can effectively reduce measurement errors. It is especially suitable for casting thickness detection.
QNeed to measure the thickness of high temperature equipment pipeline, what probe should be equipped?
A High temperature environment to use special high temperature probe LG5, it can withstand 300 ℃ temperature, Measurement range 2~ 100mm, direct contact with high temperature surface do not worry about damage, suitable for petrochemical, boiler and other industries online monitoring pipeline corrosion.
QCan you measure metal thickness?
A OK
QI want to do a test on the GB/T11344 standard, is this Ultrasonic Thickness Gauge okay?
A Sure
QDoes Leeb320 Ultrasonic Thickness Gauge come with a printer?
A Hello, this one does not come with a printer. The Ultrasonic Thickness Gauge of the leeb342 model has a built-in thermal printer.
QI do Pottery and porcelain, want to choose an Ultrasonic Thickness Gauge, this leeb320 can be tested? How thick can be measured?
A Hello, it can be tested. The standard probe thickness measurement range is 1~ 250mm.
QCan this leeb320 Ultrasonic Thickness Gauge measure the speed of sound for materials with known Film thickness?
A Hello, yes, you can measure the sound speed of the material.
QWhat is the difference between Libo's Leeb320 and Leeb321 models?
A Hello, the difference between the two models is mainly in the sound speed range. The sound speed range of the Leeb320 is 5920m/s, while the sound speed range of the Leeb321 is 1000~ 9999m/s.
