TQC VF2355 cross-cut blade 6 teeth 1mm for CC1000 series

SE
The TQC VF2355 cross-cut blade has a 6-tooth 1mm pitch, conforms to ISO 2409 standard, and is suitable for strong substrates with a Coating thickness of less than 60μm.
$778.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

TQC sheen VF2355 Cross-cut bladeSPEC

TQC sheen VF2355 Cross-cut bladeDetails

TQC sheen VF2355 Cross-cut bladePacking list

SKU
NB004659
Number of teeth
6 teeth
Tooth spacing
1mm
Application standard
ISO 2409
Applicable film thickness environment
0 to 60 µm (solid substrate)
Appearance size
The round face cutter has eight cuts for a longer service life
VF2355
Cross-cut blade
TQC VF2355 cross-cut blade 6 teeth 1mm for CC1000 series Picture

Specifications

modelTooth spacing (mm)Number of teethincisionApplicable substrateSuitable for hundred grid knivesStandards compliant
VF2355
16Round cutter has eight cuts and lasts longerSolid substrates with coating thickness less than 60 micronsCC1000ISO 2409
VF23572Soft substrates with coating thickness less than 60 microns
VF23583Solid substrates with coating thickness less than 60 microns
VF2359111Soft substrates with coating thickness less than 60 micronsASTM 3359

CC1000 hundred grid blade applicable range

ISO 2409:

 1mm intervals, suitable for solid substrates with coating thickness less than 60 microns

 2mm intervals, suitable for soft substrates with coating thickness less than 60 microns

 2mm intervals, suitable for all substrates with coating thickness between 61 and 120 microns

 3mm intervals, suitable for all substrates with coating thickness between 121-250 microns

ASTM D3359:

 1mm intervals, suitable for coating thickness less than 50 microns

 1.5mm intervals, suitable for coating thickness between 50-125 microns

CC1000 hundred grid blade model

ASTM compliant TQC cutter head (only for CC1000)

VF2359 tooth spacing 1 mm

VF1861 tooth spacing 1.5 mm

TQC cutter head according to DIN-ISO standard (only for CC1000)

VF2355 tooth spacing 1 mm

VF2357 tooth spacing 2 mm

VF2358 tooth spacing 3 mm

Safety Precautions

The 100-grid blade is sharp, so be careful when using it;

Please use the box to store the knife.

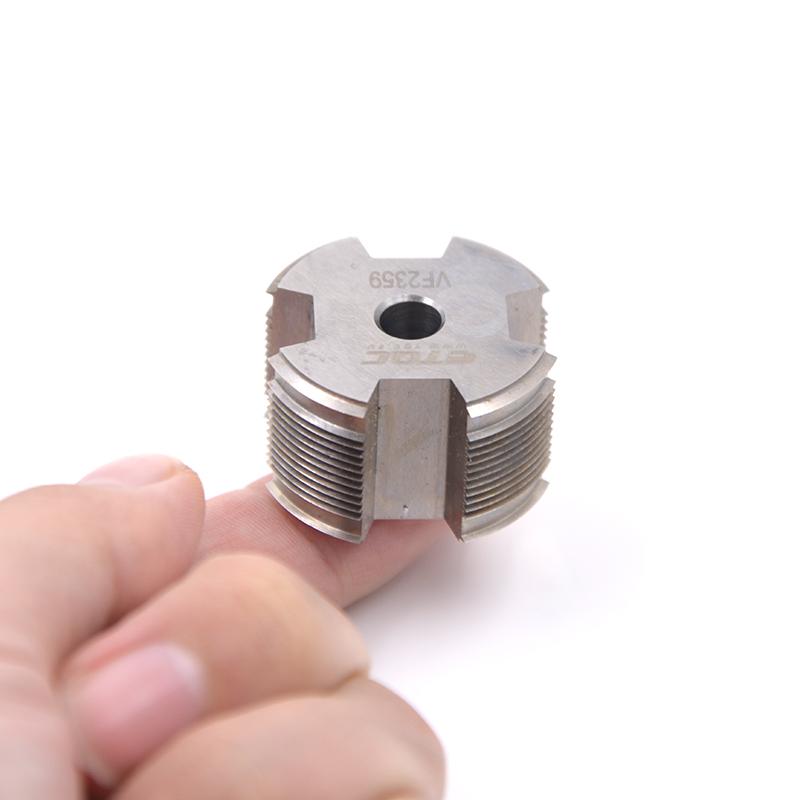

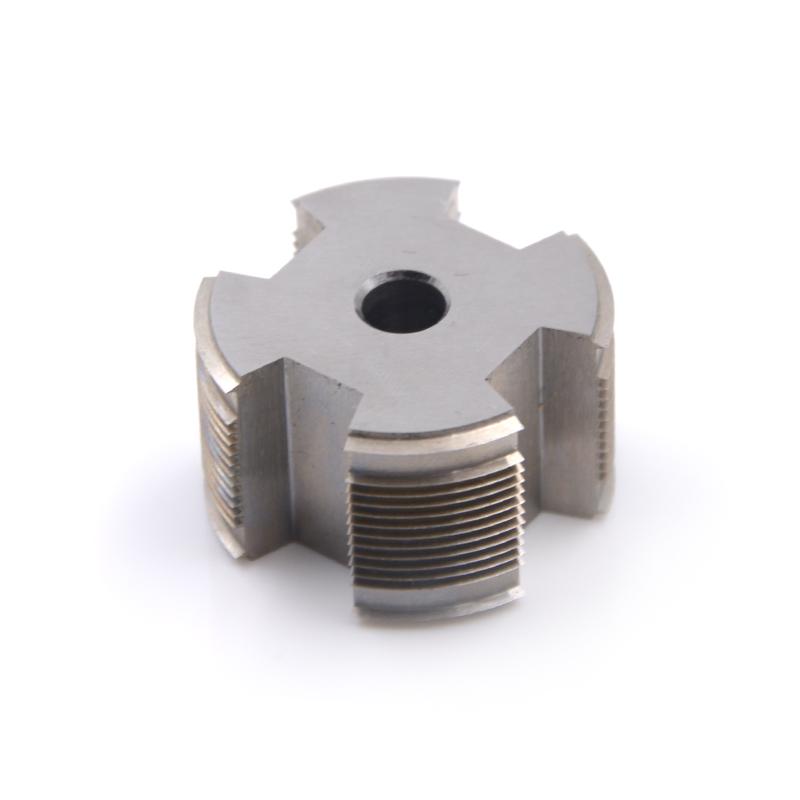

Actual pictures

TQC hundred grid blade

Take you into the Dutch TQC

The historical development of TQC company

TQC automated production and strict quality control

TQC R&D team

FAQ
QHello, is VF1839 in stock?
A This is split into VF1856 + VF2355
QDo you still have this model VF1839?
A There is no VF1839 anymore, now it has become these two VF1856 + VF2355.
QDoes the TQC cross-cut blade meet the ISO 2409 standard?
A The cross-cut blade of the VF2355 can be referred to.
