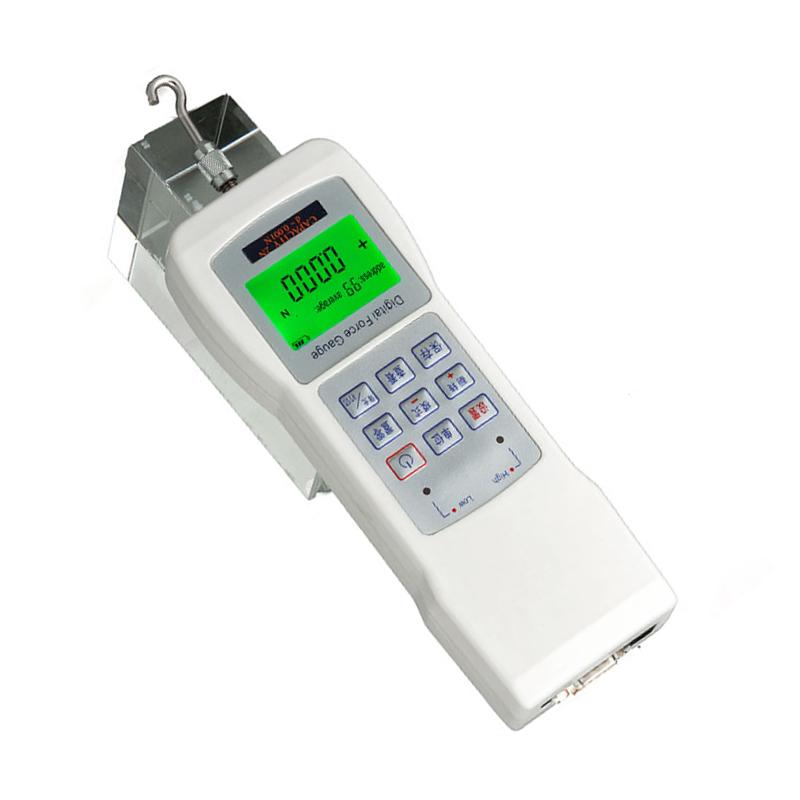

Handheld Force Gauge Hypertherm HG-20 Push-pull Locometer 20N/0.01N

HG-20

Force Gauge (Digital Display)

Measured value 20N, 2kg, 4.4lb, load Graduation 0.01N, 0.001kg, 0.001lb, Sensors structure Sensors built-in, error of indication 0.5%, power supply NiMH battery 6V/1500mAh, unit Kgf, N, Lbf.

Brief Introduction of HG-20 Handheld Push-Pull Force Gauge

Haibao handheld push-pull gauge HG-20 is a hand-held digital display push-pull gauge with a maximum load measurement value of 20N and a load scale value of 0.01N. HG-20 uses a segmented LCD display with backlight function. HG-20 hand-held push-pull force gauge is suitable for push-pull load test, insertion force test, destruction test, etc. of various products. It can be used with different machines or fixtures to form small test machines with different purposes. The measurement is more convenient and the function is more powerful.

Product Structure

The structure of HG-20 handheld push-pull gauge includes: upper limit indicator light, lower limit indicator light, button, display window, contact connecting rod, communication interface, power adapter jack, level signal output interface. The details are as follows:

Specification Dimensions

Features

1. HG-20 hand-held push-pull force gauge has the characteristics of high precision, high resolution and high stability.

2. Freely set upper and lower limit comparison values, and can automatically sound alarm and level signal output.

3. Test direction display (pull +, push -).

4. It adopts segment liquid crystal display and green backlight screen.

5. HG-20 handheld push-pull gauge can store 99 sets of test data, and automatically calculate the average value, maximum and minimum values of the stored data.

Display parameter introduction

1) Test value reading area

2) Numerical unit, you can choose "N", "kgf", "lbf" three different measurement units, and there will be "kN" when the external large range is installed

3) Battery power indicator, when the battery power is very small, it should be charged in time, when the battery power is empty, the HG-2/5/10/20/50 push-pull gauge will automatically shut down

4) Memory number for storing data

5) Data average indication: "Average" means to display the average value

6) Working mode indication

"Track": weight tracking mode;

"Peak": peak hold mode;

7) Peak hold lock symbol

This symbol will be displayed if there is a peak held in the peak hold mode

8) Push-pull force direction symbol

"+" is displayed during pull test, and "-" is displayed during push test

Introduction

patent certificate

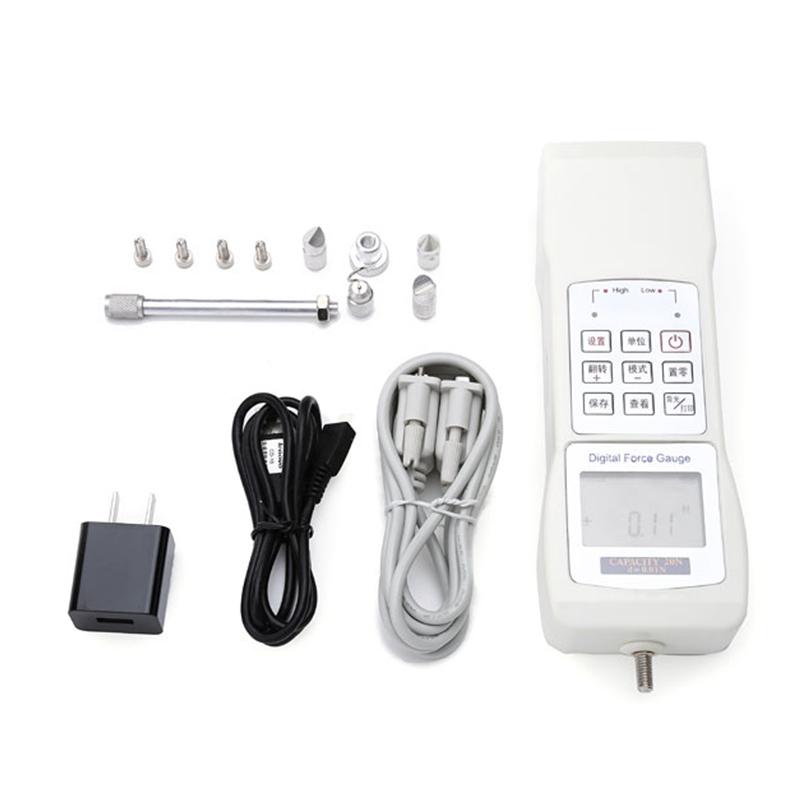

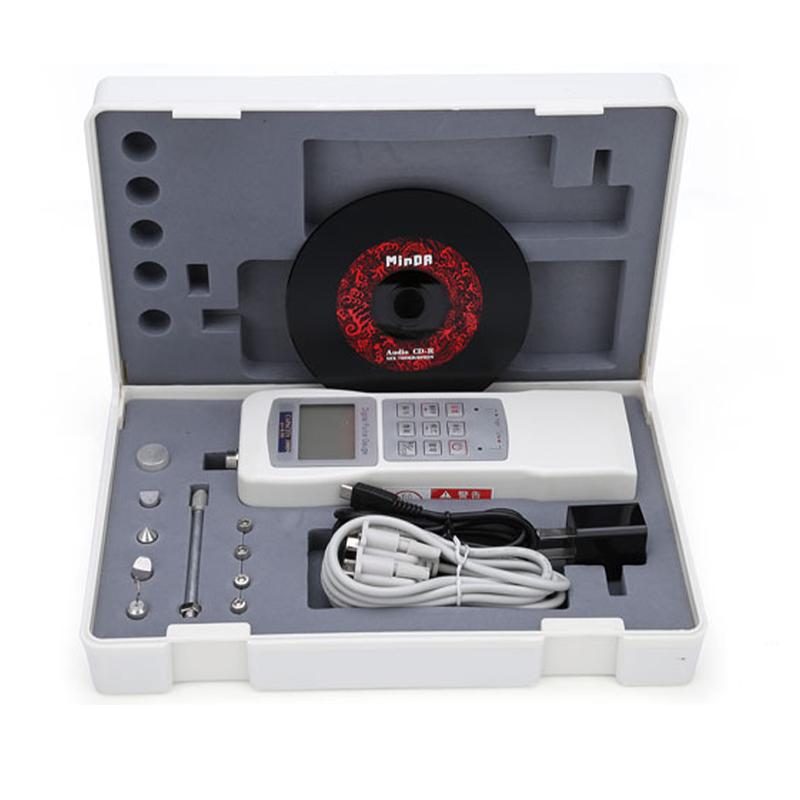

Packing list：Force Gauge x1, Certificate of Conformity x1, Warranty Card x1, Manual x1, Instrument Case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
