German Nix QNix 4500 + F3 integrated coating platings Thickness Gauge Fe iron-based probe 0-3000μm

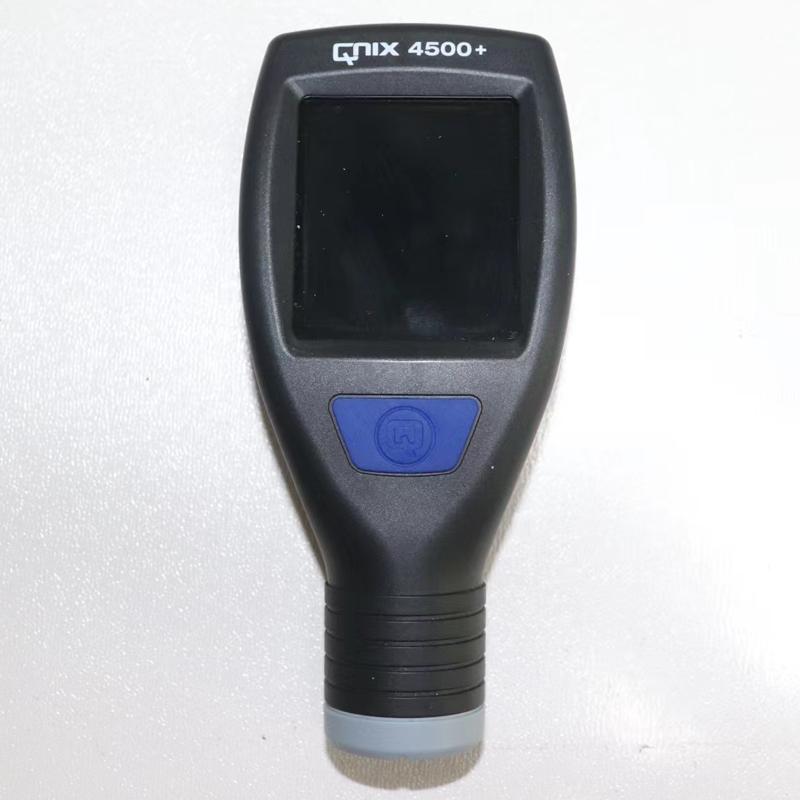

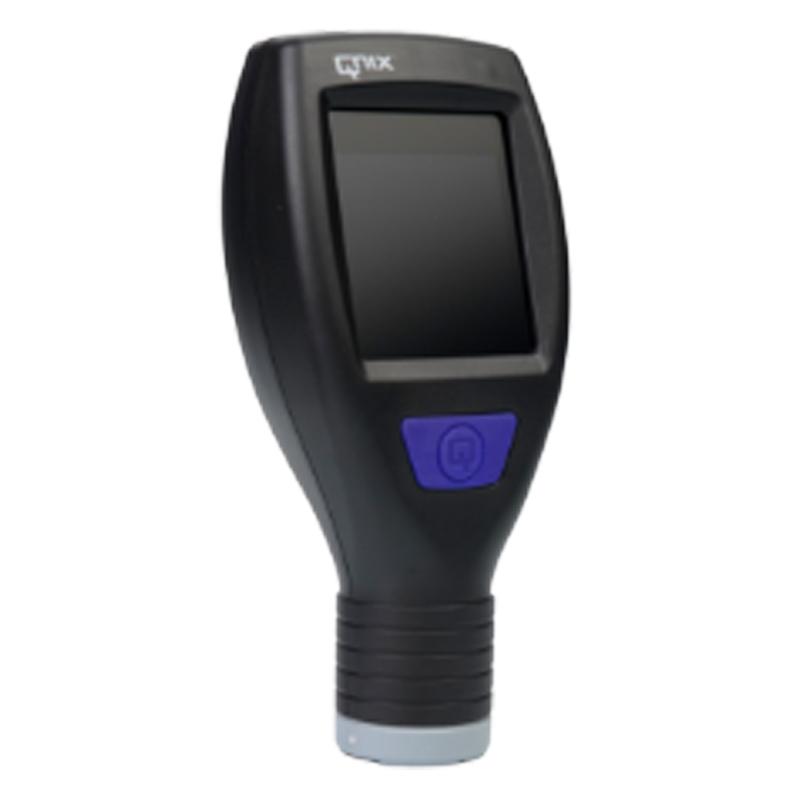

QNix 4500+F3

Coated platings Thickness Gauge

Display accuracy 0.1μm, display 2 inches wide Viewing Angle omnidirectional IPS-TFT color LCD, power supply 2xAA alkaline battery, battery life meets 40,000 above the measurement, statistical function average, MAX Maximum, MIN Minimum, standard deviation, operating temperature 0 ℃~ + 50 ℃, storage temperature -20 ℃~ + 70 ℃, Relative Humidity 10%~ 90%, measurement range 3mm, measurement speed ≥ 100/min, measurement accuracy (Fe mode ) +/- ( 1μm + 2% reading) @0-2mm or +/- 5% reading @> 2mm.

Introduction

The new QNix®4500+ coating Thickness Gauge from Nix demonstrates its position in the field of high-precision measurement and its spirit of continuous innovation. The gauge combines advanced technology with a user-friendly design to provide users with a more convenient and reliable measurement solution.

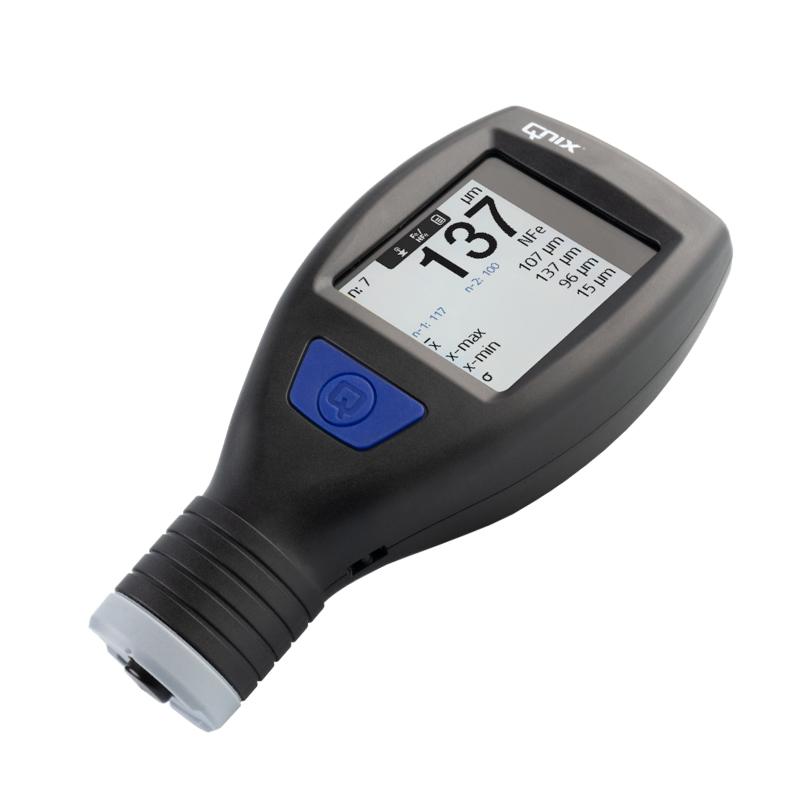

The QNix®4500+ Thickness Gauge provides excellent measurement accuracy with a display accuracy of up to 0.1um to meet the needs of users for accurate measurements. It adopts a 2-inch wide-angle omnidirectional IPS-TFT color LCD display, which allows users to clearly observe the measurement data and understand the condition of the measured object in real time.

The QNix®4500+ gauge has a wide range of applications and can be used to measure non-magnetic material coatings on ferromagnetic substrates such as chromium, zinc, copper, aluminum, etc., as well as non-metallic coatings on non-ferromagnetic substrates such as paints, aluminum oxide films, powders, etc. It is based on the Hall principle for the measurement of magnetic substrates and magnetic eddy current for non-magnetic substrates, which ensures the accuracy and stability of the measurement.

Features

• High-precision measurements

• Large-screen color LCD

• The screen automatically flips with the angle

• Automatic and manual switching between measurement substrate modes

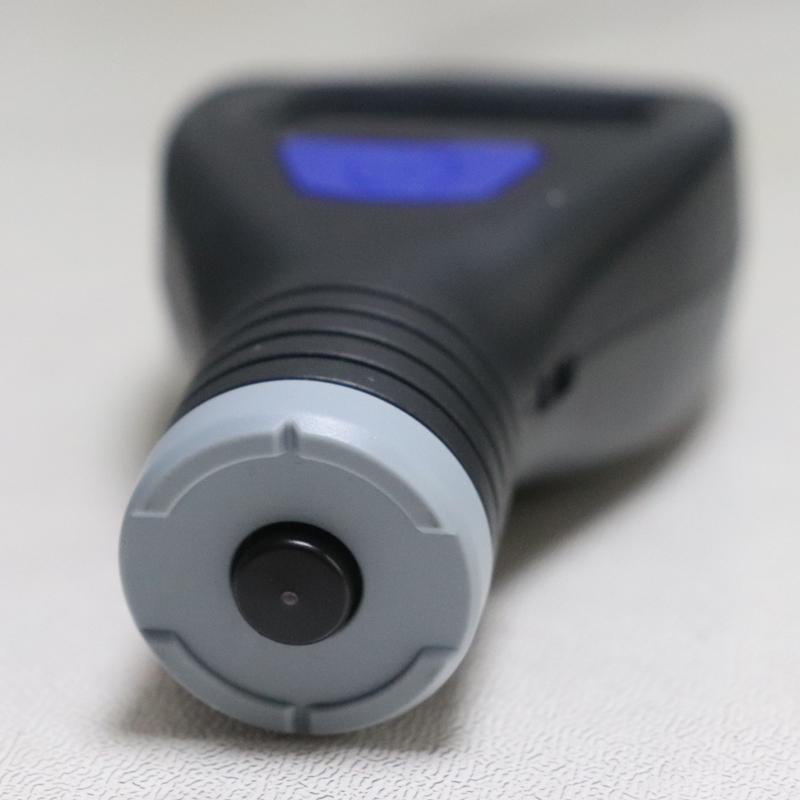

• Built-in abrasion-resistant ruby probe

• Simply zero, no calibration required

• With statistical function

• Compared to the previous generation QNix4500, it is more dustproof and waterproof

Scope of application

• Measurement of non-magnetic material coatings on ferromagnetic substrates, such as chromium, zinc, copper, aluminum, paints, oxide films, powders, etc.

• Measure non-metallic coatings on non-ferromagnetic substrates, such as paints, aluminum oxide films, powders, etc.

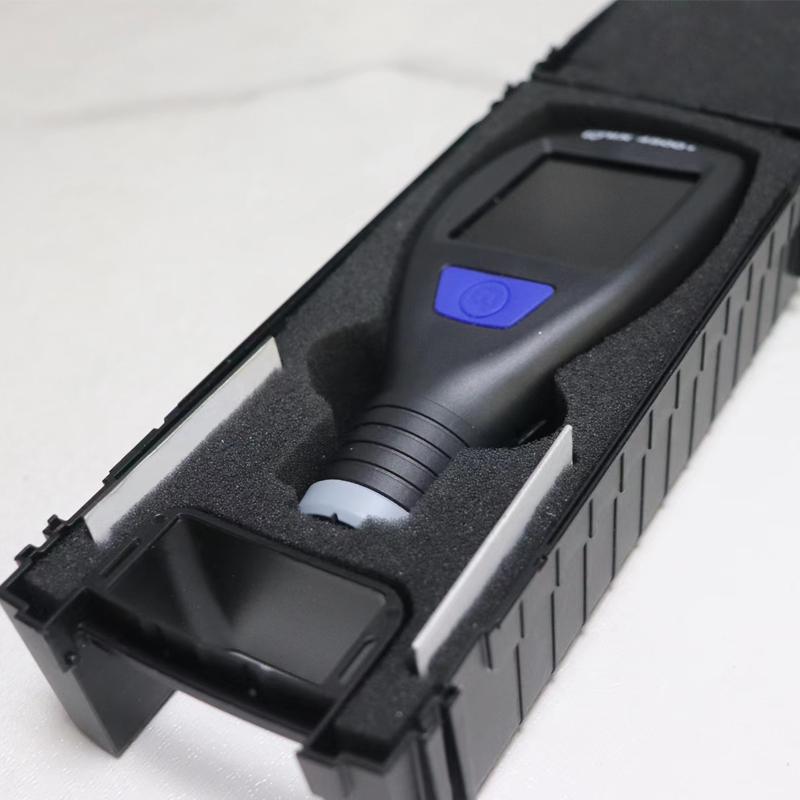

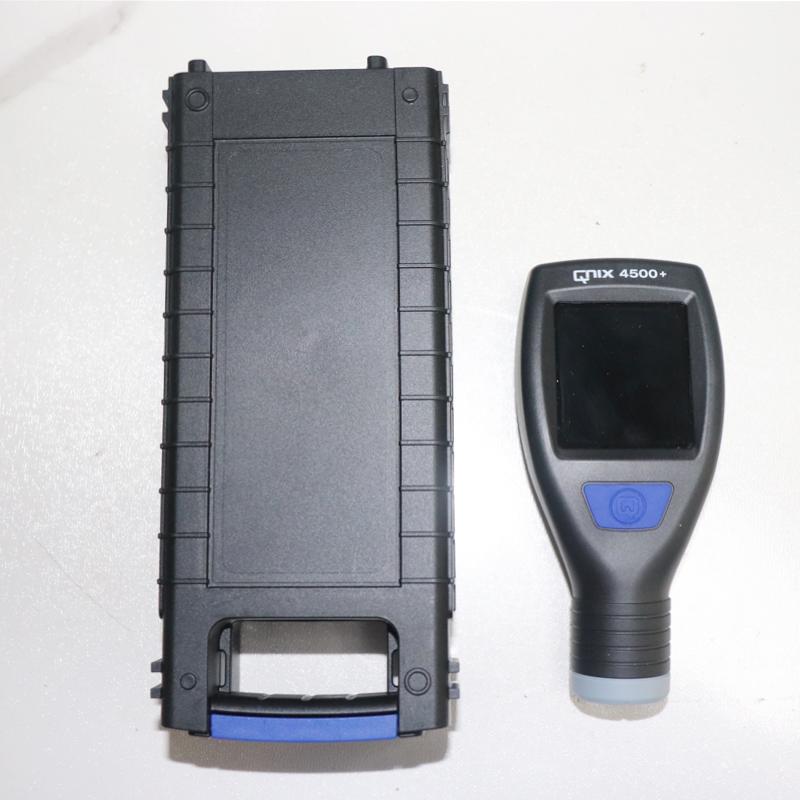

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
