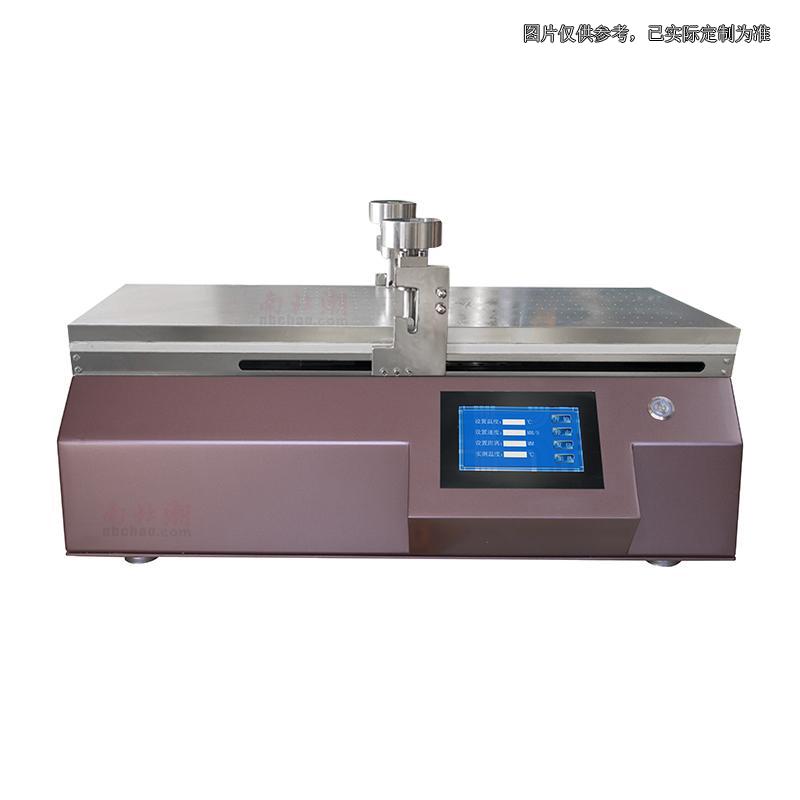

CHINA Smoothing Rods Adjustable Thickness Film Applicator hot-melt adhesive Film Applicator TBJ-A1-DJ10
SESmoothing Rods Spreader, with vacuum adsorption function, dedicated to hot-melt adhesive Spreader, adjustable thickness range 0~10mm, using touch screen operation, Coating table size 300 * 400mm.
$3180.00/set
PromotionLoading...
Coupon
Model：
TBJ-A1-DJ10
zy
Manufacturer authorization
Similar products
-
HuiNuo TM1000/04 bar Automatic Film Applicator Coating size 1000 * 500mm$ 3957.00SE -
CHINA Wire Rod Film Applicator Automatic Scraping Machine TBJ-A1-DJ11 Effective Area 700 * 800mm$ 4423.00 -
HuiNuo TM1000/05 Bar Coater Automatic Film Applicator effective coating area 800 * 500mm$ 3646.00SE -
HuiNuo TM1000/03 Automatic Film Applicator Bar Coater 80 * 60cm$ 4734.00SE -
HUINUO TM1000/01 wire rod coater effective coating area 400 * 400mm$ 2247.00SE
zy TBJ-A1-DJ10 Automatic Film ApplicatorSPEC
zy TBJ-A1-DJ10 Automatic Film ApplicatorDetails
zy TBJ-A1-DJ10 Automatic Film ApplicatorPacking list
- SKU
- NB047132
- Coating method
- Smoothing Rods Spreader
- Coating size
- 300 * 400Mm (can be customized)
- application width
- 300mm
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)

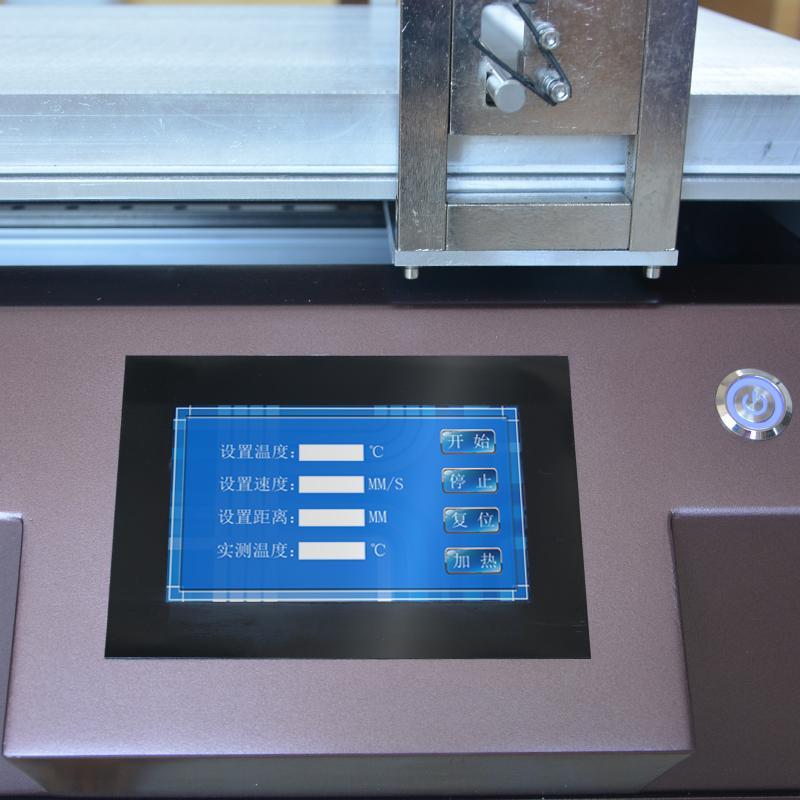

- Control mode
- Touch screen control
- Regulator display Accuracy
- ±0.001mm
- Display
- digital display
- Total power consumption
- 2060W
- Host Power Supply
- 220V 50Hz
- Dimension
- 690*410*520mm
- Machine Weight
- 65Kg
- Coating table material
- aluminum alloy
- Vacuum pump size
- 380*180*280mm
- Smoothing Rods Adjustable Thickness Range
- 0~10mm
- speed control
- Infinitely variable speed
- Substrate clamping method
- Vacuum adsorption
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- customizable function
- Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-A1-DJ10
Automatic Film Applicator
Smoothing Rods Spreader, with vacuum adsorption function, dedicated to hot-melt adhesive Spreader, adjustable thickness range 0~10mm, using touch screen operation, Coating table size 300 * 400mm.
Optional
|
|
|
FAQ
QDo you have UV Spreader equipment at home? You can apply acrylate, roll in the middle, and glue the upper and lower films at the same time, and the thickness should be the same.
A
Recommended Smoothing Rods Adjustable Thickness Film Applicator.
