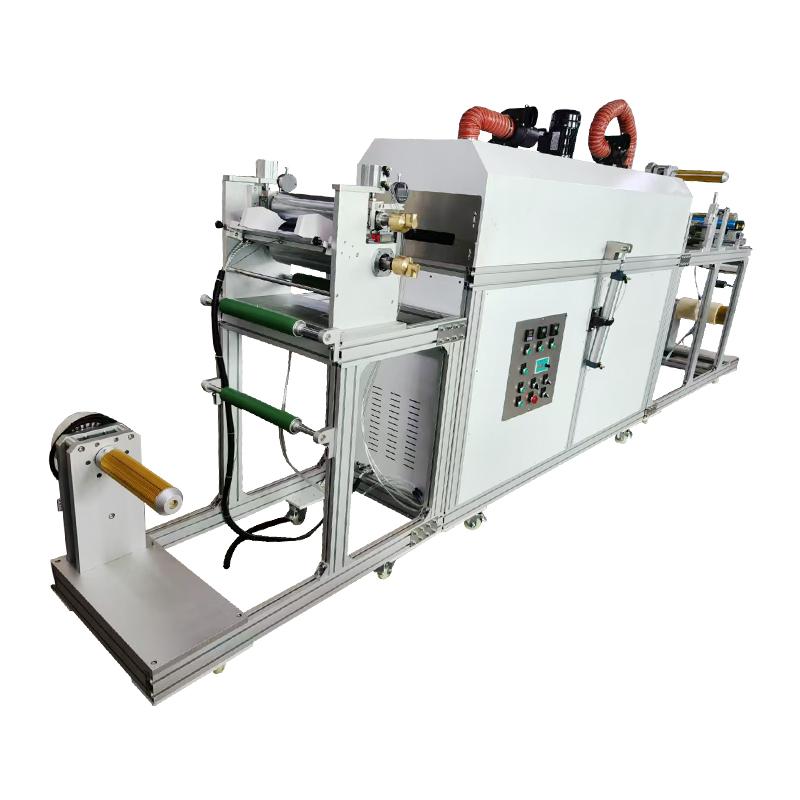

Chinese Rgd-02/300cl pilot coil Automatic Film Applicator correction film laminating machine
Rgd-02/300cl
Factory Rgd-02/300cl Automatic Film ApplicatorSPEC

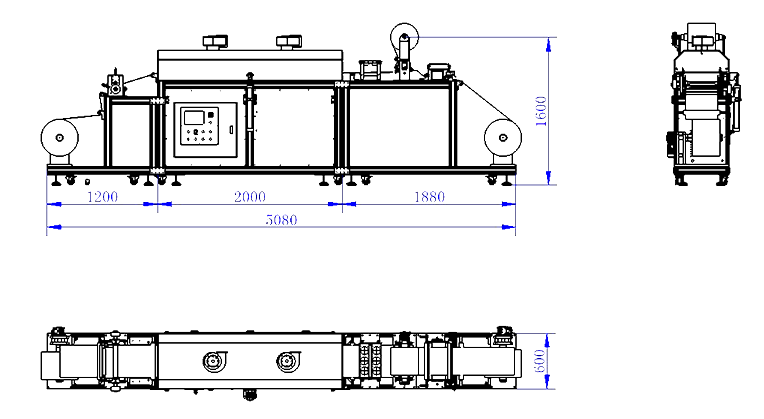

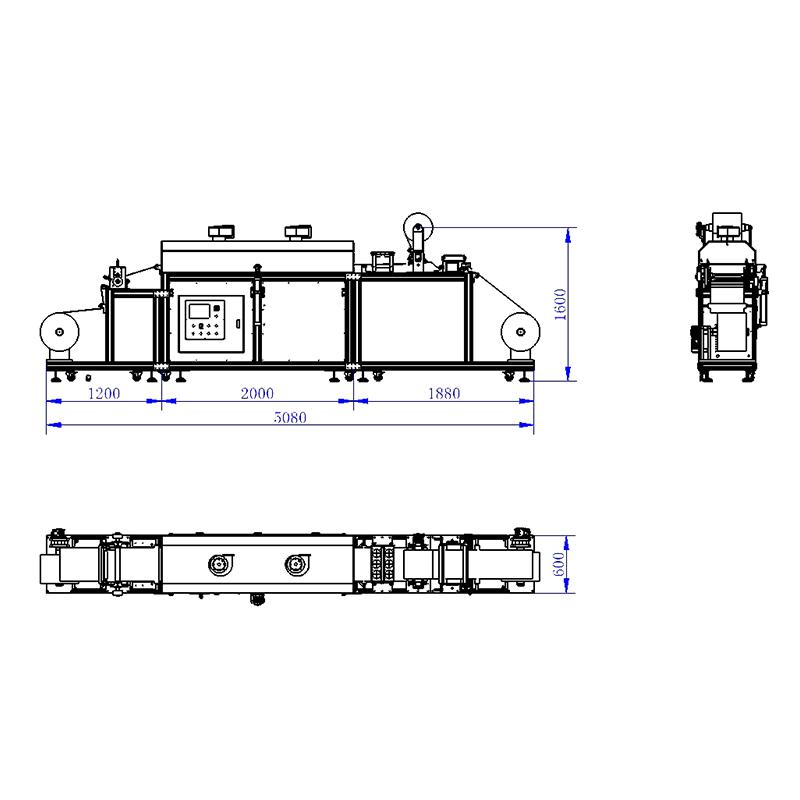

Factory Rgd-02/300cl Automatic Film ApplicatorDetails
Factory Rgd-02/300cl Automatic Film ApplicatorPacking list
- SKU
- NB047249
- Spreader process
- Unwinding → scraping → drying → air cooling → fitting → correction → winding
- Coating method
- Drawdown blade
- Film thickness range
- 0.005-2mm
- Film Accuracy
- ±5%
- Graduation
- 0.001mm
- percentile
- digital display
- Coating speed
- 0-20M/min adjustable
- Spreader roller heating
- Upper and lower roller oil temperature heating
- Spreader roller heating range
- RT+~150 ℃
- Storage board heating range
- RT+~100 ℃
- Unwinding outer diameter
- 400mm
- Effective Spreader Width
- ≤300mm
- Roll surface length
- 350mm
- Oven length
- 2m
- Oven temperature range
- RT+~150℃
- Air cooling device
- √
- Ventilation device
- √
- Box roll material
- Teflon material
- winding outer diameter
- 300mm
- Effective Spreader Width
- ≤300mm
- compound speed
- 1~10m/min
- Composite Accuracy
- 0.5mm
- composite width
- 100~300Mm adjustable
- Outer diameter of winding air expansion shaft
- ≥150mm
- Winding outer diameter range
- ≤500mm
- Dimensions
- 5080Mm * 600mm * 1600mm (subject to actual customization)
- Host Power Supply
- 380V/2KW
Introduction
The small laboratory coating machine is composed of a body, a gluing width adjustment device, a discharging rack, a gluing roller group, a thickness adjustment dial gauge, a transmission platform, a traction roller group, and a transmission mechanism.
Description of the structure of the coater
Body:The body of the equipment is all aluminum alloy + stainless steel plate.
Gluing width adjustment device:The width adjustment device consists of food-grade plastic and a movable brace.
Unwinding rack:The machine is equipped with two unloading racks, when the two materials do not deviate from the material pair in the laminating process, the deviation correction device automatically adjusts the material rack to move left and right to achieve the effect of aligning the two materials.
Transmission platform:The transmission platform is made of stainless steel, and its main function is to connect the substrate after gluing to the next process.
Traction roller set:The substrate is pulled by hand between the upper and lower rollers of the traction roller, the handwheel on the frame is tightened to make the traction roller, and the rubber ring of the upper roller is in contact with the lower roller, and the traction roller group is drawn over to the substrate by power transmission to make the coating work complete.
