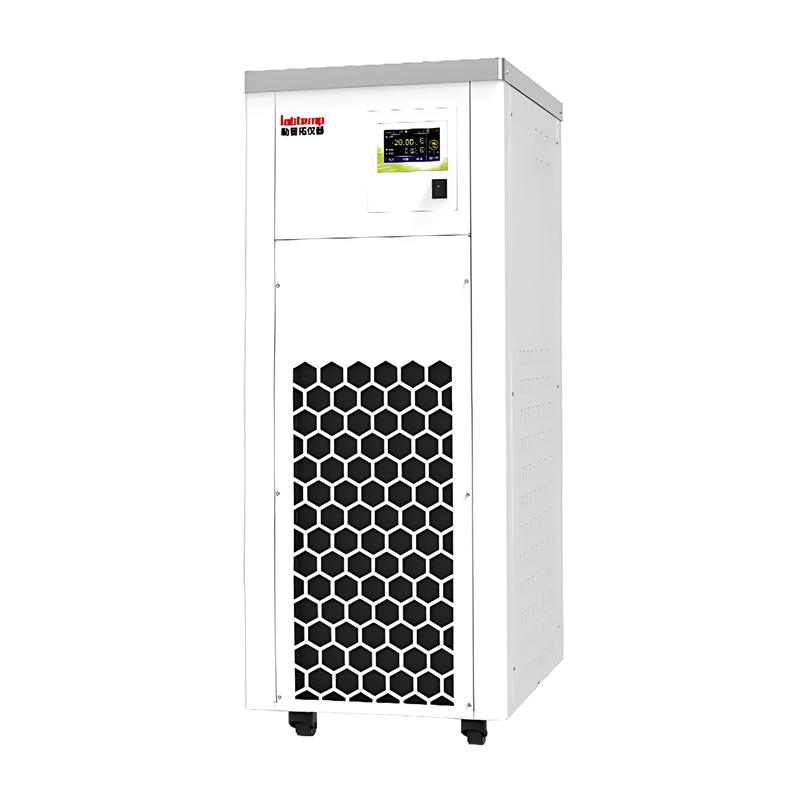

LABTOP icoolero-2020E Circulating Chiller 20L/4000W

icooler-2020E

Circulating Chiller

Operating temperature range -20~40 ℃, Temperature Fluctuation +/- 0.5K, Temperature display TFT display, accuracy 0.01 ℃, Heating power/, cooling capacity 4000W, pump maximum pressure 0~ 0.7 adjustable bar, pump maximum suction 0~ 0.4 adjustable bar, pump maximum Flow rate 0~33.3 adjustable L/min, tank volume 20L.

Introduction

The iCooler-2020E Cryogenic Coolant Circulating Pump is an advanced equipment designed for cryogenic coolant circulation. Features include a waterproof keypad design and a high-brightness TFT display with an accuracy of up to 0.1 for real-time indication of heating, cooling, cycling, and external temperature control status. Proportional refrigeration and PID control technology are used to ensure temperature stability of ±0.5°C, and support a variety of temperature setting methods. Equipped with a semi-enclosed Water Tank and corrosion-resistant stainless steel materials, it is suitable for a variety of application scenarios such as large-scale rotary evaporators, reactor systems, bioreactors, etc., with the characteristics of high efficiency and stability.

Features

•  Waterproof keyboard design, high-brightness TFT display, display accuracy of 0.1, operation panel can indicate heating, refrigeration, circulation, external temperature control of various operating states;

• Refrigeration and circulation can be started automatically with one key, and the cycle can also be started and stopped with one key separately;

• Three temperature setting methods: the setting temperature can be increased or decreased by pressing the button by 0.1 degrees, or by pressing and holding the button to quickly increase and decrease, and the setting value can be changed directly by moving the cursor.

• The combination of proportional refrigeration and PID control technology is more energy-saving, the temperature is more stable, and the stability is ± 0.5°C;

• Semi-enclosed Water Tank design, with intuitive liquid level window, convenient for users to observe the liquid level, while the Water Tank is equipped with a protective overflow port to prevent accidents;

• The immersion pressure suction pump stirs the liquid in the tank evenly, has high heat exchange efficiency, can be used for closed external circulation applications and open external circulation applications, and the machine can be used for multiple functions;

• The Circulating Chiller has a large flow rate and will not damage the glass components, and the speed of the Circulating Chiller can be adjusted to achieve adjustable pressure, suction and flow;

• Corrosion-resistant stainless steel SUS304 Water Tank and stainless steel SUS304 cooling coil, which will not produce patina and rust for long-term use;

• Three operating modes can be set: two automatic start operation modes and one manual operation button start mode;

• The circulating water system is designed with multiple purification water quality to prevent impurities from entering the Circulating Chiller system and make the service life of the pump longer;

• The buzzer can be set to be silent or sound;

• Stable and reliable system: high-performance and high-quality spare parts, stable quality and reliable performance;

• Environmentally friendly refrigerant, no toxic pollution;

• The high temperature and low temperature settings of the machine can be limited;

• Multiple safety protections: system over-temperature protection, high-low temperature protection, over-temperature and over-current protection; The hydraulic system can be protected by water pressure and pipeline blockage, and the light and sound can be reminded at the same time when the alarm is given; All kinds of alarm codes are directly displayed, and the error points can be directly determined;

Application

• Supporting the cooling of large-scale rotary evaporators, medium-to-large reactor systems, medium-to-large bioreactors, biological fermenters, etc.;

• Supporting distillation system, concentrator, extractor, condensation reflux device, etc.;

Packing list：machine x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
