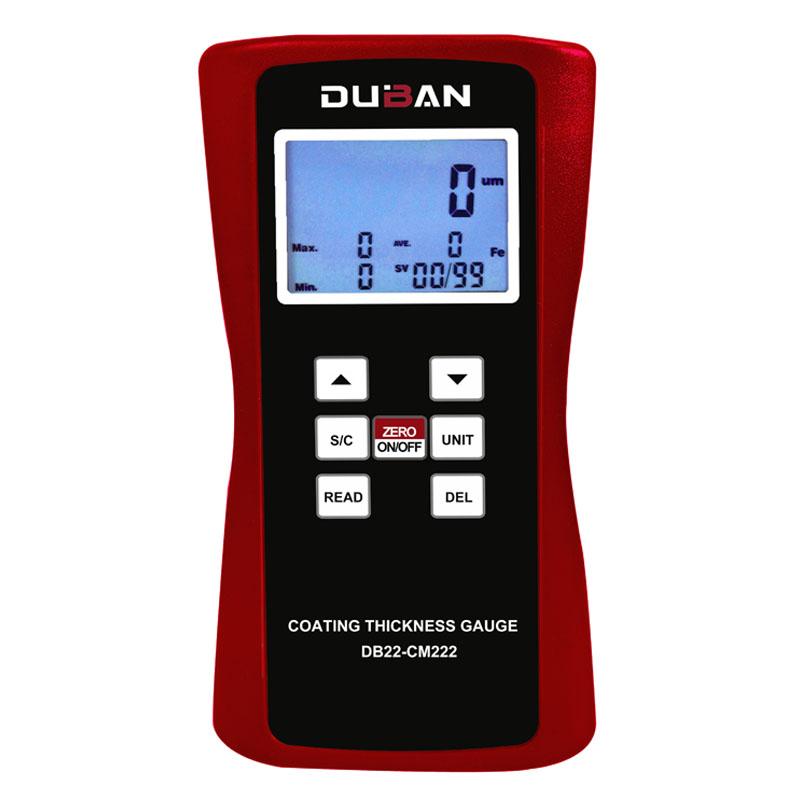

DUBAN DB22-CM222 Coating Thickness Gauge with F/NF probe Measurement range 0~2000μm

DB22-CM222

Coating Thickness Gauge

Measuring method F magnetic Induction & NF eddy current, Measurement range 0~2000μm (Miscellaneous Measurement range can be customized), resolution 0.1μm /1 μm, Precision +/- 1~ 3% n or +/- 2.5μm, minimum curved surface F: convex 1.5mm/concave 25mm; N: convex 3mm/concave 50mm, minimum measurement area 6mm, thinnest substrate 0.3mm.

Introduction

The DB22-CM222 Coating Thickness Gauge is a portable, battery-powered gauge that uses magnetic induction and eddy current principles. The measurement method conforms to the international standards ISO2178, ISO2360 and national standards GB4956, GB4957. Using a number of advanced technologies such as computer technology and non-destructive testing technology, the thickness of the measured object can be accurately measured without damaging it.

The data value has the characteristics of small measurement error, high reliability, good stability and easy operation, and is an indispensable non-destructive testing instrument for controlling and ensuring product quality. It is a portable measuring instrument, which can measure the thickness of coating and plating quickly, without damage and accurately; It can be used in the engineering field or in the laboratory, and is a reliable instrument for material protection.

F-type probe

The thickness of the non-magnetic overlay (e.g., paint, plastic, enamel, copper, aluminum, zinc, chromium, etc.) on the surface of magnetically permeable materials (e.g., iron, nickel) can be directly measured. It can be applied to the thickness measurement of electroplating, paint layer, enamel layer, aluminum tile, copper tile, babbitt alloy tile, phosphating layer and paper, and can also be used for thickness measurement of hull paint and attachments of underwater structural parts.

NF type probe

It can measure the thickness of the insulating covering layer on non-magnetic metal substrates, such as paint, plastic, rubber coatings on the surface of materials such as aluminum, copper, zinc, non-magnetic stainless steel, etc., and can also measure the anodizing thickness of aluminum or aluminum alloy materials.

Features

• 99 sets of measurement data can be stored; It has a statistical function, and automatically calculates the maximum, minimum, and average values during the statistical measurement period.

• It has metric and imperial unit conversion; Automatic shutdown and under-Voltage indication function.

• It can automatically memorize the calibration value; It can also automatically identify the material of the substrate to be measured.

• It uses USB and Bluetooth data output to communicate with the PC.

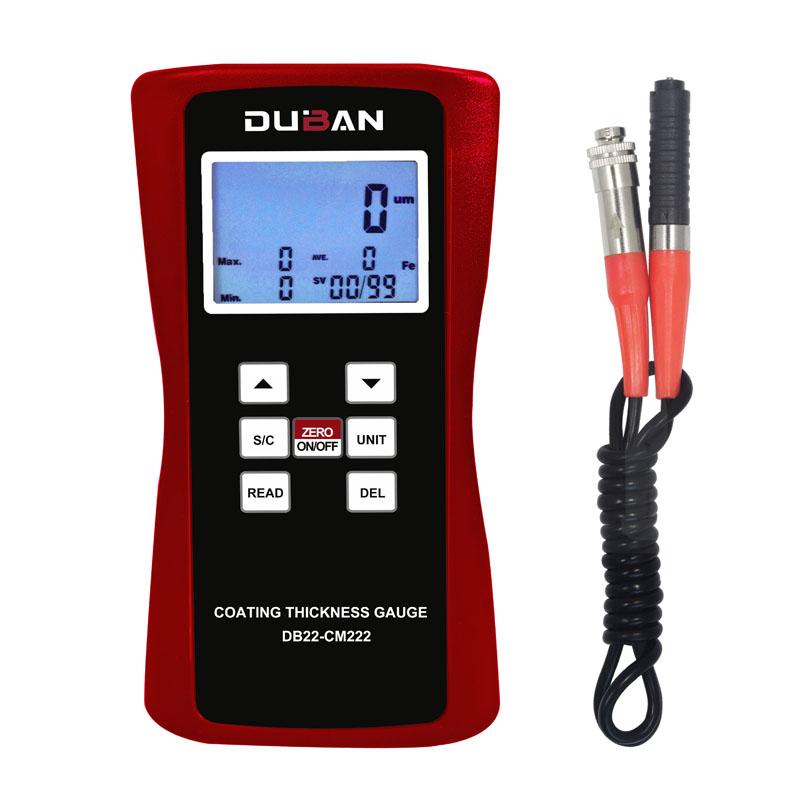

Packing list：Host X1, F/NF Sensors X1, F iron substrate X1, NF aluminum substrate X1, standard (5 pieces) X1, portable case (B04) X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
