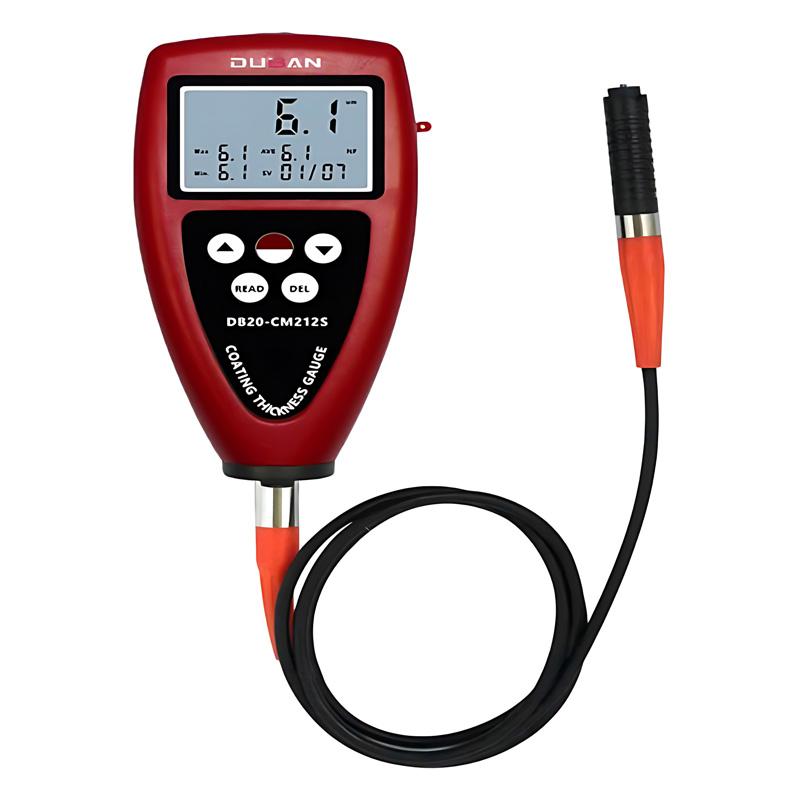

DUBAN DB20-CM212S Statistical Coating Thickness Gauge split probe 0~1250µm

DB20-CM212S

Coating Thickness Gauge

Display 4-digit digital backlit LCD, standard test range 0~1250µm/0~50mil (Miscellaneous Measurement range can be customized), resolution 0.1 µm (below 100 µm); 1 µm (above 100 µm); 0.1mil, Measurement accuracy +/- 1~ 3% n or +/- 2.5 µm or 0.1mil, thinnest substrate 0.3mm/12mil.

DB20-CM212S is a statistical split coating Thickness Gauge, which can store 99 sets of new measurement data values, and has the characteristics of small measurement error, high reliability, good stability, easy operation, etc., and is an indispensable non-destructive testing instrument for controlling and ensuring product quality. Spring-loaded guided-sleeve probes with wear-resistant hard metal probes can measure on hard or rough surfaces with constant compression force and stable sampling values.

DB20-CM212SIt is a portable battery-powered measuring instrument using the principles of magnetic induction and eddy current. The measurement method conforms to the international standards ISO2178, ISO2360 and national standards GB4956, GB4957. It uses a number of advanced technologies such as computer technology and non-destructive testing technology to accurately measure its thickness without damaging the measured body.

 F-type probe

The thickness of the non-magnetic overlay (e.g., oil) on the surface of a magnetically conductive material (e.g., iron, nickel) can be directly measuredlacquer, plastic, enamel, copper, aluminum, zinc, chromium, etc.). It can be applied to the thickness measurement of electroplating, paint layer, enamel layer, aluminum tile, copper tile, babbitt alloy tile, phosphating layer and paper, and can also be used for thickness measurement of hull paint and attachments of underwater structural parts.

NF type probe

It can measure the thickness of the insulating covering layer on non-magnetic metal substrates, such as paint, plastic, rubber coatings on the surface of materials such as aluminum, copper, zinc, non-magnetic stainless steel, etc., and can also measure the anodizing thickness of aluminum or aluminum alloy materials.

Features

• Wide measuring range and high resolution.

• Automatic memory of calibration values for ease of use.

• Small size and light weight.

• Digital backlit display with no parallax.

• It can store 99 sets of data; The statistical function of the instrument is realized by measuring the average, maximum and minimum values.

• With optional USB software and cables, it can communicate with a PC computer to realize data acquisition, processing, analysis, and printing functions.

• There is automatic shutdown to achieve power saving function.

Packing list：Host X1, wrist rope buckle X1, titanium base (1 piece) X1, aluminum base (1 piece) X1, calibrated diaphragm (1 set) X1, measurement Sensors X1, portable case X1, operation manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
