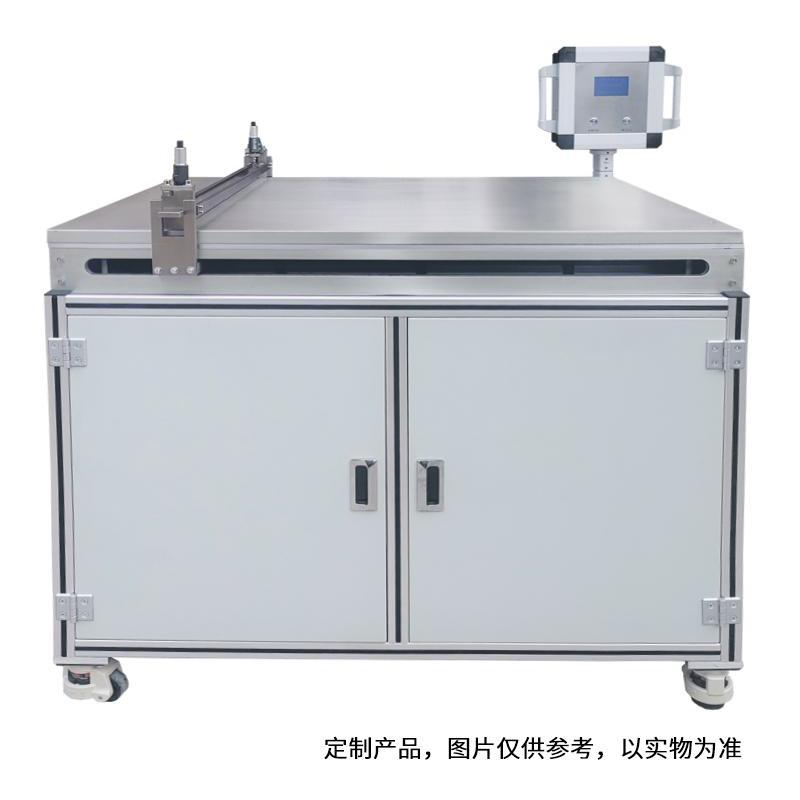

CHINA TBJ-X2-DJ15 Floor type metering rod & drawdown blade Film Applicator Effective film area 750 * 1100mm
SEFloor type, wire rod + drawdown blade + vacuum adsorption, effective Spreader area 750 * 1100mm, suitable for paper, release paper, PET film.
$14062.00/set
PromotionLoading...
Coupon
Model：
TBJ-X2-DJ15
zy
Manufacturer authorization
Similar products
zy TBJ-X2-DJ15 Automatic Film ApplicatorSPEC
zy TBJ-X2-DJ15 Automatic Film ApplicatorDetails
zy TBJ-X2-DJ15 Automatic Film ApplicatorPacking list
- SKU
- NB047478
- Drawdown blade Accuracy
- ±3%mm
- Drawdown blade film thickness
- 0~10mm
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Wire rod film thickness
- 1~ 571.5μm (Spreader thickness determined according to rod model)
- Wire rod film Accuracy
- ±0.003mm
- Host Power Supply
- 220V 50Hz
- Dimension
- Non-standard customization, subject to the actual order.
- speed control
- Infinitely variable speed
- Coating table material
- aluminum alloy
- customizable function
- Jet system device, UV solid inclusion device
- Speed regulation Accuracy
- 1mm/s
- vacuum aperture
- Φ1.2mm
- hole spacing
- 20*20mm
TBJ-X2-DJ15
Automatic Film Applicator
Floor type, wire rod + drawdown blade + vacuum adsorption, effective Spreader area 750 * 1100mm, suitable for paper, release paper, PET film.
TBJ-X2-DJ15 Floor Line Rod Scraper Coating Machine is a customized large-size coating machine, with an effective coating size of 750*1100mm, using two coating methods: wire rod and scraper, with vacuum adsorption function, suitable for coating on paper, release paper and PET film.
Optional
|
|
|
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
