KAIRDA NDT220 + Leeb Hardness Tester multiparameter Hardness Gauge

SE
Measurement range HLD (170-960), HS (30.6-102), HRC (17.9-69), HB (19-683), HV (80-1042), HRA (59.1-88), HRB (13.5-101), measurement direction 360 ° vertical down, oblique down, horizontal, oblique up, vertical up.
Model：
Certificate
Contact
Details SPEC

KairDa NDT220+ Leeb Hardness TesterSPEC

KairDa NDT220+ Leeb Hardness TesterDetails

KairDa NDT220+ Leeb Hardness TesterPacking list

SKU
NB047485
Measurement range
HLD(170-960),HS (30.6-102.6),HRC (17.9-69.5),HB(19-683),HV (80-1042),HRA(59.1-88),HRB(13.5-101.7)
Measurement direction
360 ° vertical down, diagonal down, horizontal, diagonal up, vertical up
Measurement material
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper, forged steel
error of indication
+/- 6HLD (Type D Impact Device)
Indication Repeatability
+/- 6HLD (Type D Impact Device)
Upper and lower limit setting range
(170-960)HLD
Indication calibrated
Adjustment with indication software
Data storage
Up to 600 Measured values (Impact 32~ 1)
Interface
USB 2.0
Operating Voltage
3.7V lithium-ion rechargeable battery
Charging Power Supply
5V/1000mA; Charging time 2.5~ 4.5 hours
Working time
About 50 hours; Operating temperature: -10 ℃~ + 55 ℃;
Operating Conditions
Storage temperature: -20 ℃~ + 75 ℃; Relative Humidity < 90%; no vibration in the surrounding environment, no strong magnetic field, no corrosion medium and serious dust.
exterior size
131 × 82x30mm (host)
Weight
About 0.6kg (main engine)
NDT220+
Leeb Hardness Tester
Measurement range HLD (170-960), HS (30.6-102), HRC (17.9-69), HB (19-683), HV (80-1042), HRA (59.1-88), HRB (13.5-101), measurement direction 360 ° vertical down, oblique down, horizontal, oblique up, vertical up.

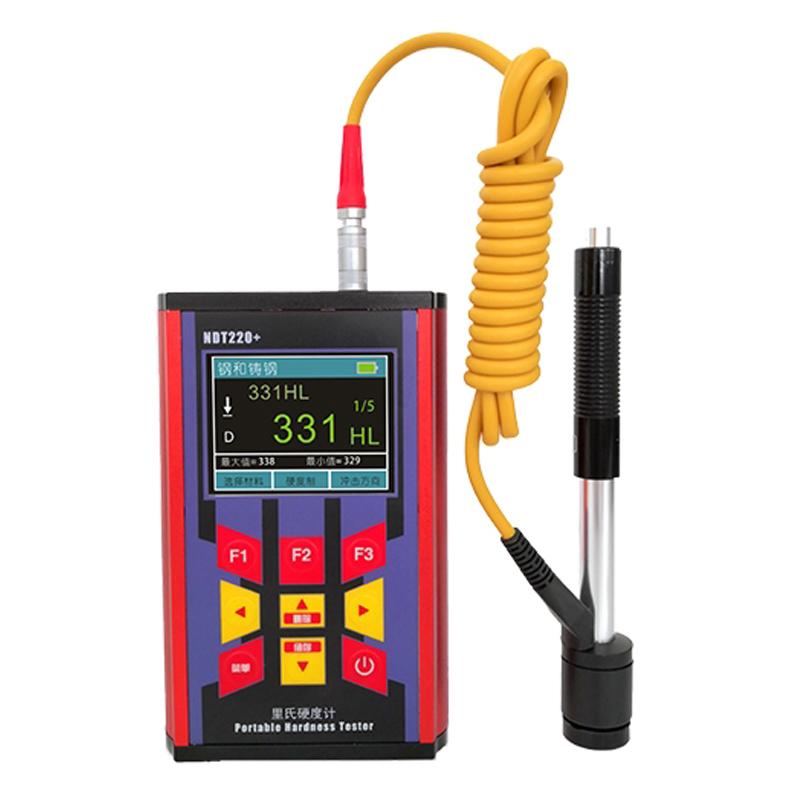

KAIRDA NDT220 + Leeb Hardness Tester multiparameter Hardness Gauge Picture

Introduction

NDT220+ color screen Leeb Hardness Tester can store up to 600 sets of data, can set up an overrun alarm system, adopts a true color screen LCD display, adapts to 7 different impact devices, the metal shell is suitable for harsh operating environments, can measure common metals and alloy materials, USB communication interface can be connected to a computer, anti-vibration, shock and electromagnetic interference, parallel conversion of each hardness measurement value, using 3.7V integrated lithium battery, automatic sleep/shutdown/power-saving function.

Scope of application

The roughness Tester can be widely used in mechanical processing and manufacturing, automobile manufacturing and spare parts processing, mechanical parts processing and transmission, mold manufacturing, agricultural machinery, paper industry, aerospace, military units, fluid catheters, medical equipment and other industries.
