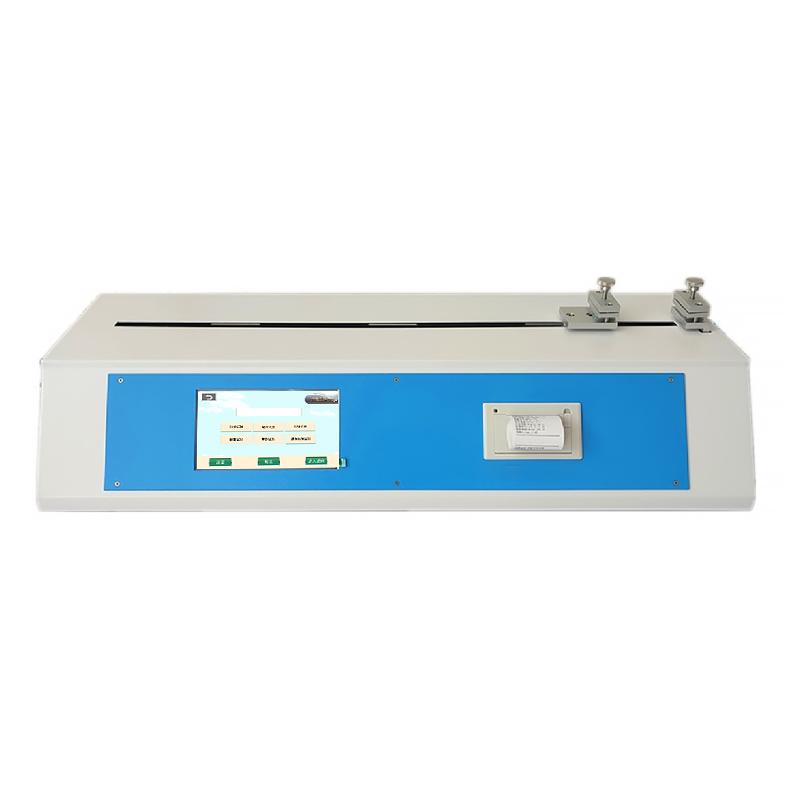

JINGWEN JW103CW-300N horizontal Tensile Strength Tester 0.5 Grade/300N

JW103CW-300N

Horizontal Tensile Strength Tester

Load Measurement range 0.05-300 N, accuracy class 0.5, 7 inch high definition Touchscreen, measuring Tensile Strength, Tensile Index, Elongation at Break and Tensile Energy Absorption Index of Paper and Cardboard similar sheet materials

JW103CW horizontal paper tensile Strength Tester uses paper tensile strength special software to determine the tensile strength, tensile index, elongation at break and tensile energy absorption index of paper and cardboard, paper towels, wet wipes and other similar thin sheet materials. It is suitable for high-precision testing of all kinds of paper, anodized aluminum, release liner, release film, isolation paper, glassine silicone oil paper, protective film, transfer film, composite film, tape, adhesive and other products (measurement of tensile strength, peel force, tensile strength, peel strength, elongation, crack length, tensile energy absorption, tensile energy absorption, tensile energy absorption index, etc.).

Structural principle

This machine adopts a horizontal structure, and the load chuck is dragged by the motor of the high-precision deceleration servo drive system, and the loading performance is stable. The whole machine is composed of a drag motor, a main chassis, a microcomputer controller, a micro printer, etc., and the force measurement unit is composed of a digital control system with a high-precision force sensor and a central processing unit.

Enforce the standard

ISO 1924 "Paper and Cardboard – Determination of Tensile Strength"

GB/T 12914 "Determination of tensile strength of paper and cardboard (constant speed tensile method)"

ISO1924-2 Paper and Cardboard - Determination of Tensile Strength Part 2: Constant Velocity Tensile Method

Technical characteristics

1. Adopt 7-inch high-definition touch screen, microcomputer control, and professional measurement and control software for paper tensile strength.

2. Support Chinese/English operating system.

3. Test shutdown mode, reach displacement, arrival deformation, reach force value, fracture judgment force, fracture judgment percentage, force value holding, stress holding, multiple shutdown modes to meet the needs of different material testing.

4. The force units are KN, N, Kg, Kgf and Ibf. Choose from a variety of units such as the number of decimal places, 1 to 3 decimal places.

5. The deformation units are m, dm, cm, mm, and in. Select 1 to 3 decimal places for the number of decimal places.

6. The strength units are Pa, kPa, MPa, and bar. Select 1 to 3 decimal places for the number of decimal places.

7. Precision ball screw transmission system, double guide rails on both sides (non-optical axis linear guide rails) greatly improves the accuracy of transmission displacement, and can realize stepless speed regulation function. 、

8. The intelligent calculation test results have three test functions: maximum, average value and real-time value

9. Equipped with a micro silent printer, the test results can be output for group statistical analysis.

10. The system comes with overload protection, limit protection, emergency power-off protection, and zero failure in manual operation

11. USB connection computer supports Excel data statistics, test report printout (optional)

Serial models

Packing list：host, general fixture, micro printer, fuse tube, power cord, printing paper, manual, certificate of conformity, packing list

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
