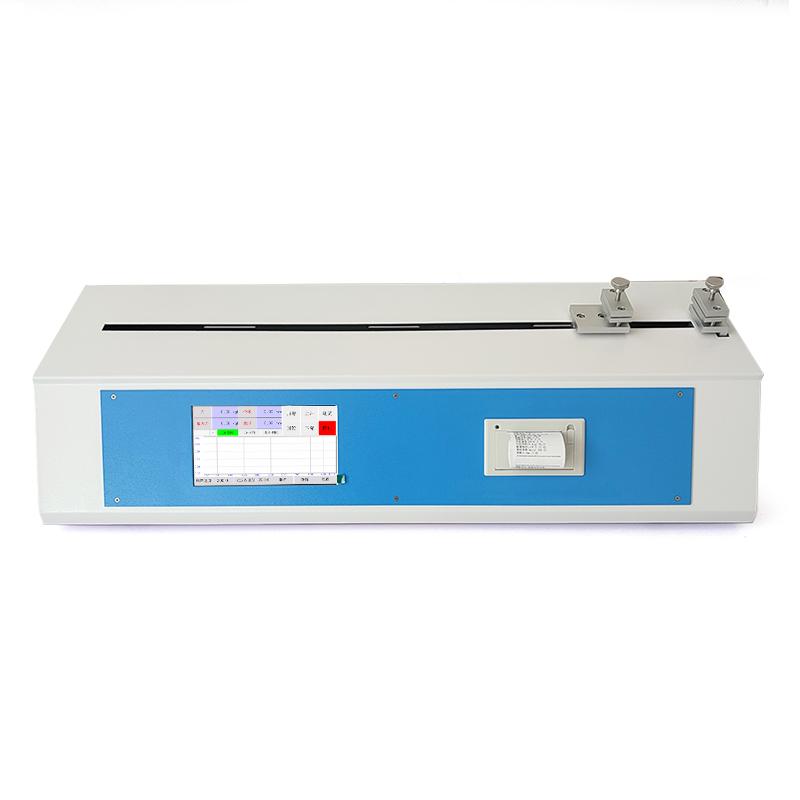

JINGWEN JW103CW02-200N horizontal heat seal Peel strength Tester 0.5 grade/200N

JW103CW02-200N

Peel strength Tester for horizontal heat seal

Measurement range 0.03-200 N, accuracy 0.5, 5 inch high definition touch screen, for measuring film heat seal strength and adhesive tape 180 degree peel strength.

JW103CW horizontal heat sealing Strength Tester is a special testing machine for measuring the heat sealing strength of thin film and the 180-degree peel test of adhesive tape. It is suitable for tensile testing of anodized aluminum film, isolation paper, Glassine silicone oil paper, other papers, protective films, transfer films, composite films, adhesives, adhesives and other products.

Technical characteristics

• It adopts 5-inch high-definition touch screen and microcomputer control

• Support Chinese/English operating systems

• In the test shutdown mode, the arrival displacement, arrival deformation, arrival force value, and force value units are KN, N, Kg, Kgf, and Ibf. Choose from a variety of units such as the number of decimal places, 1 to 3 decimal places

• The deformation units are m, dm, cm, mm, and in. Select 1 to 3 decimal places for the number of decimal places

• The units of strength are Pa, kPa, MPa, and bar. Select 1 to 3 decimal places for the number of decimal places

• The precision ball screw transmission system, double guide rails on both sides greatly improve the accuracy of transmission displacement, and can realize the function of stepless speed regulation

• The intelligent calculation test results have three test functions: maximum, average value, and real-time value

• Equipped with a micro silent printer, the test results can be output for statistical analysis in groups

• The system comes with overload protection, limit protection, emergency power-off protection, and zero failure in human operation

• USB connection to computer supports Excel data statistics, test report printout (optional)

Structural principle

This machine adopts a horizontal structure, and the load chuck is dragged by a high-precision deceleration electronic speed regulating motor, and the loading performance is stable. The whole machine is composed of a drag motor, a main chassis, a microcomputer controller, a micro printer, etc., and the force measurement unit is composed of a digital control system with a high-precision force sensor and a central processing unit.

Packing list：host, general fixture, micro printer, fuse tube, power cord, printing paper, manual, certificate of conformity, packing list

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
