UV UV curing coil coating machine Rxg-01/600uv automatic film laminating machine

Process: unwinding - scraping - film laminating - UV curing - drying - winding, the diameter of the material roll is 3 inches, the effective application width is 600mm, suitable for UV glue, tape, etc.

$20280.00/set

PromotionLoading...

Coupon

Model：

Rxg-01/600uv

Factory

Contact

Details SPEC Con

Factory Rxg-01/600uv UV UV curing Film ApplicatorSPEC

Factory Rxg-01/600uv UV UV curing Film ApplicatorDetails

Factory Rxg-01/600uv UV UV curing Film ApplicatorPacking list

SKU: NB047550

production speed: 0-5M/min

Coating size: Max.600mm

Coil diameter: 3 inches.

Power: 1.4KW

Power Supply: Three-phase 220V

unroll: With tension control

control: Touch screen (Kunlun Tongtai)

inflated shaft: 2

Painting process: Unwinding, scraping, film laminating, UV curing, drying, winding

Coating method: scraping

Drying channel length: 1m

UV curing area: 600*500mm

UV light main peak wave: 365nm

UV light curing wavelength: 350-450nm

switch: Aviation plug/separate switch

Rxg-01/600uv

UV UV curing Film Applicator

Introduction

UV curing coil coating machine Rxg-01/600uv is a roll-to-roll film coating machine with a coating width of 600mm and UV ultraviolet curing function, which adopts the scraping method and has a 1m oven for coating UV glue on the release film.

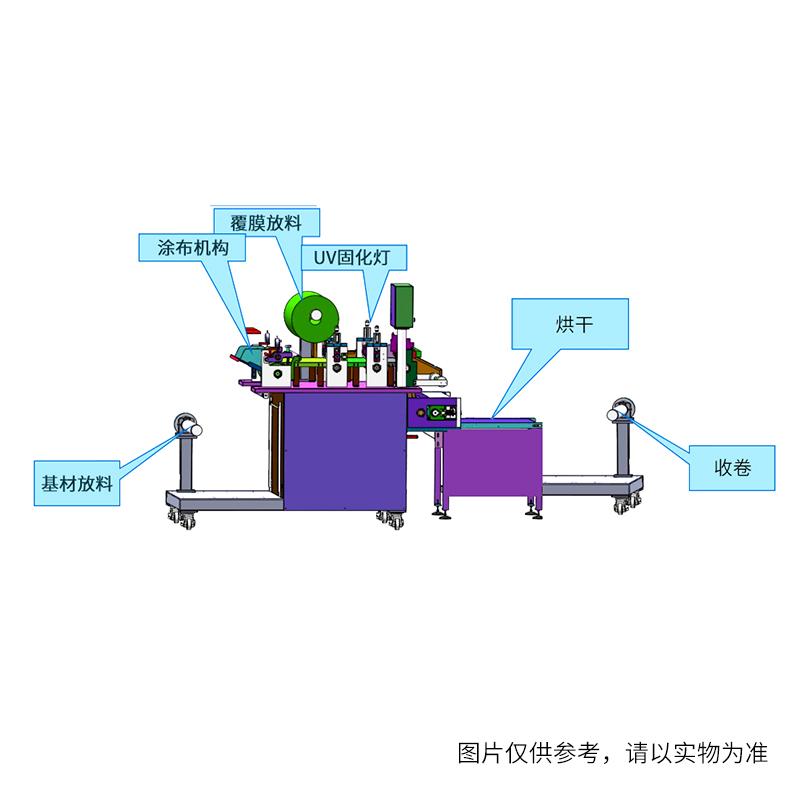

Product structure diagram

Domestic brand Rxg-01/600UV UV UV curing coil coating machine details Figure 1

FAQ

QI want to apply UV glue on the release film, the application width is about 600mm, and the function of rewinding and unwinding is required. What is the recommendation?

A Rxg-01/600uv UV curing coil Film Applicator can be used for release film coating UV glue, the effective application width is exactly 600mm, the use of scraping method, with 1 meter oven and UV curing function, can ensure rapid curing of glue, improve production efficiency.
