China

TAISITE EX-91LU Explosion-proof Vacuum Oven 91L/2.0KW

SE
Temperature range RT + 10~250 ℃, vacuum range < 133PA, Temperature resolution 0.1 ℃, Temperature Fluctuation +/- 1 ℃, Heating time 100 minutes, content volume 91L.
Model：
Certificate
Contact
Details SPEC

TaiSiTe EX-91LU Vacuum OvenSPEC

TaiSiTe EX-91LU Vacuum OvenDetails

TaiSiTe EX-91LU Vacuum OvenPacking list

SKU
NB047642
way
Decompression, four-wall heating
Temperature range
RT+10~250℃
Use vacuum range
<133PA
Temperature Resolution
0.1℃
Temperature Fluctuation
±1℃
Heating time
120 minutes
Interior
stainless steel
exterior
Cold rolled steel plate, surface resistant painting
heat insulation material
aluminum silicate fiber
heater
Stainless steel heating tube 4-sided heating (explosion-proof qualification)
Viewing Window
Bulletproof Tempered Glass
Rated power
2.0KW
Temperature Control mode
LCD dual PID control
Temperature setting method
Tap the explosion-proof four-button setting.
Temperature representation
Measurement temperature display: liquid crystal upper display; set temperature display: liquid lower display
timer
0~9999 minutes (or hours), Timer function can be selected (none, thermostatic Timer, running Timer)
Operational Features
Fixed-value operation, regular operation, automatic stop, scheduled start
Program Mode
optional
Sensors
Explosion-proof armored PT100 (explosion-proof qualification)
External connection protection
Adopt explosion-proof flexible connecting pipe set (with explosion-proof qualification)
Additional features
Deviation correction, menu button lock, power failure memory, overlift preventer
Explosion-proof level
Ex de mb IIB T4 Gb
Inner Dimensions (width * depth * height)
450*450*450mm
Dimensions (width * depth * height)
640*642*796mm
Packing size (width * depth * height)
769*855*923mm
Internal Volume
91L
Shelf load bearing
15kg
Shelf layer
2nd floor
Shelf spacing
185mm
suction port
Φ10mm
Exhaust Port
Φ10mm
Power Supply
AC380V/9.1A (50/60Hz) rated current
Net Weight/Gross Weight
82/105kg
Shelf
All Aluminum Shelf 2 Pieces
Optional Accessories
Explosion-proof barrier, explosion-proof hinge, explosion-proof pressure relief door, explosion-proof seven-inch touch screen instrument (with Linear dispersion, program function), explosion-proof mouse, Shelf, vacuum pump
EX-91LU
Vacuum Oven
Temperature range RT + 10~250 ℃, vacuum range < 133PA, Temperature resolution 0.1 ℃, Temperature Fluctuation +/- 1 ℃, Heating time 100 minutes, content volume 91L.

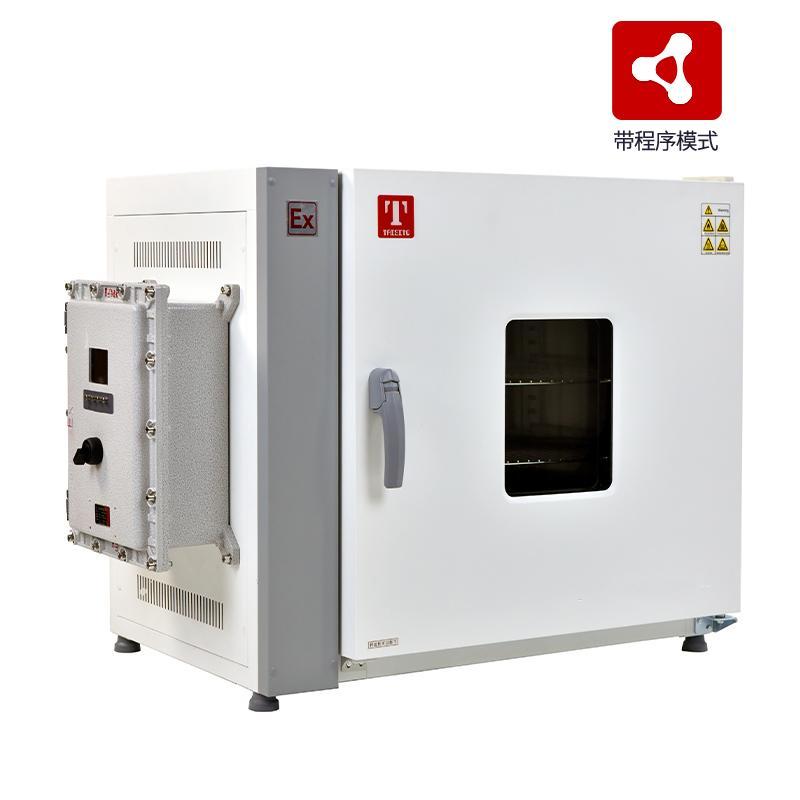

TAISITE EX-91LU Explosion-proof Vacuum Oven 91L/2.0KW Picture

Features

  • It is specially designed for drying heat-sensitive, easily decomposing, and oxidizing substances, and can be flushed into inert gases.

  • The box body adopts flameproof type, the equipment and electrical appliances adopt the overall explosion-proof technology, and the explosion-proof control box is centralized protection to prevent the leakage of unsafe factors such as high temperature and static electricity and sparks.

  • This equipment is mainly composed of drying box, explosion-proof heating system, explosion-proof electrical control and other parts.

  • The inner tank of the box is made of brushed stainless steel, and the shell is made of high-quality steel plate, which is beautiful and generous, and the inner tank is easy to clean.

  • The external explosion-proof 304 heating tube heating method of the inner tank has no live components in the box, which is safe and reliable.

  • LCD multi-data full-screen operation display, power failure memory, power failure compensation.

  • Convenient operation, fixed value operation, timed operation, automatic stop, scheduled start.

  • Explosion-proof flexible connecting pipes are used for exposed connecting wires to isolate electrostatic sparks and temperature leakage to ensure safety.

  • Overlift alarm, menu lock, overlift prevention.

Enforce the standard

GB/T29251-2012

Explosion-proof rating

ExdemblBT4Gb

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
