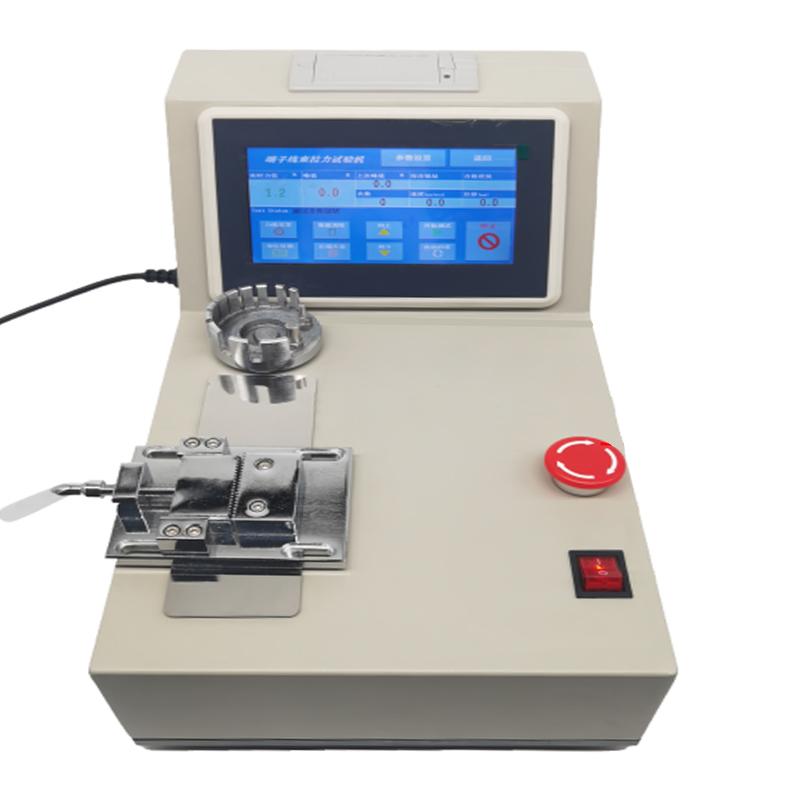

Haibao DXL-500 Wire Harness Terminal Tensile Tester Range 500N

DXL-500

Wire harness terminal Tensile Tester

Range 500N, load resolution 0.1N, accuracy class 0.5, force value error of indication ≤ +/- 0.5%, force holding time 0-999.9 seconds (can be freely set), displacement stroke 38mm, displacement resolution 0.1mm, displacement error of indication ≤ +/- 0.1mm.

DXL series Tensile Testing Machine is a special testing machine for testing the pull-off force of wiring harness and terminal block, the model is small in size, easy to place the testing machine on the table, and the operator can easily operate it on a chair. The precision automatic control and data acquisition system is adopted to realize the full digitization of the data acquisition and control process, with the functions of speed, displacement controllable, automatic operation test, number of test samples, qualified judgment, time delay in place and preset force delay, and printing of test results.

Features

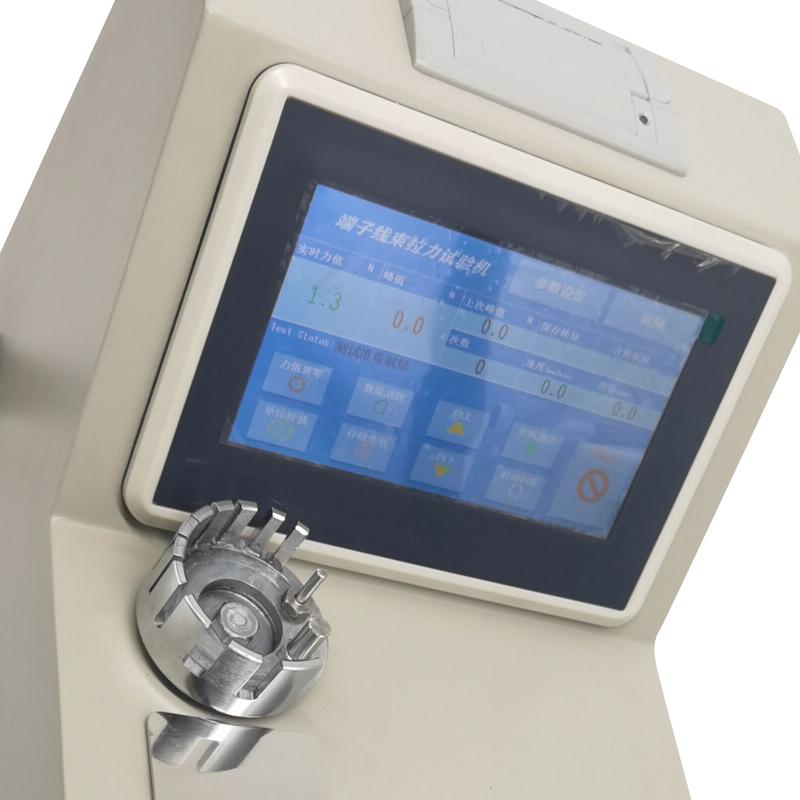

• 7-inch touch screen, friendly human-computer interface, simple and easy to use, one-click to start the test.

• 6 force units N, kgf, lbf, gf, kN, tf.

• There are 3 displacement units: mm, cm, and in.

• The running speed can be set and the settings are wide to adapt to a variety of different test speed requirements (speed controllable).

• The running distance can be set, and after running to the set position, it can be held for a delay or immediately return to the origin point (the displacement can be controlled).

• Force holding function: When running to the specified position or reaching the set force value, the equipment remains motionless, and the time can be set freely (the force value and time can be controlled).

• Set force value round-trip motion function: Set force value round-trip movement, force value setting, holding time.

• Pull-off and stop function: After the loading force on the object is applied and the load force is discharged, it immediately returns to the origin point or stops.

• Real-time display of real-time force value, peak force value, last peak value, displacement, running speed, qualified judgment and test times.

• The test results are judged to be qualified, and the maximum, minimum, average value, and pass rate are automatically counted.

• 100 sets of test data storage (each set of tests can be the running results obtained under different configuration parameters, which is convenient for users to confirm the test results after modifying the configuration).

• The machine comes with a micro printer that can print the test results.

• It comes with overload protection and limit protection, emergency shutdown device, and leakage protection device.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
