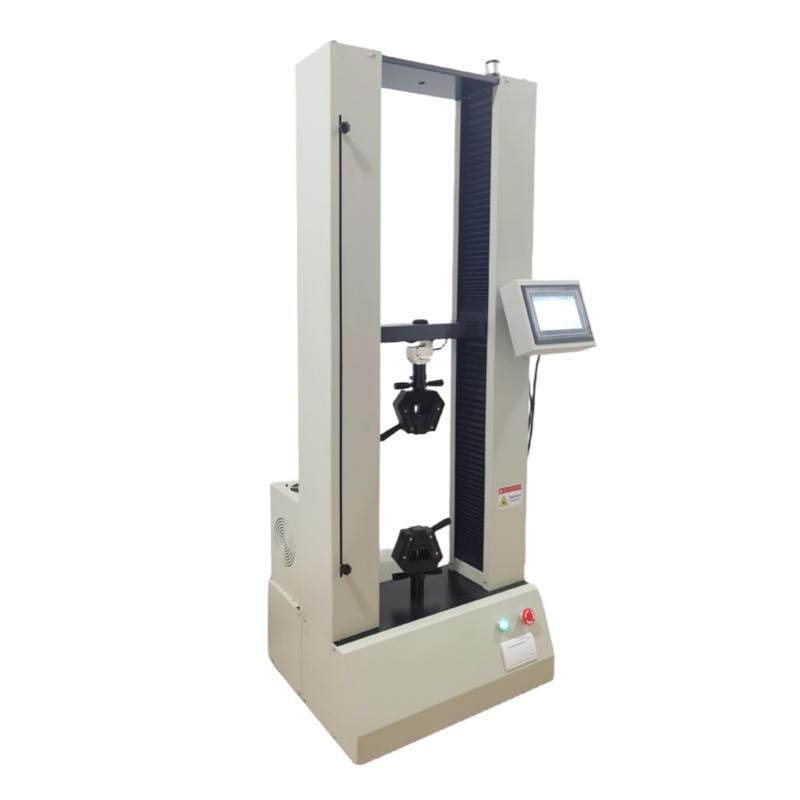

Hypertherm LY-5000 electronic universal testing machine, range 5000N/500KG

LY-5000

Electronic universal testing machine

Range 5000N; 500KG, load Graduation 0.1 N 0.01kg 0.01lb, deformation resolution 0.001mm.

LY series electronic universal testing machine is an economical and practical model developed by our company, this product uses high-strength smooth bar to fix the upper beam and the working table, so that it constitutes a high-rigidity portal frame structure, driven by a stepper motor, and the stepper motor drives the beam to move up and down through the transmission mechanism to realize the test loading process.

It is mainly used for testing the mechanical properties of various metals, non-metals and composite materials. The sophisticated automatic control and data acquisition system realizes the full digital adjustment of the data acquisition and control process. In the tensile compression test, the maximum bearing tensile pressure, tensile compressive strength, elongation compression deformation, elongation and other technical indicators of the material are detected. After the above test parameters are completed, the microcomputer controller automatically calculates them according to the test parameter conditions set at the beginning of the test, and displays the corresponding test results and test curves at the same time; After the end of the test, the test parameters can be queried and displayed, and the test results can be printed.

The equipment is used in metal, adhesive, pipe, profile, aerospace, petrochemical, waterproofing membrane, wire and cable, textile, fiber, rubber, ceramics, food, pharmaceutical packaging, geotextile, film, wood, paper and other manufacturing industries and product quality supervision departments at all levels, and is also used in colleges and universities for teaching and demonstration work.

Applicable Standards

[GB/T16491-1996], [GBT232-2010], [GBT6569-2006], [GB/T 12833-2006], [GBT 16491-2008], [JJG139-1999], [JJG 157-1995], [GB/T 2611-2007] and other national and industry standards.

Features

• 7-inch touch screen, friendly human-computer interaction interface, simple and easy to use, one-key start test;

• 6 force units: N, kgf, lbf, gf, kN, tf;

• 3 displacement units: mm, cm, in;

• The index value can be set freely: the force value can be set to 5 decimal places at most; The displacement index value can be set to up to 5 decimal places;

• The running speed can be set (the speed can be controlled), and the starting speed, test speed and reset speed can be set separately to improve the test efficiency and test accuracy;

• The amount of specimen deformation can be set (the displacement can be controlled);

• The loading force can be set (the force value can be controlled), and after the preset force is reached, it can be delayed and maintained (time controllable), automatically return to the initial position or stop immediately;

• Real-time display of displacement, deformation, running speed, real-time force, peak force and test time;

• It provides test modes such as [General Tensile Test], [General Compression Test], [General Force Retention Test], [Three/Four-point Bending Test], [Peel Performance Test], [Tear Performance Test], [Waterproofing Membrane Test] and [Electrical Casing Test]. Including tensile and compressive strength test (strength unit: MPa) and elongation, compressibility and other functions;

• Force holding type test and pressure type test (except [three/four-point bending test]) with PID speed force value double-loop control;

• It can test 10 samples, and automatically calculate its average, maximum, minimum and other test results;

• The test results are displayed with a variety of coordinate curves: force value-time, force value-deformation, deformation-time;

• After the test is completed, the data bar can be automatically saved, and up to 10,000 pieces of data can be saved;

• The machine comes with a micro printer, which can print the test results;

• It comes with overload protection and limit protection, emergency shutdown device, and leakage protection device.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
