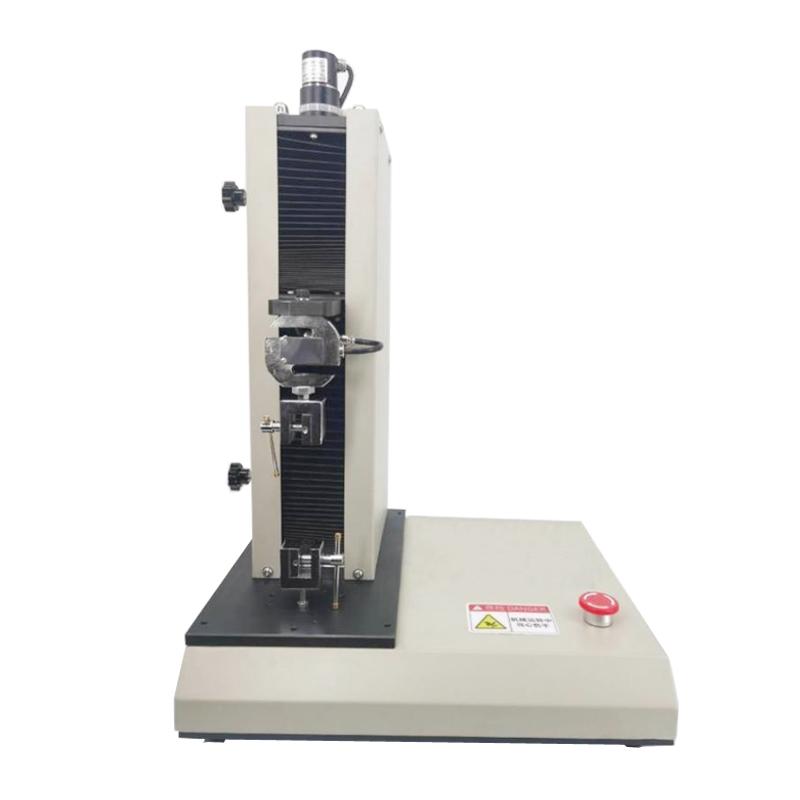

Haibao ZYD-1000 desktop microcomputer-controlled universal testing machine, range 1000N/100Kg

ZYD-1000

Desktop Microcomputer Controlled Universal Testing Machine

Range 1000N; 100Kg, load Graduation 0.1N0.01Kg0.1lb, deformation resolution 0.001mm, unit force value units: gf, Kgf, N, KN, tf, Lbf; displacement units: mm, cm and in, Frequency 50HZ, force value error of in dication ≤ +/- 0.5%, stroke 170mm.

ZYD series universal testing machine is a desktop small microcomputer control testing machine, small size, easy to place the testing machine on the table, the operator can easily operate it on the chair.

It is mainly used for testing the mechanical properties of various metals, non-metals and composite materials. Sophisticated automatic control and data acquisition system is used to realize the full digital adjustment of data acquisition and control process. In the tensile compression test, the maximum bearing tensile pressure, tensile compressive strength, elongation compression deformation, elongation and other technical indicators of the material are detected. After the above test parameters are completed, the Windows host computer software automatically calculates them according to the test parameter conditions set at the beginning of the test, and displays the corresponding test results and test curves at the same time; After the end of the test, the test parameters can be queried and displayed, and the test results can be printed. All experiments can be done automatically on a computer with the mouse.

The equipment is used in metal, adhesive, pipe, profile, aerospace, petrochemical, waterproofing membrane, wire and cable, textile, fiber, rubber, ceramics, food, pharmaceutical packaging, geotextile, film, wood, paper and other manufacturing industries and product quality supervision departments at all levels, and is also used in colleges and universities for teaching and demonstration work.

Meets standards

[GB/T16491-1996], [GBT232-2010], [GBT6569-2006], [GB/T 12833-2006], [GBT 16491-2008], [JJG139-1999], [JJG 157-1995], [GB/T 2611-2007] and other national and industry standards.

Features

• Test software: Chinese WINDOWS interface, menu prompt, mouse operation.

• 6 force units N, kgf, lbf, gf, kN, tf.

• There are 3 displacement units: mm, cm, and in.

• The index value can be set freely: the force value can be set to 5 decimal places at most; The displacement index value can be set to up to 5 decimal places.

• The running speed can be set (speed controllable), and the starting speed, test speed, and reset speed can be set separately to improve the test efficiency and test accuracy.

• The amount of specimen deformation can be set (the displacement can be controlled).

• The loading force can be set (the force value can be controlled), and when the preset force is reached, it can be held for a delay (time controllable), automatically return to the initial position, or stop immediately.

• It provides test modes such as [General Tensile Test], [General Compression Test], [General Force Retention Test], [Three/Four-point Bending Test], [Peel Performance Test], [Tear Performance Test], [Waterproofing Membrane Test] and [Electrical Casing Test]. It includes functions such as tensile and compressive strength test (strength unit: MPa) and elongation, compressibility, etc.

• The force holding type test and pressure type test (except for the [three/four-point bending test]) come with PID speed force value double loop control.

• Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time, test data and curves are dynamically displayed with the test process.

• The test results are displayed in a variety of coordinate curves: force-time, force-deformation, and deformation-time.

• Automatic speed change: The test speed can be automatically changed according to a pre-set program.

• Qualified judgment: In addition to the automatic test results, the qualified judgment can be made according to the qualified range of the preset standard value.

• Automatic storage: Test data and curves are automatically stored in the computer, and the number of storage is unlimited.

• Test data: The test data can be queried and exported in Word or Excel format.

• Test report: The test report can be prepared in the format required by the user, and the report can be formed and printed.

• It comes with overload protection and limit protection, emergency shutdown device, and leakage protection device.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
