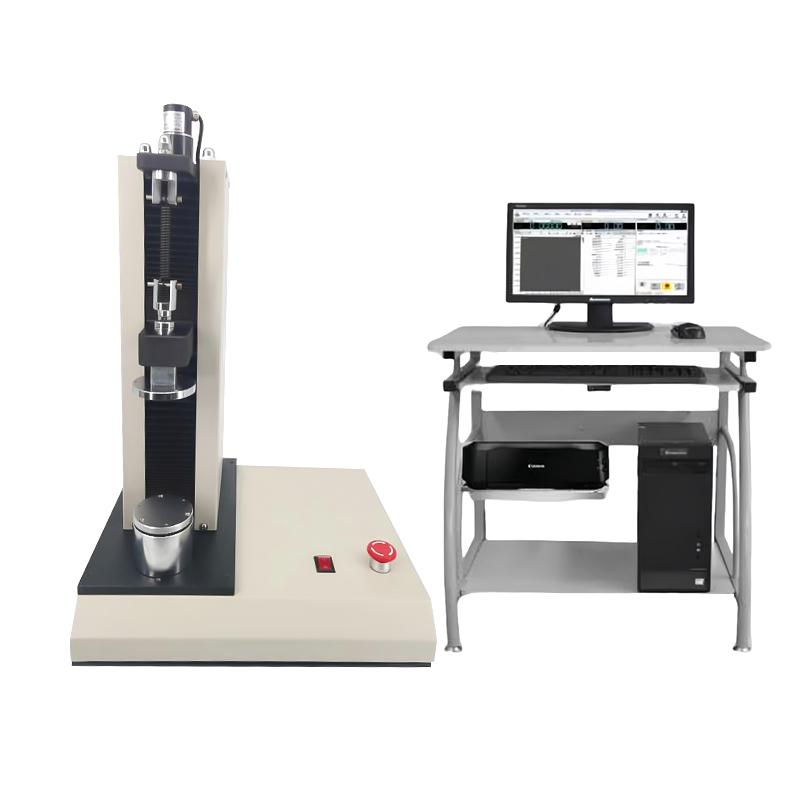

HBO ZTD-2K Desktop Microcomputer Controlled Spring Testing Machine, Range 2000N

ZTD-2K

Desktop Microcomputer Controlled Spring Testing Machine

Range 2000N, load Graduation 0.1N, Test space 220mm, with automatic reset and variable speed, qualified judgment function, Graduation can be freely set, in line with JB/T7796-2017 standard.

Introduction

This series of testing machine is a desktop spring special testing machine, the machine adopts a full digital speed regulation system with high speed regulation accuracy and stable performance and a stepper motor as the drive system, the controller as the core of the control system, and the control and data processing software with Windows as the operation interface, so as to realize the screen display of test force, test force peak, beam displacement, test deformation and test curve, and all test operations can be automatically completed by mouse on the computer.

It is mainly used for the detection of performance parameters such as deformation, tensile force, spring coefficient and other performance parameters of springs, and can also be used for related tests on various elastic specimens and other similar parts. The verification procedures of this machine conform to the JB/T7796-2017 "Spring Tension and Compression Tester" standard, which can be tested and provided according to national standards and ISO, JIS, ASTM, DIN and other international standards, and is a reliable testing equipment for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, colleges and universities, quality inspection units and other departments.

Features

• High precision, high resolution, high stability

• 6 force units N, kgf, lbf, gf, kN, tf

• There are 3 displacement units: mm, cm, and in

• The index value can be set freely: the force value can be set to 4 decimal places at most; The displacement index value can be set to up to 4 decimal places

• Four test modes: fixed height force value, fixed deformation force value, fixed force value to measure height, and fixed force value to measure deformation

• Test software: Chinese WINDOWS interface, menu prompt, mouse operation;

• Display mode: test data and curves are dynamically displayed with the test process;

• Automatic speed change: the test speed can be automatically changed according to the pre-set program;

• Automatic reset: After the test is completed, the moving beam automatically returns to the initial position;

• Qualified judgment: In addition to the automatic test results, qualified judgments can be made according to the qualified range of preset standard values;

• Automatic storage: test data and curves are automatically stored in the computer, and the number of storage is unlimited;

• Test data: The test data can be queried and exported in Word or Excel format

• Test report: The test report can be prepared in the format required by the user, and the report can be formed and printed;

• Built-in memory function, overload protection, emergency shutdown device, leakage protection device

The operation interface of the upper computer is displayed

Packing list：Desktop microcomputer controlled spring testing machine x1, pin x2, remote control x1, data cable x1, wrench x1, foot pads x4, manual x1, inspection certificate x1, warranty card x1, wooden box x1, power cord x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
