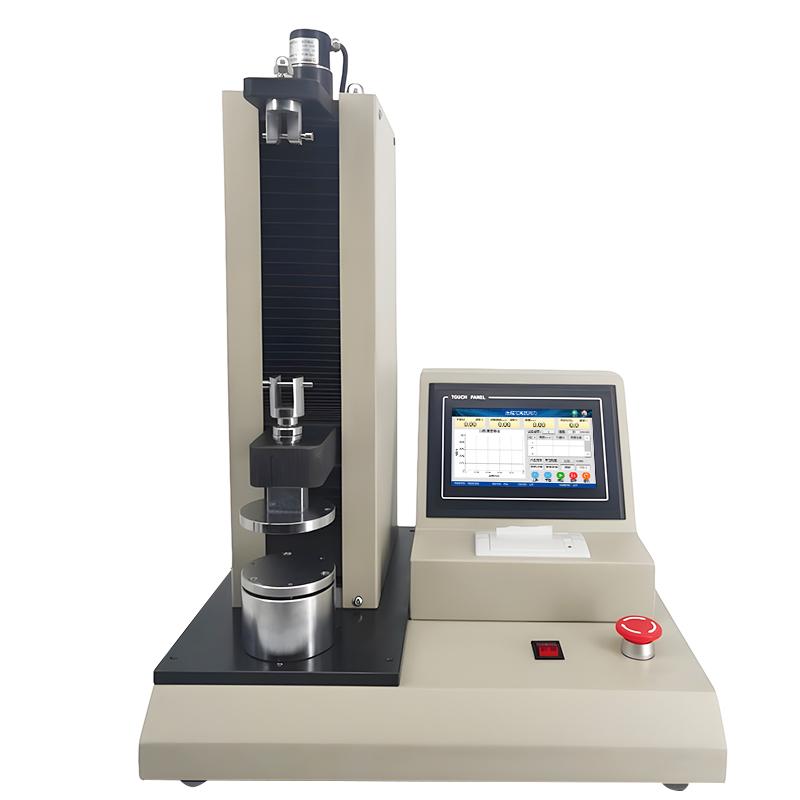

HBO ZT-1K Small Electric Spring Tension and Compression Tester, Range 1000N

ZT-1K

Desktop electric spring testing machine

Range 1000N, load Graduation 0.01N, 7-inch touch screen, high-precision, high resolution, high Stability, in line with JB/T7796-2017 standard, with its own micro printer.

Introduction

This series of testing machine is a special testing machine for desktop springs, which adopts precise automatic control and data acquisition system, which greatly improves the test accuracy and reduces the requirements for personnel operation. It is mainly used for the detection of performance parameters such as deformation, tensile force, spring coefficient and other performance parameters of springs, and can also be used for related tests on various elastic specimens and other similar parts. The verification procedures of this machine conform to the JB/T7796-2017 "Spring Tension and Compression Tester" standard, which can be tested and provided according to national standards and ISO, JIS, ASTM, DIN and other international standards, and is a reliable testing equipment for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, colleges and universities, quality inspection units and other departments.

Features

• High precision, high resolution, high stability

• 7-inch touch screen, friendly human-computer interface, simple and easy to use

• 6 force units N, kgf, lbf, gf, kN, tf

• There are 3 displacement units: mm, cm, and in

• The index value can be set freely: the force value can be set to 4 decimal places at most; The displacement index value can be set to up to 4 decimal places

• Four test modes: fixed height force value, fixed deformation force value, fixed force value to measure height, and fixed force value to measure deformation

• The test interface directly displays parameters such as force, displacement, free length/height of spring, deformation value, test time, speed, test point stiffness and average stiffness

• 10 sets of test points can be customized, and the qualified interval judgment of the corresponding test parameters can be set

• The test data is displayed in the form of curves and tables

• After the test is completed, the data bar is automatically saved, and up to 10,000 pieces of data can be saved

• The machine comes with a micro printer, which can directly print the test results

• Built-in memory function, overload protection, emergency shutdown device, leakage protection device

Touchscreen operation interface display

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
