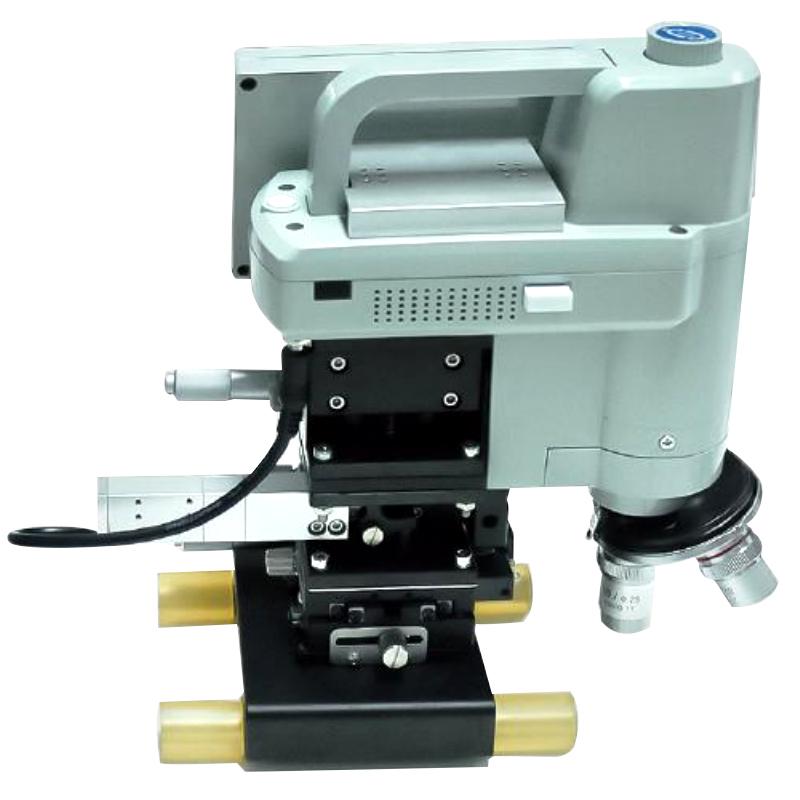

ANYTY 3R-PMGM1500A Portable high-power depth Measurement Instrument Optical inspection Trinocular Microscope 1500 times

3R-PMGM1500A

Portable depth Measurement Instrument

All-in-one XY axis focusing, 1500 times magnification, can be operated without an external computer, built-in Android Operating system, micron-level measurement, can output interface data through wifi or USB.

Introduction

This product has four significant features: easy operation, powerful functions, high-precision 3D measurement, and in-depth development based on Android system, which can be used in the laboratory or in the fieldMicroscopic teaching and collection, metallographic testing, material testing, textile printing and many other fields.

Product Advantages:

1. All-in-one design, small and portable, simple and convenient operation, powerful functions

2. A variety of magnification objectives are available, and three different objective lenses can be installed at the same time, with magnifications up to 1500x

3. 7-inch LCD touch screen

4. Based on the Android system, it supports in-depth development

5. Support diversified data processing

6. Automatically generate PDF reports, one-click archiving, and one-click sharing

7. Precision autofocus + manual focus dual selection

8. Through the wifi or USB output interface, the captured images and test results can be stored in timeManagement, data can be sent remotely for printing, and remote process quality collaborative diagnosis can be formed.

9. It can be connected to an external Bluetooth mouse to move the mouse scroll up and down for fine tuning;It can be operated not only with the touch screen buttons, but also with the help of remote control buttons

10. Seven measurement functions: The measurement function is accurate to the micron level, and supports measurement functions such as length, angle, depth, and area




11. The instrument is equipped with a microscopic scale as standard, and the built-in APP allows the user to automatically calibrate the function, and the user can calibrate the measurement data by himself when the measurement data is deviated.




Introduction to the remote control function

Instrument structure diagram

Application

It is suitable for measuring the length and width of the surface of various large workpieces and analyzing the surfaceIt can realize the data of chemical etching, electronic engraving, laser engraving, surface scratches and other graphicsIt is also possible to observe the stomatal surface of the plant surface. In aerospace, boiler special inspection,Large-scale molds, electric power, university scientific research and other industries have been widely used.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
