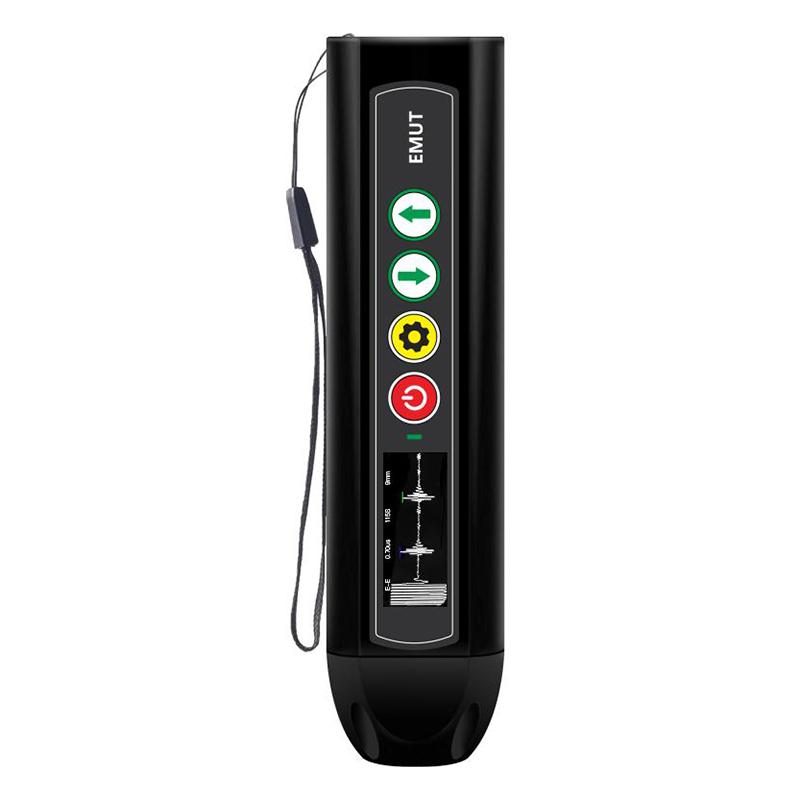

KAIRDA NDT3710S electromagnetic ultrasonic Thickness Gauge, non-contact thickness Measurement Instrument 1.0~640mm
SEMeasurement accuracy +/- 0.01mm, no acoustic coupling agent, non-contact thickness measurement, suitable for metal and magnetic material thickness measurement.
$3957.00/set
PromotionLoading...
Coupon
Model：
NDT3710S
KairDa NDT3710S Electromagnetic ultrasonic Thickness GaugeSPEC
KairDa NDT3710S Electromagnetic ultrasonic Thickness GaugeDetails
KairDa NDT3710S Electromagnetic ultrasonic Thickness GaugePacking list
- SKU
- NB047983
- sampling
- 80MSPS
- Bandwidth
- 2.5MHz～6MHz
- launch
- ±600V_400Hz_125ns
- gain
- Automatic 0~96dB, step distance 1dB
- Measurement Accuracy
- ±0.01mm
- Speed of sound
- 400～9999 m/s
- effective range
- 1.0～640 mm
- average grade
- L, M, H three gears adjustable
- distance
- 5Mm (aluminum), 4mm (carbon steel), 3mm (stainless steel)
- Measurement range
- Measurement carbon steel - 1X: 160mm 2X: 320mm 3X: 640mm
- Measurement type
- Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials
- Measurement channel
- Thin, general purpose, bar
- Measurement mode
- Single echo (I-E), double echo (E-E)
- search mode
- Frontier - Frontier, Crest - Crest, Crest - Frontier
- auxiliary feature
- Auto freeze, auto gain, auto sleep, A scan waveform display
- correction function
- Gate height adjustment, delay blanking adjustment, manual gain adjustment, Speed of sound calibrating, high temperature compensation
- communication
- RS-485 or USB2.0
- Charger
- 5V2A, standard Type-C interface
- Display
- 1.47 inch 320 × 172 IPS_LCD
- Body size
- 178.4 mm x 42 mm x 32 mm
- battery life
- 3.7V 3400mAh lithium battery, battery life for 6 hours
- Bare metal Weight
- A Metal shell: 358g B Injection molding shell: 255g C Injection molding + quick release: 289g
- probe
- With high temperature probe 800 °
NDT3710S
Electromagnetic ultrasonic Thickness Gauge
Measurement accuracy +/- 0.01mm, no acoustic coupling agent, non-contact thickness measurement, suitable for metal and magnetic material thickness measurement.
NDT3710S EMSS Thickness Gauge is an ultra-small, acoustic couplant-free, non-contact thickness Measurement Instrument for thickness measurement of metals or magnetically conductive materials.
Features
Small in size and easy to carry
The requirements for the surface of the workpiece are not high, and there is no need for grinding treatment on rough surfaces, and non-contact measurement can be realized
Coating-insensitive enables thickness measurement of coated workpieces
No acoustic couplant is required, enabling thickness measurement of high-temperature workpieces
Optional

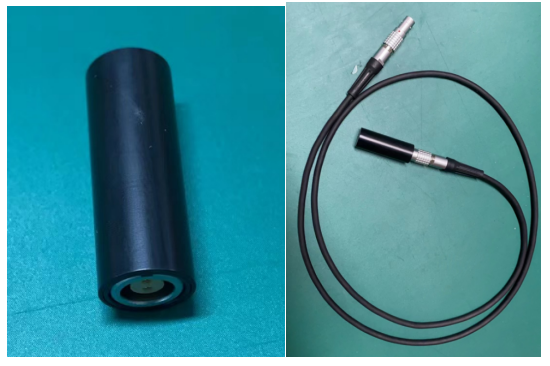

1. Small diameter probe: 4MHz, Φ13mm*36mm

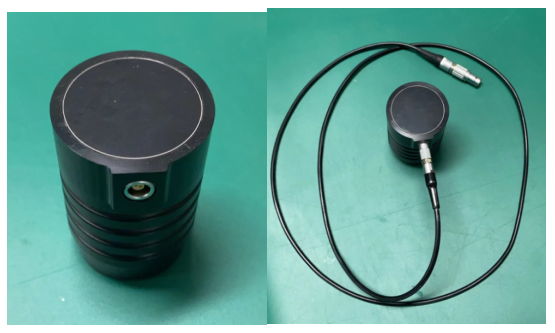

2. Large diameter probe: 4MHz, Φ40mm*60mm

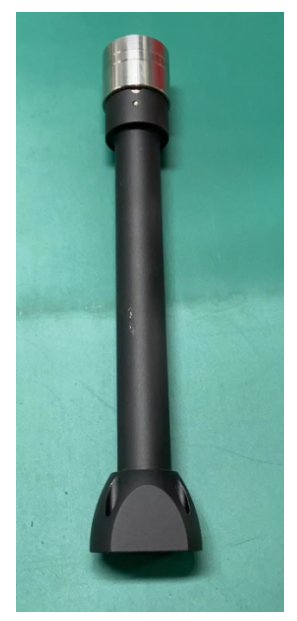

3. High temperature diameter probe: 4MHz, Φ33mm*40mm
FAQ
QWe need to regularly test the thickness of various metal pipes in a chemical plant, requiring the instrument to be portable and able to adapt to different pipe diameters. Which one is more suitable?
A
The NDT3710S electromagnetic ultrasonic thickness gauge is small in size, weighs only 255-358g, and is easy to carry. It provides three probes of small diameter, large diameter and high temperature diameter, which can cover the measurement needs of different pipe diameters from φ 13mm to φ 40mm. It is very suitable for pipeline inspection in chemical plants.
