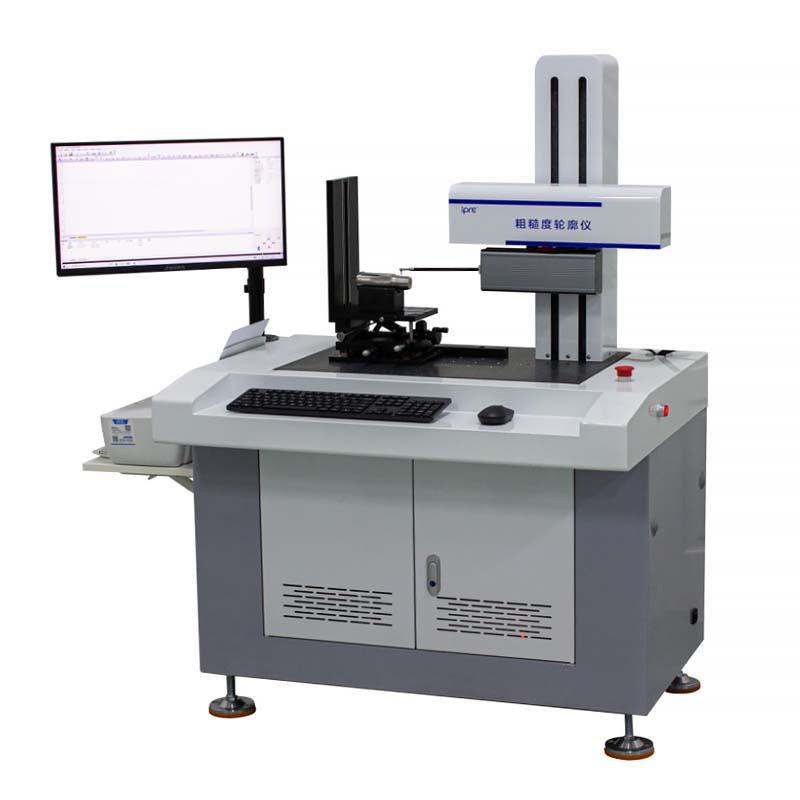

IPRE-RB150 high-precision Profile Gauge resolution 0.02μm
IPRE-RB150
Ipre IPRE-RB150 Profile GaugeSPEC
Ipre IPRE-RB150 Profile GaugeDetails
Ipre IPRE-RB150 Profile GaugePacking list
- SKU
- NB048033
- X-axis sliding linear guide moving Accuracy
- ≤ ±(1+|0.02L|)μm
- X-axis positioning grating ruler resolution
- 0.1μm
- Sensors resolution
- 0.02μm
- System resolution
- 1：65536
- Z1 linear Accuracy
- ≤±(0.8+|0.15H|)μm
- arc
- ≤±（1.2＋R/8）μm
- angle
- ≤±1′
- straightness
- ≤0.5μm/100mm
- Measurement range
- ≤150mm
- Measurement range of Z axis
- ≤ 350Mm (can be adjusted according to user request)
- Z1 Measurement range
- ≤±12mm
- Table traverse speed
- 0.05-50mm/s
- Operating Environment
- Operating temperature: 20 +/- 2 ℃ (room temperature) Humidity 20-80% RH No obvious source
- Required Power Supply
- 220V 50Hz 0.5Kw separate ground wire
- instrument size
- 980×740×1500（mm）
- instrument Weight
- About 160Kg
Features
The IPRE-RB150 is an all-in-one measuring machine: it combines surface roughness and profile measurement in one package;
High-precision grating measurement system: to ensure measurement accuracy and reliability;
Equipped with high-precision grinding grade guides: improve measurement stability and accuracy;
High-performance non-contact linear motor and roughness measurement module: for efficient and accurate measurement;
In combination with a high-performance computer control system and multifunctional software: comprehensive measurement and analysis of the surface roughness and profile of a wide range of workpieces.
Scope of application
The device is capable of measuring a wide range of mechanical part parameters, including plain line and section profile parameters, surface waviness parameters, and roughness parameters. It can accurately measure the straightness, inclination, angle treatment, circular features (such as the distance from the line to the tangent, the distance between the center of the circle, the radius of the arc, the distance from the intersection point to the center of the circle, the distance from the center of the circle to the straight line), the point and line features (such as the distance from the intersection point to the straight line, the distance from the intersection point to the center of the circle, the intersection point of two straight lines, the distance between the intersection points), logarithmic curves, groove width, groove depth, groove edge distance, groove center distance, inclination, horizontal distance, vertical distance and other shape parameters. The equipment is widely used in bearing manufacturing, machining, automobile and motorcycle manufacturing, precision hardware processing, precision tool manufacturing, mold manufacturing, tool manufacturing, optical component production and other industries.
Standard configuration
| Part name | The name of the project | |
| Mechanical part | Host instrument rack | x1 |
| Marble worktops | x1 | |
| Gimbal precision adjustment table | x1 | |
| Column system | x1 | |
| Transverse guide moving device | x1 | |
| Electrical part | Electrical control systems | x1 |
| Linear gratings | x1 | |
| Inductive sensors | x1 | |
| Computer | x1 | |
| HP inkjet printers | x1 | |
| Dedicated measurement software | x1 | |
| Standard | Standard-size balls | x1 |
| Height standard block | x2 | |
| Roughness Tester standard block | x1 | |
| Probe styli (1 axe, 1 pointed) | x2 | |
| Standard toolbox | x1 |
