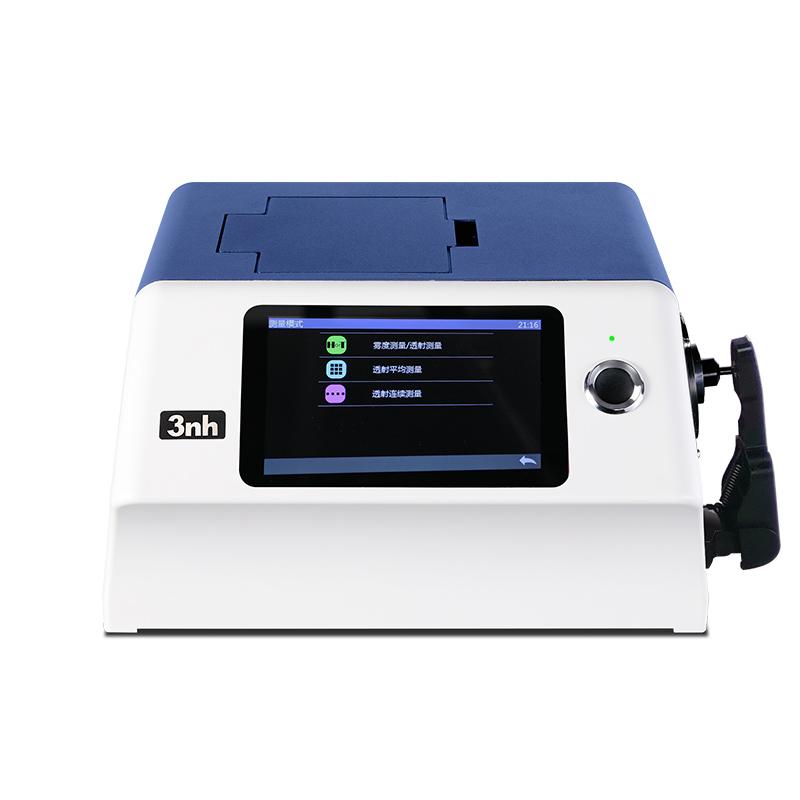

3NH YS6002-M desktop transmittance color haze meter φ 154mm

YS6002-M

Desktop Transmittance Color Haze Meter

7-Inch TFT pure color capacitive touch screen, transmissive D/0 lighting mode, φ 154mm integrating sphere size, with quality tube, sample two Measurement mode, can measure C/A/D65 Light source haze, transmittance, cobalt platinum index.

Introduction

YS6002-M desktop transmittance color haze meter is a domestic color haze meter independently developed by 3nh company with independent intellectual property rights, the instrument meets the transmission D/0 (diffuse illumination, 0 ° direction reception) geometric optical structure specified in CIE 15 (it can also achieve approximate transmission 0/0 (parallel light illumination/0 degree reception) geometric optical structure). The illumination source of the instrument is a 360~780nm composite full-spectrum LED light source (D65), and the spectrum acquisition at an interval of 10nm is realized through a precision concave grating and a 256-pixel CMOS Detector. Accurate testing of various optical indicators (haze, transmittance, chromaticity, chromatic aberration, yellowness, whiteness, cobalt-platinum index, Gardner index, etc.) in accordance with industry standards. It is widely used in haze analysis and transmittance testing in national standard pharmacopoeia color measurement, glass processing, plastic processing, film, display screen processing, packaging industry, liquid liquid analysis and other industries, and supports micro-transmission measurement.

Features of YS6002-M Desktop Color Haze Meter:

a. High hardware configuration: 7-inch TFT pure color capacitive touch screen, 20,000 storage spaces; concave grating;

b. High optical configuration and optical resolution, 154mm integrating sphere, concave grating, 256-pixel CMOS Detector, dual optical path;

c. Adopt 360~780 full-spectrum combined LED light source with high life and low power consumption (close to D65 light source spectrum);

d. Accurate testing of C/A/D65 light source haze (ASTM D1003/1044), transmittance, cobalt-platinum index and Gardner index can be easily realized;

e. Multiple measurement modes: quality tube mode, sample mode, to meet the needs of more customers;

f. Independent light source Detector and temperature sensor, always monitor the light source and environmental changes to ensure that the test data is reliable;

g. Two standard observer angles of 2/10, a variety of light source modes, a variety of surface color systems, in line with a variety of standard chromaticity indicators, to meet the needs of various customers for chromaticity testing;

h. Good human-computer interaction and test accuracy and stability;

i. The PC software has powerful function extensions;

Packing list：machine x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
