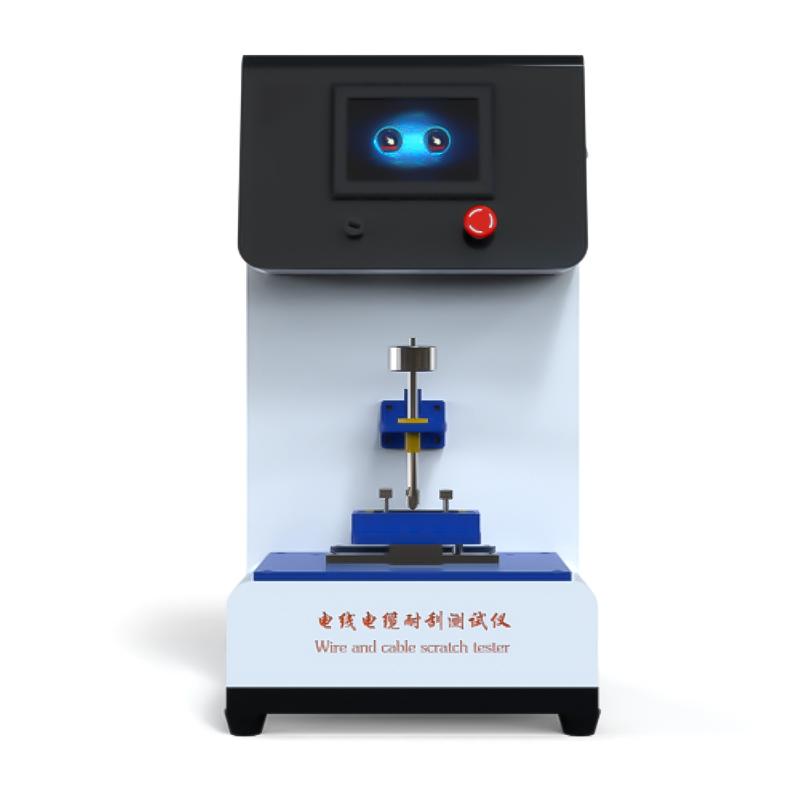

HUITAO HT-1079 Wire and cable scratch Tester, touch screen scratch Tester
SE
HT-1079
huitao HT-1079 Wire and cable resistance TesterSPEC
huitao HT-1079 Wire and cable resistance TesterDetails
huitao HT-1079 Wire and cable resistance TesterPacking list
- SKU
- NB048281
- Friction method
- reciprocating
- Frictional contact form
- line
- Meet the standard
- ISO6722、GBT25085、JIS C 3406、JASO D611
- Operating interface
- Color 7-size touch screen, Chinese and English switching
- Needle diameter
- (0.25 +/- 0.01) mm or (0.45 +/- 0.01) mm according to customer and supplier agreement
- Needle Frequency
- (55 +/- 5) cycles per minute (one cycle includes a reciprocating motion)
- Needle displacement
- （20 ± 1）mm
- Abrasion length
- (15.5 soil 1) mm
- movement type
- The design details should not affect the test results
- Mass (location, value, design details)
- The vertical force of the specimen is constant under dynamic conditions
- Sample installation force
- The specimen must not be moved during the test. If it needs to be fixed, the tension on the wire must not exceed 100 MPa (N/mm2).
- number of trials
- 0-99999999 times (can be preset and power-off memory function)
- shutdown device
- When the scraper needle wears through the insulating layer and comes into contact with the conductor, the equipment automatically stops
- Scraper needle load
- 800G, 900g, 1000g, 1100g according to the actual selection of customers
- Load Weight
- 300G, Weight 100g, 200g, 500g, 65, 105, 155, 210, 270N each can be stacked according to the actual selection of customers
- Machine size
- 420mm×450mm×680mm
- Machine Weight
- 35kg
- stop function
- Will automatically stop
- Power Supply
- AC220V、50Hz
- Scrape length
- 15.5mm
Application
Wire and cable scratch resistance test
Enforce the standard
ISO6722、GBT25085、JIS C 3406、JASO D611
Test samples
Prepare three test samples from cable samples with a length of 3m. Test samples are taken every 1m. Peel off the insulation from the cable. A test specimen consists of a thin insulating cross-section. During preparation, be careful not to deform the specimen. If the cable marking causes insulation indentation, take the first test sample through this indentation.
60V cable
The test sample was immersed in a bath for 4 hours as shown in Figure 1, and then a test Voltage of 1 kV (r.m.s.) was applied. Leave 30 minutes between the conductor and the bath. The Voltage is then increased at a rate of 500 V/s until the following values are reached: 0.5mm2 < for -3 kV (r.m.s.) cables and 0.5 mm2 > for -5 kV (r.m.s.) cables
600V cable
After completing the procedure for the 60V cable, hold 3 kV or 5 kV for another 5min
The sandpaper is worn
