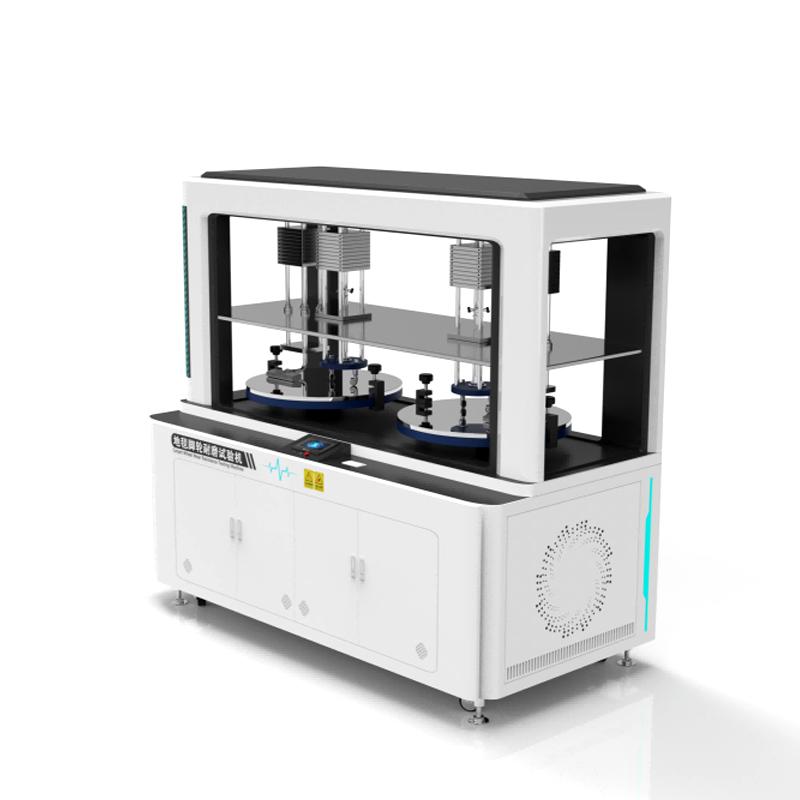

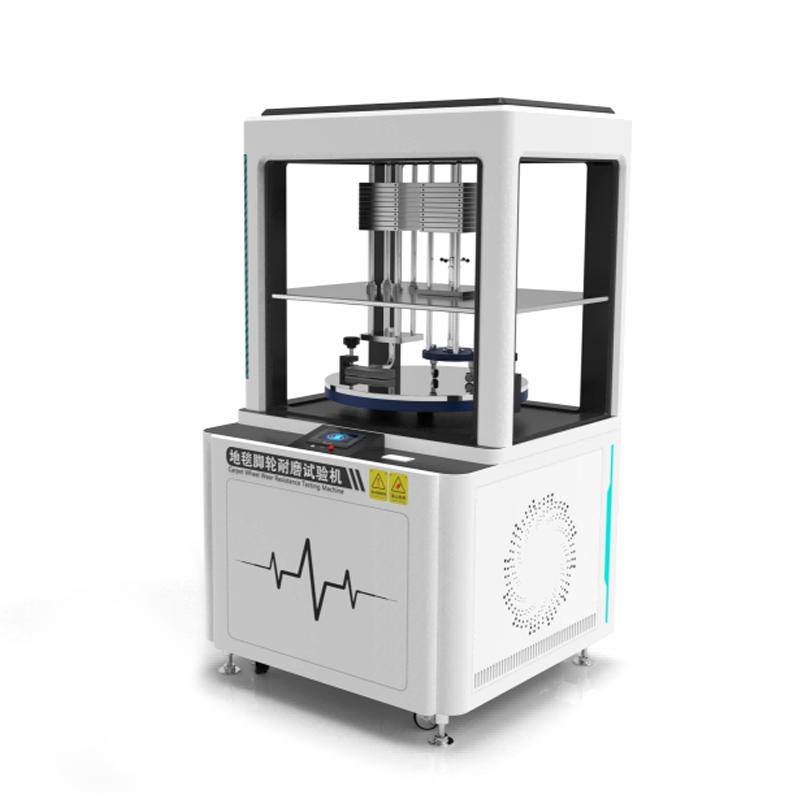

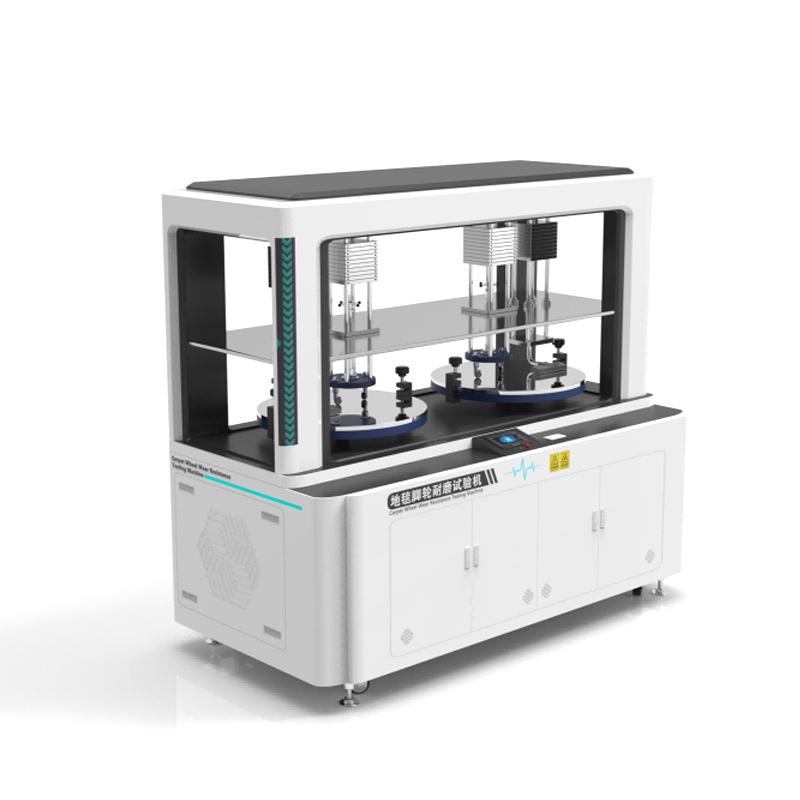

HUITAO HT-D270 Carpet Caster Wear resistance Tester meets a variety of standard foot wheel, automatic lift

HT-D270

Carpet casters Wear resistance Testers

In line with EN425 and other international standards, the foot wheel can be automatically lifted and equipped with infrared protection devices, the test table and the foot wheel share the motor to ensure the same Rotation speed, the height of the vacuum device is automatically adjusted.

Meets standards

1. EN425: Resilient and Laminate Floor Coverings-CAstoria Test, wheelchair test experiment

2. GB/T 2611-2077: (General technical requirements for testing machines)

3. GB/T 5226.1-2008: (Mechanical and electrical safety -- Mechanical and electrical equipment Part 1 General technical conditions.) ）

4. GB/T 38142-2019 Elastic, textile and laminated paving -- Wheelchair test;

5. ISO 4918 Elastic layered flooring fabric Foot wheelchair test;

6. ASTM D6962-12 Operating Procedures for Drum Chair Tester for Tufted Carpet;

7.NF P62-102 Resilient Floor Coverings Small Foot Wheelchair Trial;

8. DIN EN 985 Resilient floor coverings - Wheelchair test for small feet;

9. DIN EN 425 Elastic and lamellar floor coverings Foot wheelchair test;

10.JIS  L4406:2000 Tile carpet;

11. QB/T 2755-2005 Tile carpet.

Features

1、Meets a variety of carpet foot wheelchair load measurement standards.

2、The caster disc can be automatically raised and lowered, which reduces the danger of manual operation.

3、The open design of the sample stage allows the results to be observed directly on the test bench when the experiment is stopped.

4、The infrared protection device uses infrared diffuse reflective sensors to monitor the test area, and if there is a human body or foreign objects entering, the rotating caster disc and the test bench will automatically stop to avoid dangerous accidents.

5、The test bench and the caster disc share the same motor drive to ensure the consistency of the relative speed and steering of the two.

6、The height of the suction inlet of the vacuum cleaner is automatically adjusted according to the thickness of the carpet to ensure a good suction effect.

7、It is easy to display, operate and control via touch screen.

8. The instrument design is humanized, automated and intelligent, and easy to operate. Maintenance and repairs.

Packing list：Host X1, power cord X1, manual X1, wrench X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
