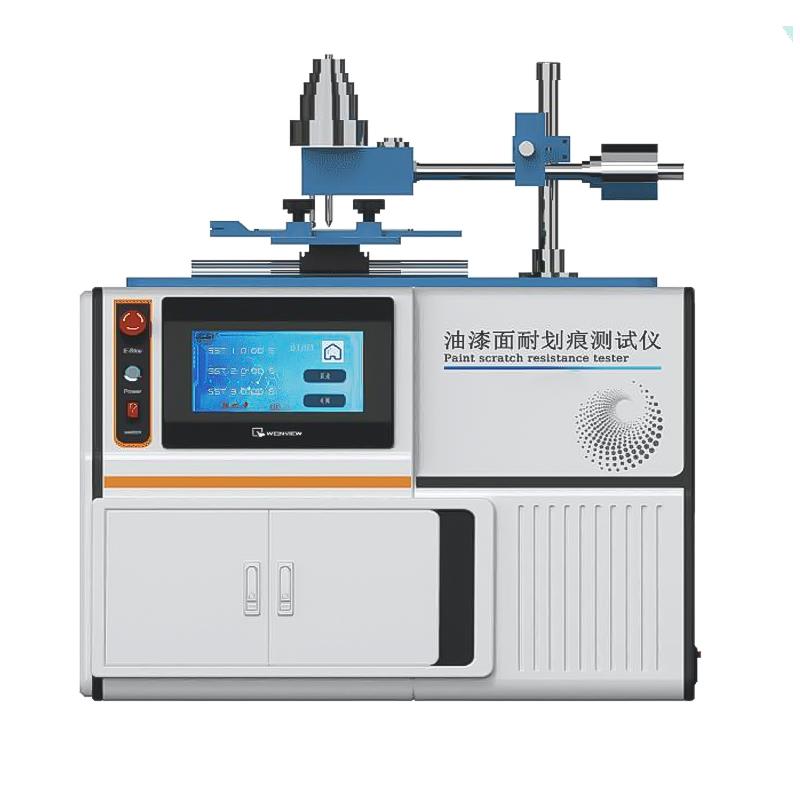

HUITAO HT-783 paints Scratching Tester coating Scratching meter
SE
HT-783
huitao HT-783 Paints Scratching TesterSPEC
huitao HT-783 Paints Scratching TesterDetails
huitao HT-783 Paints Scratching TesterPacking list
- SKU
- NB048292
- Scribing traverse speed
- 0-25Mm/s, adjustable
- Power supply Voltage
- 220V/50Hz
- Dimension
- 380 * 300 * 180mm (length * width * height)
- Control system
- PLC + touch screen
- Operating interface
- Color 7-inch touch screen, switch between Chinese and English
- Drive mode
- Stepper motor drive
- Limited itinerary
- 0-85Mm (optional Miscellaneous stroke can be customized for free)
- number of trials
- 0-9999 times, can be preset
- Device configuration
- Automatic stop function after scratch contact (electrode device)
- Contact limit angle
- 18 degrees
- Contact Spherical Transition Dimensions
- R6
- Scratch spacing
- 0-50Mm, adjustable
- test size
- About 150 * 100mm range
- work surface
- 360 ° swirl/spin
- Scratch pressure
- Standard 10N +/- 0.5N, quantity 1 piece. Optional with 20N Weight and 30N +/- 0.5N scratch pressure
- Scratch needle
- R0.25 +/- 0.02mm Optional Miscellaneous Specifications

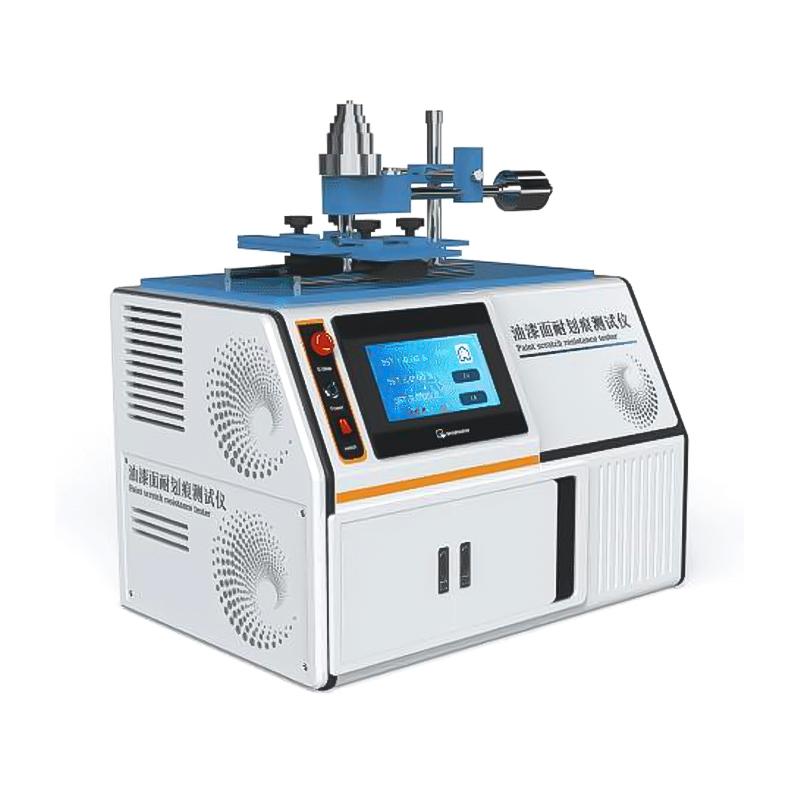

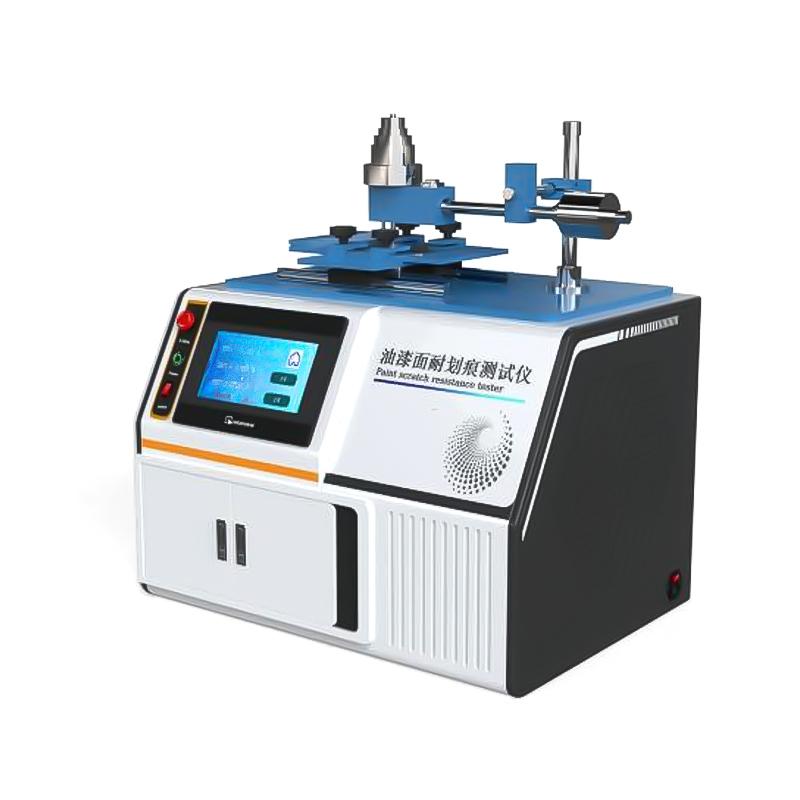

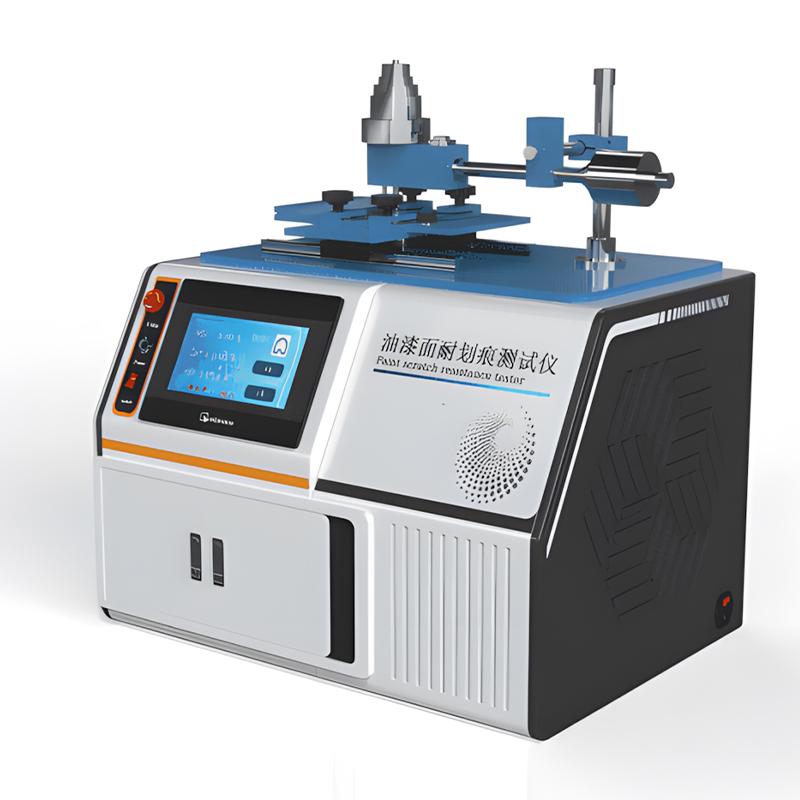

Huitao HT-783 Paint Surface Scratch Resistance Tester is specially designed to evaluate the scratch resistance of coating materials, which is suitable for automotive, furniture and construction fields. It ensures the durability of the product in real-world applications by applying scratches to the surface of the coating to test its hardness, abrasion resistance and coating adhesion.
The Tester has a high level of technology and strict quality control to ensure the accuracy and reliability of the test results. The device consists of a scratch head, a sample stage, and a moving system that uses a diamond tip or carbide blade to scratch the stage, which can be moved horizontally and vertically, and a moving system that controls the trajectory of the scratch head.
Enforce the standard
ISO 1518, BS 3900, ASTM D 5178 and ASTM D 2197 related standards.
